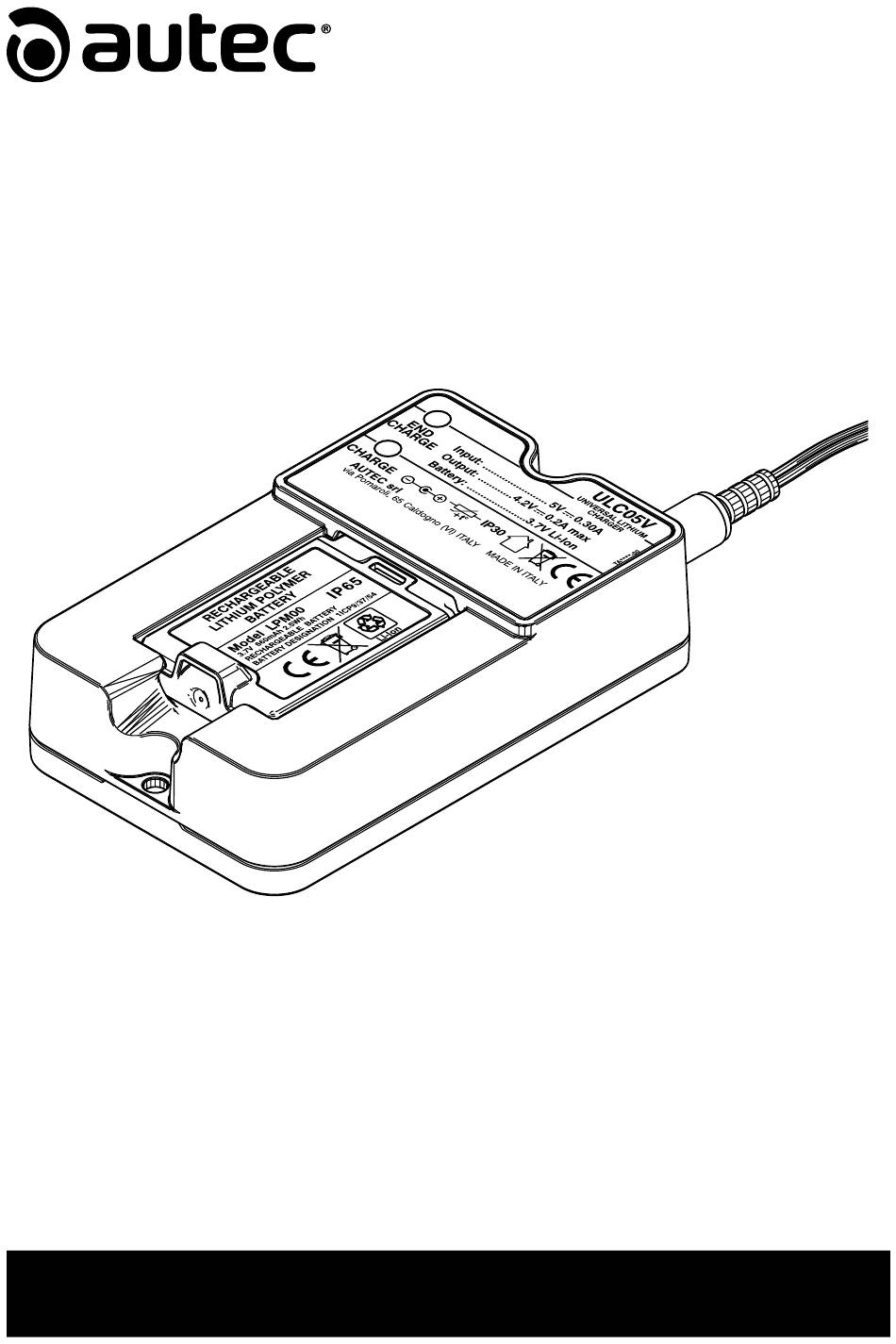

- Page 1 LIUMT000A_eng-01 Instruction Manual for the use and the maintenance of battery and battery charger Original instructions LPM00 Rechargeable battery and ULC05V Battery charger...
- Page 3 ANSI Standards. Autec is not and cannot be held responsible if the Autec battery and/or battery charger are modified or tampered with, or if non-genuine Autec components or products are used.
-
Page 4: Table Of Contents
Conformity with standards ................. 10 Contacts and useful addresses ................. 11 Warranty ......................11 Technical assistance and spare parts ..............11 LPM00 rechargeable battery ................... 12 Technical data ....................12 Plate ......................... 12 Warnings for use ....................13 First aid ......................14 Instructions for use ................... -
Page 5: Information On The Use Of Instructions
LPM00 battery and the ULC05V battery charger. These usage and maintenance instructions are to be considered as an integral part both of the Autec CCS and of the Machine, system, device or Machinery system where the CCS is installed. -
Page 6: Caption And Terminology
Caption and terminology Contact Autec if any of the instructions, symbols, warnings or images are not clear and understandable. In this Manual, the terms indicated below come from Standard “IEC 62745: Safety of machinery - Requirements for cableless control systems of machinery” and have the following meaning: - Station: remote or base single station belonging to the Autec CCS. - Page 7 - Maintenance technician: the Person, qualified technician, who carries out routine or special maintenance on the Autec battery or battery charger, to keep them whole and in working order. - Manual or Instruction Manual: this document in all its parts.
-
Page 8: Symbols
- Those who, in any capacity, work with the CCS and/or with the Machine, system, device and/ or Machinery system where an Autec CCS is installed, or that are controlled by an Autec CCS. The instructions concerning the installation and maintenance of the CCS are addressed to qualified Personnel;... -
Page 9: Instruction Storage
Manual are and remain exclusive property of Autec Srl. They cannot be reproduced and/or disseminated in any form or by any means (including the internet and photocopying) without authorisation and written consent by Autec. AUTEC LIUMT000A_eng-01... -
Page 10: Brief Product Presentation
Conformity with standards 2.2.1 Conformity of the LPM00 battery The LPM00 rechargeable battery complies with the EMC Directive (2014/30/EU) and with the following harmonised standards: EN 61000-6-2 and EN 61000-6-3. The LPM00 rechargeable battery complies with the Electromagnetic Compatibility Regulations 2016 and with the following standards: EN 61000-6-2 and EN 61000- 6-3. -
Page 11: Contacts And Useful Addresses
Contacts and useful addresses The battery and the battery charger are manufactured by Autec Srl – Via Pomaroli, 65 - 36030 Caldogno (VI) - Italy. You can find contacts for Autec, its distributors, dealers and authorized service centres on the website www.autecsafety.com. -
Page 12: Lpm00 Rechargeable Battery
LPM00 rechargeable battery The LPM00 rechargeable battery is used to power the Autec Remote stations whose battery housing is compatible. Contacts Technical data plate Technical data Type Li-ion Voltage 3.7V Capacity 660mAh Max. recharge time 4.5h Recharge temperature from +5°C to +45°C (from +41°F to +113°F) Usage temperature from -20°C to +55°C (from -4°F to +131°F) -
Page 13: Warnings For Use
Only use original Autec batteries and only recharge batteries with battery chargers and/or power supply units provided by Autec. The LPM00 battery must only be recharged through the ULC05V battery charger supplied by Autec. Never use damaged batteries (e.g. crushed, punctured, swollen or leaking batteries). -
Page 14: First Aid
The battery must be charged in the "SAFE AREA", i.e. without explosion-risk gases and/or dusts. Autec cannot be held responsible for any use that does not comply with the provisions and directions provided in the Manual, and for any damage that may result from improper, incorrect or irrational use of the battery. -
Page 15: Storage
Do not expose the battery to direct sunlight for a long time. Do not store fully charged or completely flat batteries for a long time. After long idle periods, it may be needed to carry out several battery discharge/ charge cycles to achieve the best performance. AUTEC LIUMT000A_eng-01... -
Page 16: Shipping And Transportation
The crossed-out wheeled bin marked on batteries indicates that they must be disposed of separately from household waste, in conformity with the EU Directive 2006/66/EC and its amendments, and with local regulations. LIUMT000A_eng-01 AUTEC... -
Page 17: Ulc05V Battery Charger

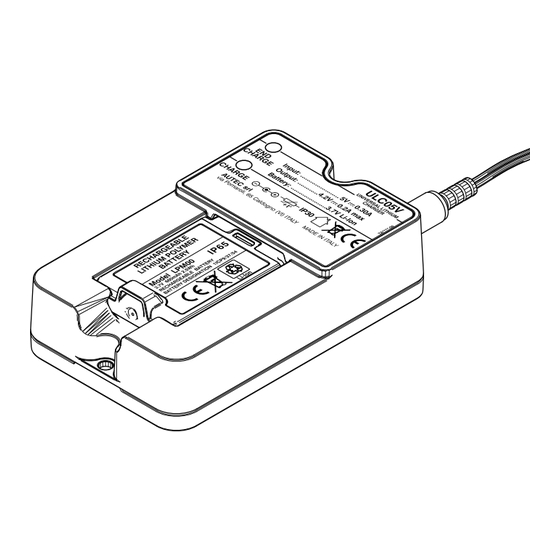

ULC05V battery charger The ULC05V battery charger is used to charge the LPM00 rechargeable battery used in Autec CCSs. Power supply cable Jack plug Socket Contacts CHARGE LED END CHARGE LED Technical data plate Technical data Power supply voltage Absorbed current 0.3A... -
Page 18: Plates
Electrical connection The ULC05V battery charger can be powered exclusively by the wall-mount power supply unit or by the car power supply unit originally provided by Autec. Never use the battery charger and the power supply unit if they are damaged. -
Page 19: Positioning
(max. 4mm/0.16In diameter). It is also possible to fix the power supply cable so that it will not be torn: when fixing the device, place the cable as shown in the figure. 105mm (4.15In) AUTEC LIUMT000A_eng-01... -
Page 20: Warnings For Use
Autec cannot be held responsible for any use that does not comply with the provisions and directions provided in the Manual, and for any damage that may result from improper, incorrect or irrational use of the battery charger and/or of the power supply unit. -
Page 21: Instructions For Use
NOTE: do not force insertion. The battery slides in with no effort and ensures the correct connection of the positive (+) and negative (-) poles only if it is inserted as shown in the picture to the side. AUTEC LIUMT000A_eng-01... -
Page 22: Disposal
Disposal When disposing of a battery charger, its components must be managed as separate waste. When disposing of a battery charger, please comply with the provisions and/or the regulations in force in the country where it is used. LIUMT000A_eng-01 AUTEC... -
Page 23: Malfunctions Signalled By The Ulc05V Battery Charger
Replace the battery charger or both, it may be assumed that the the battery. battery charger is damaged; otherwise the damage concerns one of the two batteries. AUTEC LIUMT000A_eng-01... - Page 24 Replace the battery charger or both, it may be assumed that the the battery. battery charger is damaged; otherwise the damage concerns one of the two batteries. LIUMT000A_eng-01 AUTEC...
-
Page 28: Made In Italy
Via Pomaroli, 65 - 36030 Caldogno (VI) - Italy Tel. +39 0444 901000 - Fax +39 0444 901011 info@autecsafety.com - www.autecsafety.com MADE IN ITALY...
