L50 (T2265)
L60 (T2267)
L60 Hybrid (T2268)
Robotic Vacuum Cleaner
QUICK START GUIDE
What's in the Box
EN:
❶
Waterproof Pad (T2268 only)
❷
Documents
1
❸
Charging Station and Power Adapter
❹

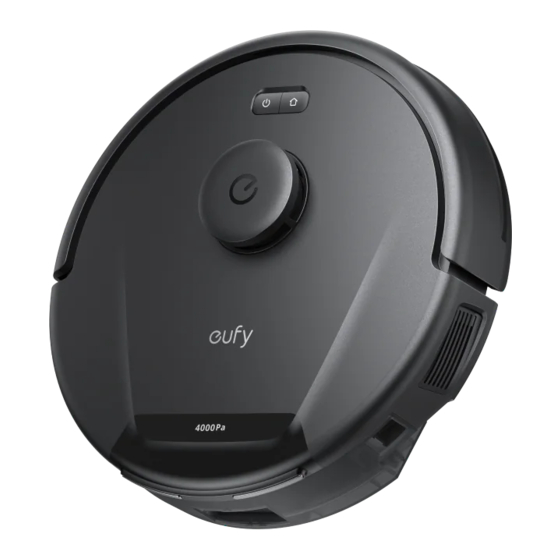

Main Unit
2
❺
Cleaning tool
ES:
❶
Almohadilla Impermeable (solo T2268)
❷
Documentos
❸
3
Estación de carga y adaptador de corriente
❹
Unidad principal
4
❺
Herramienta de limpieza
FR:
❶
5
Tampon Étanche (T2268 uniquement)
❷
Documents
❸
Station de recharge et adaptateur d'alimentation
❹
Unité principale
❺
Outil de nettoyage
*The Mopping Module has been pre-installed on the main unit of L60 Hybrid (T2268)
*El módulo de fregado está preinstalado en la unidad principal de la L60 Hybrid (T2268)
*Le module de nettoyage a été pré-installé sur l'unité principale du L60 Hybrid (T2268)
T2265/T2267/T2268 51005004281 V01
01
Overview
1
2
3
4
Dust box of L50 (T2265) & L60 (T2267):
Dust box of L60 Hybrid (T2268):
5
EN:
ES:
Cleaning start / pause button
Botón de inicio / pausa de limpieza
Recharge button
Botón de recarga
360° Lidar Navigation Sensor
Sensor de navegación Lidar de 360°
Dust box
Contenedor para polvo
Filter
Filtro
Water tank (T2268 only)
Depósito de agua (solo T2268)
Mopping Module (T2268 only)
Módulo de la mopa (solo T2268)
EN: Press and hold for 3 seconds to power on or off
Press to pause / finish the current task when working
ES: Mantenga pulsado durante 3 segundos para encender o apagar
Pulse para pausar / finalizar la tarea actual cuando esté funcionando
FR: Appuyez sur le bouton et maintenez-le enfoncé pendant 3 secondes pour allumer ou éteindre l'appareil
Appuyez sur ce bouton pour mettre en pause ou terminer la tâche en cours durant le fonctionnement
EN: Press to return RoboVac to the Charging Station
Press to pause the current task when working
Press and hold for 3 seconds to enable or disable Child Safety Lock
ES: Presione para devolver RoboVac a la estación de carga
Presione para pausar la tarea actual mientras trabaja
Mantenga presionado durante 3 segundos para habilitar o deshabilitar el bloqueo de seguridad para niños
FR: Appuyez pour retourner RoboVac à la station de charge
Appuyez pour mettre en pause la tâche en cours lorsqu'il travaille
Appuyez et maintenez enfoncé pendant 3 secondes pour activer ou désactiver le verrouillage de sécurité pour
enfants
EN: Press and hold simultaneously for 3 seconds to reset the Wi-Fi connection
+
ES: Manténgalos pulsados simultáneamente durante 3 segundos para restablecer la conexión Wi-Fi
FR: Appuyez et maintenez enfoncé simultanément pendant 3 secondes pour réinitialiser la connexion Wi-Fi
Get Started
Remove the foam blocks beside the bumper before use.
ES: Retire los bloques de espuma al lado del parachoques antes del uso.
FR: Retirez les blocs de mousse à côté du pare-chocs avant l'utilisation.
Peel off the sticker beneath the Charging Station and install it in a location that RoboVac can easily
access. It is recommended to place it against a wall and on a hard, level surface.
6
ES: Despega la etiqueta debajo de la Estación de Carga e instálala en un lugar al que RoboVac pueda acceder fácilmente. Se
recomienda colocarla contra una pared y sobre una superficie dura y nivelada.
FR: Décollez l'autocollant sous la Station de Charge et installez-le dans un endroit facilement accessible par RoboVac. Il est
recommandé de le placer contre un mur et sur une surface dure et plane.
7
FR:
Bouton de démarrage / pause de
nettoyage
Bouton de recharge
Capteur de navigation Lidar à 360°
Bac à poussières
Filtre
Réservoir d'eau sale (T2268
uniquement)
For L60 Hybrid (T2268):
Module de nettoyage (T2268
EN: Peel off the stickers on the waterproof pad and install it under the Charging Station. Make sure the waterproof pad is firmly
uniquement)
attached to the floor.
ES: Despegue las pegatinas de la almohadilla impermeable e instálela debajo de la Estación de Carga. Asegúrese de que la
almohadilla impermeable esté firmemente adherida al suelo.
FR: Décollez les autocollants sur le tampon étanche et installez-le sous la Station de Charge. Assurez-vous que le tampon
étanche est fermement fixé au sol.
1
02
2
03
