Related Manuals for EUFY CLEAN X8Pro
Summary of Contents for EUFY CLEAN X8Pro

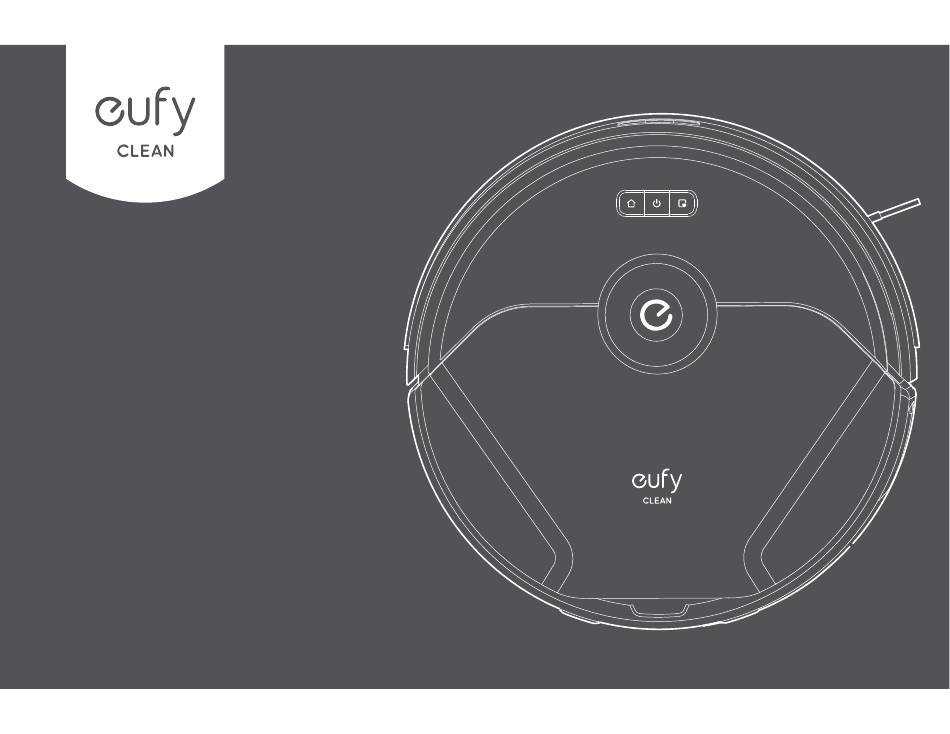

- Page 1 X8Pro Robotic Vacuum Cleaner (T2266) Robotic Vacuum Cleaner with Self-Empty Station (T2276) QUICK START GUIDE...
- Page 2 What's in the Box T2266/T2276 51005003987 V02...
- Page 3 RoboVac RoboVac RoboVac Mopping Module Módulo de la mopa Module de nettoyage Cleaning Tool Herramienta de limpieza Outil de nettoyage Documents Documentos Documents Charging Base (T2266) Base de carga (T2266) Station de recharge (T2266) Power Adapter (T2266) Adaptador de corriente (T2266) Adaptateur secteur (T2266) Waterproof Pad (T2266) Almohadilla impermeable (T2266)
- Page 4 EN:Press to return RoboVac to the Self-Empty Station / Charging Base; press to pause / finish the current task when working ES: Pulse para devolver el RoboVac a la base de autovaciado/base de carga; pulse para pausar/finalizar la tarea actual cuando esté funcionando FR: Appuyez sur ce bouton pour ramener RoboVac à...
- Page 5 • N'utilisez pas le module de nettoyage sur les tapis ou les seuil (plus de 19 mm). Si vous rencontrez un interdite ou une zone sans nettoyage par App avant de l'utiliser. eufy Clean eufy Clean Start cleaning. ES: Empiece a limpiar.
- Page 6 • Garantie limitée de 12 mois pour l'unité principale (y compris la batterie) et la base de charge. • Garantie limitée de 36 mois pour la station de vidage automatique. Ne s’applique pas aux consommables (brosse cylindrique, brosse latérale, tampons-serpillère, etc.) Customer Service support@eufy.com www.eufy.com (US/CA) +1 (800) 994 3056 (UK) +44 (0) 1604 936200...
- Page 7 X8 Pro Robotic Vacuum Cleaner (T2266) Robotic Vacuum Cleaner with Self-Empty Station (T2276) Owner's Manual...
-
Page 8: Table Of Contents
Important Tips Before Use Clean the Mopping Cloth and Water Tank Charge Your RoboVac Replace the Dust Bag (T2276 Only) Power On / Off Use Your RoboVac with the eufy Clean App Troubleshooting Select a Cleaning Mode Specifications Select a Suction Power Level... -
Page 9: About Your Robovac
About Your RoboVac What's in the Box Mopping Module Cleaning Tool Documents RoboVac Charging Base（T2266 only） （T2266 only） （T2266 only） Power Adapter Waterproof Pad Self-Empty Station（T2276 only） Power Cord（T2276 only） （T2276 only） Waterproof Pad EN 01... -
Page 10: Robovac Anatomy
RoboVac Anatomy Dust box Top cover A. Front Wi-Fi indicator Start / Pause button Filter assembly Spot cleaning button Reset Recharge button Laser distance sensor (LDS) • To restart RoboVac, open the top cover and press the Reset button with sharp-pointed objects. B. - Page 11 C. Bottom Rolling brush Swivel wheel Charging contact pins (×2) Brush guard Side brush Anti-drop sensors (×4) Wheels (×2) D. Charging Base (T2266 only) Status light Wire slot exit Power socket Power cord storage compartment Slot winding Charging contact pins EN 03...
-
Page 12: Led Indication
LED Indication E. Self-Empty Station (T2276 only) You can see the status of RoboVac from the LED indicators. Button LED Behavior Description Disposable dust bag Solid white Working normally Pulsing white (when attached to Charging Self-Empty Station / Charging Base) Power socket LED indicator Flashing red... -
Page 13: Using Your Robovac
1.02 in / 26 mm as they may cause RoboVac to malfunction. It is strongly recommended to place physical barriers or set a “No-Go” zone via the eufy Clean app in front of fireplaces and certain areas (i.e. air vents) that may cause damage to RoboVac if entered. - Page 14 RoboVac can return to the Self-Empty Station / Charging Base Install the Self-Empty Station / Charging Base in a location that normally; if not, contact us at support@eufy.com for suggestions. RoboVac can easily access. It is recommended to place it against a wall and on a hard, level surface.
-
Page 15: Charge Your Robovac
Method 2: Press on the main unit or tap the icon in the eufy Clean app to send RoboVac to the Self-Empty Station / Charging Base. Method 1: Attach RoboVac to the Self-Empty Station / Charging Base by aligning its charging pins. -
Page 16: Power On / Off
Open the app and create a user account. Press and hold Tap the “+” icon to add RoboVac to your eufy Clean account. Follow the instructions in the app to set up the Wi-Fi connection. After connecting successfully, you can control RoboVac via the app. -
Page 17: Select A Cleaning Mode
Wi-Fi instructions in the app to set up the Wi-Fi connection. Schedule Cleaning With the eufy Clean app, you can schedule RoboVac to start cleaning at a particular time. • You can set the time and customize cleaning schedules from Sunday to Saturday on the eufy Clean app. -
Page 18: Select A Suction Power Level
RoboVac intensively cleans a specific area with a size of 4.9 ft × 4.9 ft / In the eufy Clean app, select a suction power level according to your 1.5 m × 1.5 m, useful if there is a concentrated area of dust or debris. - Page 19 Install the mopping module at the bottom of RoboVac until a click is heard. • Only use the cleaning solution designated by eufy, otherwise it may affect the cleaning effect and damage the device.
-
Page 20: Use Robovac With Amazon Alexa / The Google Assistant
To control RoboVac with Amazon Alexa or the Google Assistant: For optimal performance, follow the instructions below to clean and • Open the eufy Clean app and find “Smart Integrations” in the top maintain RoboVac regularly. The cleaning and replacement frequency left. -
Page 21: Clean The Dust Box And Filter
Clean the Dust Box and Filter Recommended Cleaning and Replacement Frequency * Information stated in the following table is for reference only. The actual cleaning and replacement frequency depends on the environment of your home and your cleaning needs. RoboVac Part Cleaning Frequency Replacement Frequency Once a week (T2276... -
Page 22: Clean The Rolling Brush
Open the top cover and remove the dust box. Press down to snap the brush guard into place. Press the release button to open and empty the dust box with the cleaning tool. • Do not use a brush, hot water, or any detergent to clean the filter. -
Page 23: Clean The Sensors And Charging Pins
Clean the Swivel Wheel Carefully unwind and pull off any hair or substances that are wrapped between the main unit and the side brush. Hair or dust particles can easily get entangled in the swivel wheel. Be Clean the side brush with water. sure to clean the swivel wheel periodically and as needed. -
Page 24: Clean The Mopping Cloth And Water Tank
Clean the Mopping Cloth and Water Replace the Dust Bag (T2276 Only) Tank After each use, remove the mopping cloth and the water tank. Rinse the mopping cloth and water tank thoroughly with water. Air-dry the mopping cloth completely to prevent mildew or unpleasant smells. -
Page 25: Troubleshooting
• Clean the sensors carefully with or if you need further troubleshooting information, please visit a dry cloth. https://support.eufylife.com, go to the eufy Clean app, or contact • Restart RoboVac by turning support@eufy.com for help. • Check if the mopping module RoboVac's movements or travel paths are abnormal. - Page 26 Integrations” page in the eufy Charging Base. Clean App. RoboVac cannot return to the • Make sure the Self-Empty • Make sure you have a eufy Self-Empty Station / Charging Station / Charging Base is not Clean account and have Base.
- Page 27 Google Home app onto your smart device and initiated the • Check if there is any physical “eufy Clean” action in the Google damage on RoboVac or the Home app. For details, refer to charging pins of the Self-Empty the “Smart Integrations”...
-
Page 28: Customer Service
Specifications Customer Service Contact Us Input 1.2A 14.4V / 5,200mAh lithium Battery support@eufy.com battery Dust Box Capacity 335ml www.eufy.com Water Tank Capacity 270ml (US/CA) +1 (800) 994 3056 (UK) +44 (0) 1604 936200 (DE) +49 (0) 69 9579 7960 ) +81 03 4455 7823... - Page 29 T2266/T2276 5100500xxxx V01...
