Access Point Mounting Instructions
Published: November 8, 2010
Revised: February 07, 2019
Contents
•
•
•
•
•
•
•
•
Introduction
These mounting instructions describe the steps for mounting supported Cisco Aironet series access
points in several configurations, including on a suspended ceiling, on a hard ceiling or wall, on an
electrical or network box, and above a suspended ceiling.
Mounting Hardware
Mounting hardware for access points consists of brackets, which connect to the bottom of the access
point, and ceiling grid clips, which connect the bracket to a suspended ceiling. The bracket that you need
depends on the mounting location for the access point. The ceiling grid clip that you need depends on
the type of suspended ceiling where you need to install the access point. You don't need ceiling grid clips
if you are mounting the access point to a hard-surface ceiling or a wall.
Cisco Systems, Inc.
www.cisco.com
Introduction, page 1
Mounting Hardware, page 1
Grounding an Access Point, page 10
Securing an Access Point, page 12
Advertisement
Table of Contents
Related Manuals for Cisco AIR-CHNL-ADAPTER
Summarization of Contents
Mounting Hardware
Mounting Brackets
Describes the low-profile and universal mounting brackets available for access points.
Ceiling Grid Clips
Explains the two types of ceiling grid clips (Recessed and Flush) for suspended ceilings.
Additional Adapters for Ceiling Rails
Details the need for adapter clips for channel and beam ceiling rails, not just T-rails.
Securing an Access Point
Using a Security Cable
Details how to install a standard security cable into the access point's security slot.

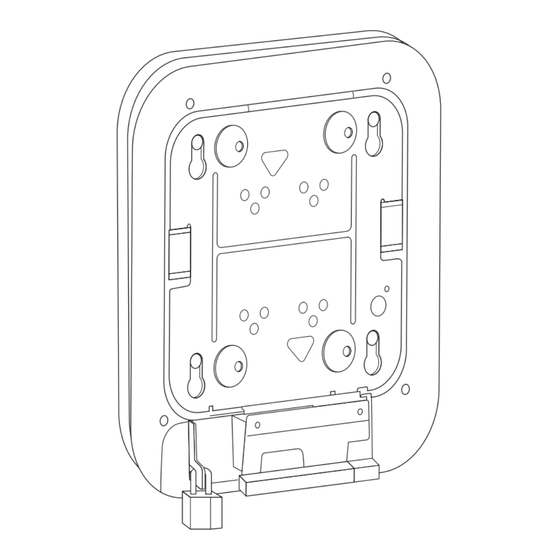

Securing to Mounting Plate
Explains how to use a padlock with the mounting bracket's security hasp for secure installation.
