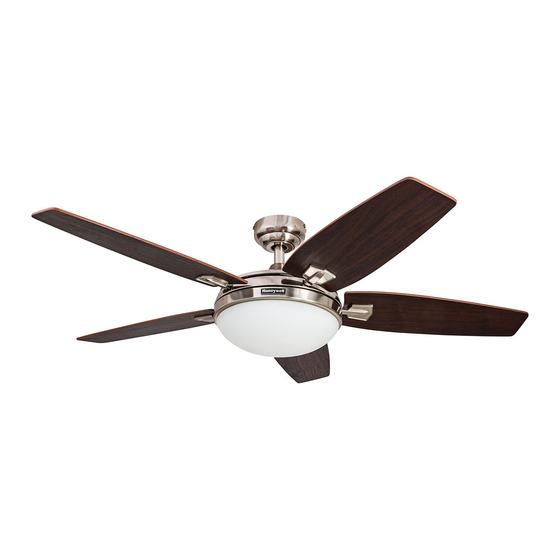

Carmel Ceiling Fan
User Manual
Read and save these instructions before use
Model #50196, 50197,
51627, 51912

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Carmel 51627 and is the answer not in the manual?

Questions and answers

Summary of Contents for Honeywell Carmel 51627

  • Page 1 Home Carmel Ceiling Fan User Manual Read and save these instructions before use Model #50196, 50197, 51627, 51912...
  • Page 2: Package Contents

    PACKAGE CONTENTS Mounting Bracket Screw (x 4) Mounting Bracket Canopy Canopy Cover Downrod Downrod Clip Downrod Pin Yoke Cover Set Screw (x 2) Yoke Blade (x 5) Motor Assembly Blade Arm (x 5) Fitter Plate Screw (x 4) Fitter Plate Light Kit Switch Housing Bulb (x 2)
  • Page 3: Safety Information

    SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install the product. • Before you begin installing the fan, disconnect the power by removing fuses or turning off the circuit breakers. • Make sure all electrical connections comply with local codes, ordinances, the National Electrical Code and ANSI/NFPA 70-199.
  • Page 4: Care And Maintenance

    SAFETY INFORMATION CAUTION: CAN ICES-003 (B) / NMB-003 (B) CAN ICES-005 (B) / NMB-005 (B) This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device (if applicable).
  • Page 5: Initial Installation

    PREPARATION Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated assembly time: 2 hours Tools required (not included): Electrical tape, Phillips Screwdriver, Safety Glasses, Step Ladder, and Wire Strippers.
  • Page 6 STANDARD OR ANGLE MOUNT INSTALLATION 1. Remove the downrod clip and downrod pin from the downrod. Then partially loosen the set screws in the yoke at the top of the motor assembly (Figure 3.1). 2. Feed the fan wires and braided cable through the yoke cover, canopy and downrod (Figure 3.2). 3.
  • Page 7: Final Installation

    SECONDARY HANGING SYSTEM INSTRUCTIONS For installation in the United States: Building codes in the U.S.A. do not require installation of a Secondary Hanging System. If desired, the braided cable can be cut and removed using wire cutters (sold separately). Skip to FINAL INSTALLATION. For installation in Canada: In compliance with building codes in Canada, installation of the Secondary Hanging System is required.
  • Page 8 FINAL INSTALLATION 4. Partially insert the blade screws along with blade washer through blade and into the blade arm. Tighten each blade screw with a Phillips screwdriver, starting with the one in the middle. Repeat this step for the remaining blades and blade arms (Figura 5.4). 5.
  • Page 9 FINAL INSTALLATION 10. Install E26-base bulbs into the sockets of the light kit. Important: When replacing the bulb, allow bulb and light kit to cool before touching (Figure 5.10). 11. Lift the glass bowl into the light kit and twist in a clockwise direction to secure (Figure 5.11). 12.
  • Page 10 OPERATING INSTRUCTIONS 1. To operate the fan using the remote, press and release the following buttons (Figure 6.1): Fan Off - Turns the power to fan off. High Speed - Turns on fan at high speed. Medium Speed - Turns on fan at medium speed. Low Speed - Turns on fan at low speed.
  • Page 11: Troubleshooting

    TROUBLESHOOTING If you experience any faults, please check the Troubleshooting section below. If a problem cannot be remedied or you are experiencing difficulty in installation, please contact Customer Service: 1-877-361-3883. Warning: Shut off the power supply before you begin any maintenance task. PROBLEM CORRECTIVE ACTION 1.
  • Page 12: Limited Lifetime Warranty

    4A000024910 4A000024910 4A000024910 HW Hardware Bag 4A000013350 4A000013360 4A000014130 4A000026200 The Honeywell Trademark is used under license from Honeywell International Inc. Honeywell International Inc. makes no representations or warranties with respect to this product. This product is manufactured for Hong Kong China Electric Appliance, LTD.
