Summary of Contents for Honeywell Acklen 51910

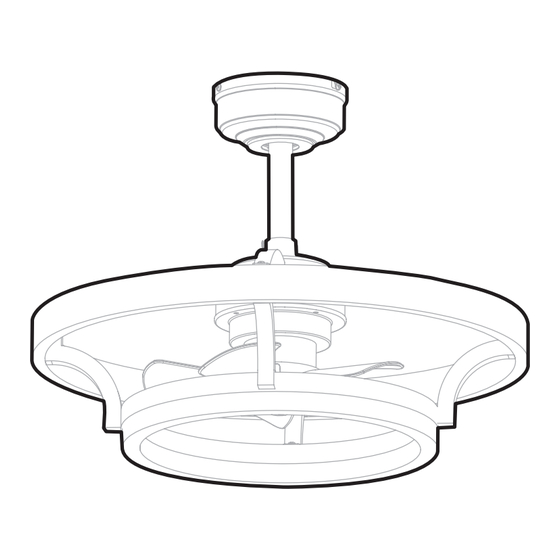

- Page 1 Home Acklen Fandelier User Manual Read and save these instructions before use Model #51910...
-
Page 2: Package Contents
PACKAGE CONTENTS Mounting Bracket Mounting Bracket Screw (x 4) Canopy Downrod Yoke Downrod Clip Downrod Pin Motor Assembly Remote Pack EN I 2... -
Page 3: Safety Information
THANK YOU Honeywell Ceiling Fans feature a collection of fans in various sizes and specifications to ensure your choice of indoor or outdoor fan delivers optimum performance for your room’s size. You can trust the quality of Honeywell Ceiling Fans to deliver maximum airflow and stylish lighting options. -
Page 4: Care And Maintenance
CARE AND MAINTENANCE Important: Shut off the main power supply before you begin any maintenance task. Do NOT use water or a damp cloth to clean the fan. At least twice each year, lower the canopy to check the downrod assembly and tighten all screws on the fan. Clean the fan assembly with a soft brush or lint-free cloth to avoid scratching the finish. -
Page 5: Initial Installation
PREPARATION Before beginning the assembly of this product, ensure all parts are present. Compare all parts with the package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated assembly time: 1 hour Tools required (not included): Phillips Screwdriver, Safety Glasses, Step Ladder, and Wire Cutters 1. - Page 6 STANDARD OR ANGLE MOUNT INSTRUCTIONS 1. Insert the downrod through the canopy. Then feed the wires from the motor assembly through the downrod (Figure 3.1). 2. Slide the downrod into the yoke of the motor assembly, align the holes, then re-install the downrod pin and downrod clip (Figure 3.2).
-
Page 7: Final Installation
FINAL INSTALLATION 1. Raise the canopy, ensure the two mounting bracket screws are aligned with the J-shaped slots in the canopy. Then turn the canopy in a clockwise direction until the mounting bracket screws are completely engaged in the J-shaped slots. Install the two previously removed mounting bracket screws in the round holes. - Page 8 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS 1. To operate the fan using the remote, press and release the following buttons (Figure 5.1): LED Indicator - Indicates the six speeds of the fan. It should illuminate when any remote button is pressed. If not, replace the DC3V, CR2032 batteries.
-
Page 9: Troubleshooting
Some states do not allow the disclaimer of implied warranties, so this disclaimer may not apply to you. The Honeywell Trademark is used under license from Honeywell International Inc. Honeywell International Inc. makes no representations or warranties with respect to this product.
