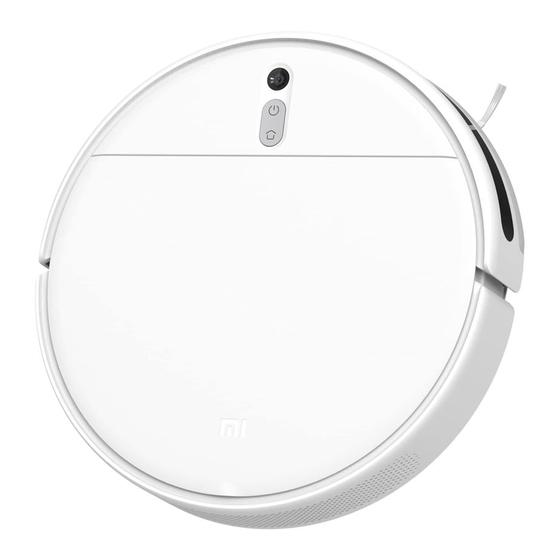

Xiaomi STYTJ03ZHM User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Mi Robot Vacuum-Mop 2 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STYTJ03ZHM and is the answer not in the manual?

Questions and answers

Related Manuals for Xiaomi STYTJ03ZHM

Summary of Contents for Xiaomi STYTJ03ZHM

  • Page 1 Mi Robot Vacuum-Mop 2 User Manual...

  • Page 2: Safety Information

    Safety Information Read this manual carefully before use, and retain it for future reference. This product is for floor cleaning in a home environment only. Do not use it outdoors, on non-floor surfaces, or in a commercial or industrial setting. Only for navigation and positioning purposes, the camera of the vacuum-mop will collect individuals in the surroundings within the range of the viewing angles when it is cleaning.
  • Page 3 manufacturer or its service agent. Do not use the vacuum-mop in an area suspended above ground level without a protective barrier. Do not use the vacuum-mop at an ambient temperature above 40°C or below 0°C or on a floor with liquids or sticky substances.

  • Page 4: Batteries And Charging

    responsible for any loss or damage arising from improper use of this product. Batteries and Charging WARNING: Do not use any third-party battery. Use only with CDZ2101 supply unit. Do not attempt to disassemble, repair, or modify the battery or charging dock on your own. Do not place the charging dock near a heat source.
  • Page 5 When removing the batteries from the product, it is better to use up the batteries and make sure your product is disconnected from power. Uninstall the screw on the bottom, then remove the cover. Unplug the battery connector, then remove the batteries. Do not damage the battery case to avoid any risk of injuries.

  • Page 6: Product Overview

    Product Overview Accessories Brush Cleaning Tool Power Cord Side Brush Mop Pad Water Tank Charging Dock Note: Illustrations of product, accessories, and user interface in the user manual are for reference purposes only. Actual product and functions may vary due to product enhancements.
  • Page 7 Vacuum-Mop Power/ Clean Button Power on/ off: Press and hold for 3 seconds Clean: Press to start cleaning after the vacuum-mop is powered on Spot/ Dock Button Press to send vacuum-mop back to charging dock Press and hold for 3 seconds to start Spot Clean mode Status Indicator White: Cleaning/ Cleanup completed/ Fully charged Blinking white: Returning to dock to charge (normal battery)

  • Page 8: Dust Compartment

    Dust Compartment Dust Compartment Clip Wi-Fi Indicator On: Wi-Fi connected Dust Compartment Cover Blinking slowly: To be connected Blinking quickly: Filter Connecting Mopping Assembly Reset Button: Press and hold for 3 seconds to restore Water Tank factory settings Boost Button Water Filling Opening Water Tank Release Button Air Outlet/Speaker...
  • Page 9 Vacuum-mop and Sensors Cliff Sensor Omnidirectional Wheel Visual Navigation Sensor Charging Contacts Optical Sensor Side Brush Collision Buffer Main Wheels Infrared Deceleration Brush Sensor Brush Cover Clips Signaling Area Charging Contacts Power Port...

  • Page 10: Before Use

    Before Use Position and Connect the Charging Dock Remove Protective Coverings Before use, remove the protective strips from both sides of the vacuum- Place the charging dock near an electrical outlet in an area with a good mop's bumper as well as the protective film on the visual navigation Wi-Fi signal.
  • Page 11 Battery Level Indicator * The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the White: Battery level default.

  • Page 12: How To Use

    Notes: Notes: · For more information on how to use the features of vacuum-mop in the Mi Home/Xiaomi · Before a cleaning task, make sure the vacuum-mop is fully charged and starts from the Home app, please refer to the instructions in the app.
  • Page 13 4. Start mopping Press the button or use the Mi Home/Xiaomi Home app to start the cleanup. The vacuum-mop will automatically recognize the mopping assembly and begin mopping and dispensing water as needed.

  • Page 14: Care And Maintenance

    Care & Maintenance Brush Omnidirectional Wheel * Weekly cleaning is recommended * Clean it as needed 1. Flip the vacuum-mop over and pinch the clips to remove the brush Wheel cover. 2. Lift the brush out of the vacuum-mop, then clean the brush bearings. Axle 3.
  • Page 15 Side Brush Sensors and Charging Contacts * Monthly cleaning is recommended Use a soft cloth to clean all senors and chraging contacts in the 1. Flip the vacuum-mop over, then gently pull out the side brush as shown in vacuum-mop: the diagram below to clean it.
  • Page 16 Dust Compartment Filter * Weekly cleaning is recommended. * Biweekly cleaning is recommended. 1. Open the vacuum-mop cover, then pinch the dust compartment clip to 1. Open the dust compartment cover at the positions marked with arrows. remove the dust compartment. 2.
  • Page 17 Mop Pad 3. Remove the filter, as illustrated, then rinse it out and lightly tap on the * After-each-use cleaning is recommended edge of the filter to remove dust and debris. Note: Do not attempt to clean the filter with a brush or finger. 1.
  • Page 18 If the vacuum-mop stops responding or cannot be turned off, press and hold down the button for 10 seconds to forcefully turn it off. Then press and Open Mi Home/Xiaomi Home app, select Mi Robot Vacuum-Mop 2 and hold the button for 3 seconds to turn the vacuum-mop on.
  • Page 19 Something is wrong with the Wi-Fi connection. Reset the Wi-Fi, then try reconnecting. Location permissions are not enabled. Please ensure your device has location permissions enabled for the Mi Home/Xiaomi Home app. The Wi-Fi signal is weak. Make sure the vacuum-mop is in an area with good Wi-Fi coverage.
  • Page 20 Problem Type Solution Check whether the battery level is sufficient. The vacuum-mop needs to have a battery level of 15% or Why doesn't the vacuum-mop carry out the scheduled cleanup? more to start a scheduled cleanup. Does the vacuum-mop consume electricity when When the vacuum-mop is left at the dock, it will consume a small amount of electricity to allow the it is left at the dock after being fully charged? battery to maintain optimal performance in sleep mode.

  • Page 21: Specifications

    Specifications Vacuum-Mop Charging Dock Model STYTJ03ZHM Model CDZ2101 Dimensions 353 × 350 × 81 mm Dimensions 130 × 126 × 93 mm Battery 14.4 V /2900 mAh (Rated Capacity) Rated Input 100-240 V ~ 50/60 Hz 0.5 A Charging Time Approx.
  • Page 22 For further information, please go to www.mi.com Manufactured for: Xiaomi Communications Co., Ltd. Manufactured by: Dreame (Tianjin) Information Technology Co., Ltd. Address: Room 2112-1-1, South District, Finance and Trade Center, No.6975 Yazhou Road, Dongjiang Bonded Port Area, Tianjin Pilot Free Trade Zone, Tianjin, China Importer: Beryko s.r.o.
