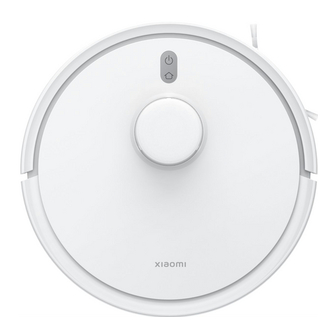

Robot Vacuum S20 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S20 and is the answer not in the manual?

Questions and answers

Jade
May 6, 2025

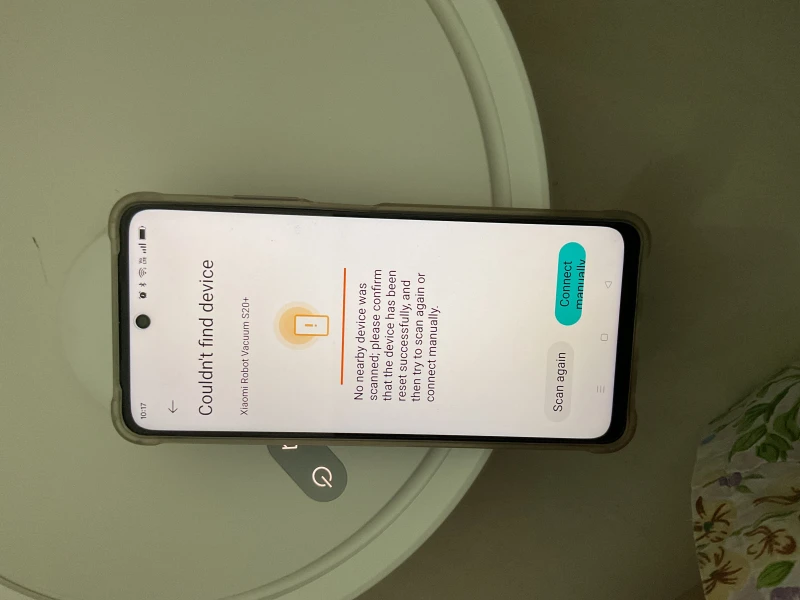

Having problem trying to connect device to phone. Have followed the instructions to place phone near the vacuum clean, and yet the message is no device found. Pls help.

User image 6819717c189e9

Summary of Contents for Xiaomi S20

  • Page 1 Robot Vacuum S20 User Manual...
  • Page 2: Safety Instructions

    Safety Instructions Read this manual carefully before use, and retain it for future reference. This product is for floor cleaning in a home environment only. Do not use it outdoors, on non-floor surfaces, or in a commercial or industrial setting. Usage Restrictions •...
  • Page 3 • Do not use the robot vacuum to clean any burning substances. • Do not pick up the robot vacuum by its laser radar cover. • Make sure the robot vacuum is turned off and the power supply is unplugged before cleaning or performing maintenance.
  • Page 4: Batteries And Charging

    • Do not allow the robot vacuum to pick up hard or sharp objects such as building materials, glass, or nails. • Do not spray any liquid into the robot vacuum. Make sure the 2-in-1 dust compartment with water tank is thoroughly dry before its reinstalling. •...
  • Page 5 • Do not attempt to disassemble, repair, or modify the battery or charging dock on your own. • Disconnect the robot vacuum from power immediately if the battery leaks. If you come into physical contact with any substance that may leak out of the battery, rinse the contact area with plenty of water and seek medical attention immediately.
  • Page 6 • The battery is to be disposed of safely. • When removing the batteries from the product, it is better to use up the batteries and make sure your product is disconnected from power. 1). Uninstall the screw on the bottom, then remove the cover. 2).
  • Page 7: Product Overview

    Product Overview Cliff Sensor Charging Dock Caster Wheel Button/Indicator Charging Contacts Battery Brush Cover Laser Distance Sensor Brush Left/Right Wheel Mop Assembly 2-in-1 Water Tank (water tank + dust compartment) Cleaning Brush Dust Compartment Cover Water Tank Lid 2-in-1 Water Tank Release Button Collision Sensor Infrared Recharge Sensor Indicator Status Descriptions...
  • Page 8: Before Use

    Charging * The app is referred to as Xiaomi Home app in Europe (except for Russia). The name of the app displayed on your device should be taken as the default. Remove the protective film from the charging dock. Place the dock against a wall and connect it to power.
  • Page 9: How To Use

    How to Use Quick mapping Starting vacuuming & mopping 1. Press and hold the 2-in-1 water tank release bu on to remove the water tank. A er the robot vacuum connects with the app for the first time, follow the Open its lid, fill it with clean water, and then close the lid.
  • Page 10 Pause 3. Insert the 2-in-1 water tank with the mop assembly into the robot vacuum as illustrated. It is properly installed when you hear a "click". Press the button When the robot vacuum is running, press any button to pause. Press the button to start vacuuming and mopping.
  • Page 11: Care And Maintenance

    Care & Maintenance Cleaning the side brush and brush Part Cleaning Replacement 1. Pull out the side brush upwards. Frequency Frequency 2. Press brush cover clips to remove the brush cover, take out the brush, and pull out the brush bearing. Side brush Every 2 weeks 3–6 months...
  • Page 12: Specifications

    Specifications Robot Vacuum Power Adapter Name Robotic Vacuum Cleaner Manufacturer Zhongshan Baolijin Electronic Co., Ltd. Model D106 Model BLJ15W200060P-VA Rated Voltage 14.4 V Input 100–240 V 50/60 Hz 0.5 A Rated Power 45 W Output 20.0 V 0.6 A 12.0 W Charging Voltage 20 V Average Active Efficiency...
  • Page 13: Regulatory Compliance Information

    Product. 2. REMEDIES If a hardware defect is found and a valid claim is received by Xiaomi within the Warranty Period, Xiaomi will either (1) repair the product at no charge, (2) replace the product, or (3) refund the Product, excluding potential shipping costs.
  • Page 14 6. DAMAGE LIMITATION Product manufactured by or for Xiaomi and identifiable by the trademarks, trade Except to the extent prohibited by applicable law, Xiaomi shall not be liable for any name or "Xiaomi" or "Mi" logo. damages caused by accidents, indirect, special or consequential damages, The Limited Warranty does not apply to any (a) Damage due to acts of nature including but not limited to loss of profits, revenue or data, damages resulting...
  • Page 15 For further information, please go to www.mi.com Manufactured for: Xiaomi Communications Co., Ltd. Manufactured by: Shenzhen PICEA Robotics Co., Ltd. Address: A1802, Kerun Building, Intersection of Kelian Road and Tongren Road, Tianliao Community, Yutang Street, Guangming District, Shenzhen, Guangdong Province, P.R. China For further details, please scan the QR code to obtain the e-manual.

This manual is also suitable for:

D106
