3M 701-M Operator's Manual

3M Test Kits for Static Control Surfaces
™

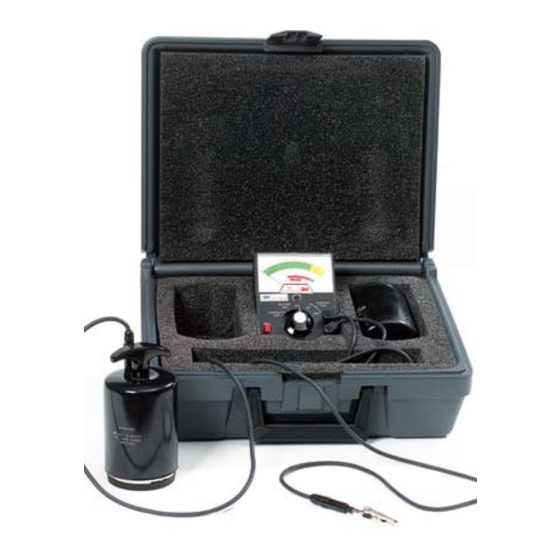

The 3M Test Kit 701 contains a lightweight, user-friendly megohmmeter
plus all of the components needed to make testing mats and other
surfaces simple and accurate. All of the items are packaged in a
foam-lined carrying case.
The kit meets the intent of ANSI/ESD Standard 4.1, "Worksurfaces –
Resistive Characterization," ANSI/ESD Standard 7.1, "Floor Materials
– Resistive Characterization of Materials," and MIL-PRF-87893,
"Workstation, Electrostatic Discharge (ESD) Control," for auditing
purposes. The meter has separate scales and test settings for measuring
surface-to-ground and surface-to-surface resistance at two prescribed
test voltages (10 V and 100 V), and system continuity. The easy-to-read
scales are both color-coded and numbered.
3M ™ Test Kit 701
Floor Mats/Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 36
Dissipative Rubber Mats/Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 36
Static Conductive Floor Tile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 112
Distributed by: All-Spec Industries
Wilmington, NC
Test Equipment
Product No.
701
701-L
701-M
701-W
Test Kit Properties
Product Item
Kit
Weight:
Case Dimensions:
Case Material:
Case Color:
Meter
Weight:
Dimensions:
Resistance Ranges:
Continuity Test Mode
10 V Surface Test Mode
100 V Surface Test Mode
Weights
2 Test Weights:
Dimensions:
Pad Material:
Pad Dimensions:
Leads
Length:
Wire Size:
Insulation:
Diameter:
Power
Batteries (2):
Supply
Ph: 800-537-0351
Fx: 800-379-9903
Description
Test Kit for Static Control Surfaces
(Certified and non-certified)
Kit contains:
• 1 Megohmmeter 12 oz. (340 g)
1.8 H x 3.3 W x 4.6 in. L (4.57 x 8.38 x 11.68 cm)
• 2 Test Weights, 5 lbs. (2.27 kg) each
• 2 Test Leads, 10 ft. (3 m) each
• 1 Insulated Bulldog Clip
• 1 Alligator Clip
• 1 Continuity Test Plate
• 2 Batteries (22.5 V and 1.5 V)
• 1 Operator's Manual
• 1 Molded Carrying Case
Test Leads
Megohmmeter only
5 lb. (2.27 kg) Test Weight
Typical Properties
14 lb. (6.35 kg)
5.125 H x 10 W x 13.5 in. L
(13.02 x 25.4 x 34.29 cm)
Blow-molded, high density
polyethylene with foam inserts
Gray
12 oz. (0.34 kg)
1.8 H x 3.3 W x 4.6 in. L
(4.57 x 8.38 x 11.68 cm)
0 – 10M ohm (internal R=500 K ohm)
10 – 10 ohm (internal R=2 M ohm)
5 11
10 – 10 ohm (internal R=2 M ohm)
5 11
5 lb. (2.27 kg) each
Diameter – 2.5 in. (6.35 cm)
Height – 5.06 in. (12.85 cm);
includes handle and pad
Conductive silicone rubber
Diameter – 2.5 in. (6.35 cm)
Thickness – 0.25 in. (0.64 cm)
10 ft. (3.05 m)
18 gauge
Silicone rubber
0.125 in. (0.32 cm)
22.5 volt (Eveready
™
equivalent) and 1.5 volt (AA).
