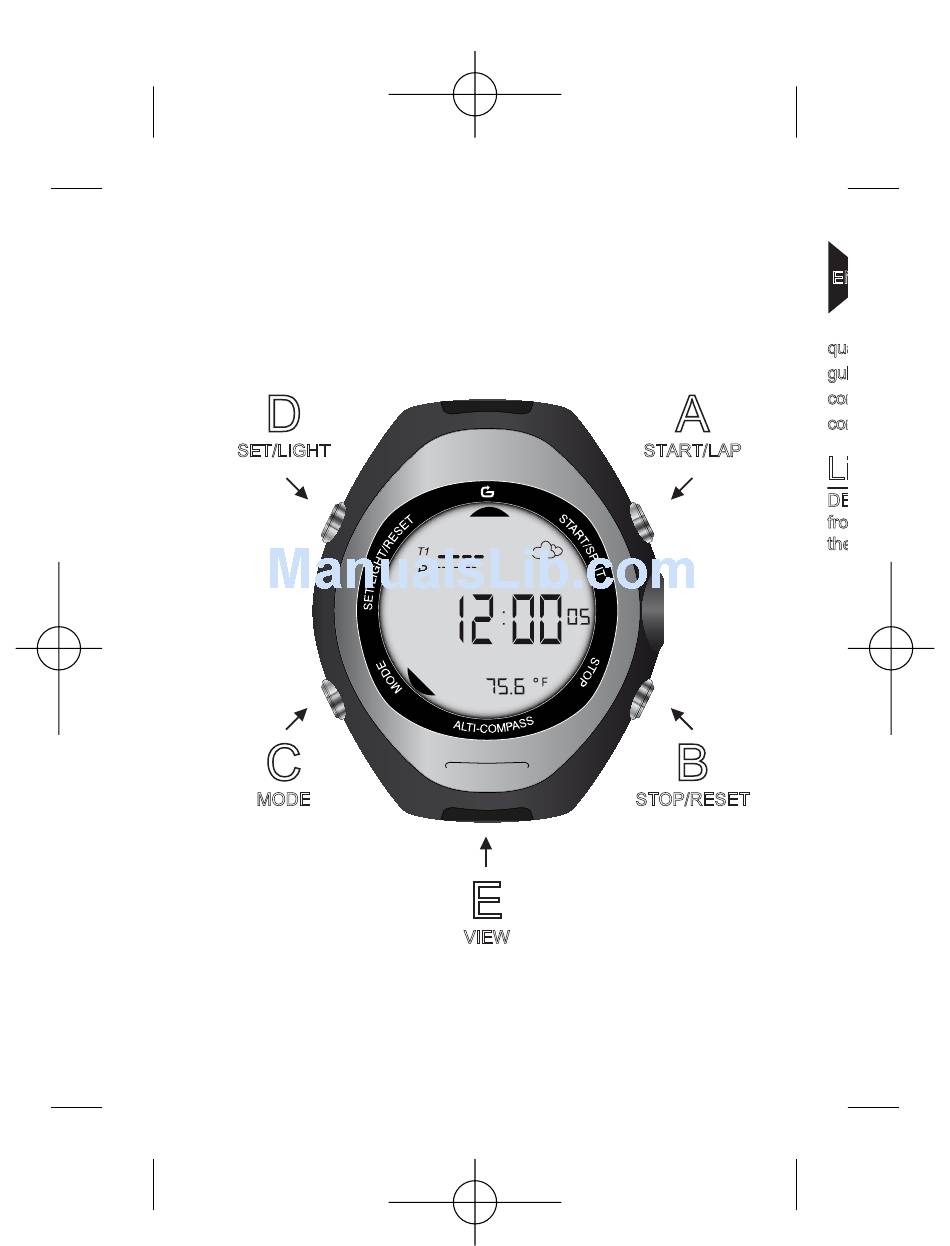

2MW500EN.qxd:NOTICE_MW500_2
D
SET/LIGHT
C
MODE
26
STOP/RESET
E
VIEW
11/12/07
A
START/LAP
B
12:14
EN
qua
gui
com
con
Li
DE
fro
the
• T
fr
fr
• T
o
• T
g
a
c
in
in
• D
c
(d
• T
w

Advertisement

Table of Contents
loading

Related Manuals for GEONAUTE MW500

Summary of Contents for GEONAUTE MW500

  • Page 1 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 SET/LIGHT START/LAP • T • T • T MODE STOP/RESET • D • T VIEW...

  • Page 2: Limited Warranty

    2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 Congratulations on purchasing a Géonaute MW500 watch. This watch will go everywhere with you - in leisure and sports activities or simply in your day-to-day life. Shock-resistant, waterproof, accurate and practical, it will soon impress you with its versatility and quality.
  • Page 3 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 Use • Precautions for use Normal conditions of use: This watch is designed to be worn on your wrist for mountain sports (hiking, mountain-biking, etc) It is for telling the time and measuring lap times, using the stopwatch function. It features several measurement instruments (barometer, altimeter, compass) to orient yourself and describe outdoor environmental conditions.

  • Page 4: First Use

    2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 First use Batteries: This watch uses a CR2032 battery. Please note: if you note that the display is flashing unusually or doesn’t appear to be working correctly, this usually means that the watch battery is low and needs to be replaced.
  • Page 5 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 1 Local time/date mode 2 Compass Mode (COMP) 3 Barometer Mode (BARO) 4 Altimeter Mode (ALTI) 5 Altimeter Data Mode (ALTI DATA) • Y 6 Stopwatch Mode (CHRO) • Y 7 Split Time Data Mode (CHRO DATA) 8 Alarm Mode (ALRM) Please note: Since the time mode (TIME) is the most regularly used mode, we have provided a shortcut in order to select it more quickly:...
  • Page 6 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 A : change the time display mode B : change the time zone C : go to compass mode D : electroluminescence E : change the time display mode Using the time mode This mode provides information relating to the time and date, and optionally displays weather conditions and the temperature.
  • Page 7 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 Adjusting the time and date In time mode Select the time zone to be set as indicated above. Check that T1 or T2 is displayed. Hold down D: you enter adjustment mode. A brief message is displayed (ADJUST HOLD) and the hour flashes (HOUR). Press A (+) or B (-) to increase or decrease the hour value.
  • Page 8 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 2 - Compass Mode SOUTH Azimuth with indicator indicated value Azimuth value will NORTH indicator A : start measuring B : inactive C : go to barometer mode D : calibrating the compass E : inactive Using the compass: In compass mode, the word COMP is displayed for several seconds.
  • Page 9 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 There are three types of indication: Calculated • Graphic North and South direction directions (in the form of LCD segments on the outside of the display). One segment: indicates North. Three segments: indicate South. • The azimuth in degrees corresponding to the axis of the bracelet.
  • Page 10 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 Calibrating the compass: Hold the compass horizontally. Hold down D: CAL HOLD is displayed, then the word CAL. Turn the watch horizontally through 720 degrees (two full rotations). Each rotation should last fifteen seconds. Press D to confirm that the rotation is over and to enter the declination value (see the table below).
  • Page 11 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 3 - Barometer Mode/BARO Weather conditions Graphic barometric changes Sea level pressure Local pressure A : change display (bottom line) B : change the units of pressure C : go to Altimeter mode D : adjustment mode E : change display (bottom line) In barometer mode the watch displays weather forecast symbols and a measurement of the current local and sea level atmospheric...
  • Page 12 The forecasts given by the watch should be taken as an indication. If you have to make an important or dangerous excursion (sea, mountains), confirm the MW500 predictions by contacting your local meteorological institute. Furthermore, at sea and in the mountains, climatic conditions can change extremely rapidly, creating life-threatening conditions.

  • Page 13: Temperature Display

    2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 On the middle line: The pressure displayed in the large digits on the middle line is the sea level pressure in current conditions. This system ensures a continuity of trends, even if your altitude has varied. On the bottom line: Three displays are possible.
  • Page 14 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 Calibrating measurements. The watch measures altitude and atmospheric pressure using the same sensor. It cannot therefore determine whether the atmospheric pressure changes because of a change in altitude or changed climatic conditions. You therefore need to calibrate the barometer to the altitude of the mea- surement site.

  • Page 15: Altimeter Mode

    2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 4 - Altimeter Mode Cumulative altitude difference or altitude graph Local altitude Time A : display cumulative altitude difference and max altitude/waypoint storage B : adjust the unit C : go to Alti data mode D : electroluminescence E : inactive In this mode the watch measures and displays local altitude in relation to sea level.
  • Page 16 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 at around + or - 8m). You therefore need to put the measured value into perspective yourself. Altitude display On the top line: Graph of variations in altitude over the last six hours. One dash corresponds to a time period of 15 minutes. The range of the graph is calculated according to the variations in maximum altitude.
  • Page 17 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 • Measuring maximum altitude: the watch displays the maximum altitude reached by the user since the device was last started. The positive altitude difference and maximum altitude are displayed when entering altitude mode. The values scroll across the top line: ACC xxx MAX xxx.
  • Page 18 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 5 - “WAYPOINT RECALL/ALTI DATA” mode Recording number Recording date Recording time Recorded altitude A : bottom-up navigation B : top-down navigation C : go to stopwatch mode D : electroluminescence/delete data E : display values In this mode the waypoints stored in altimeter mode can be recalled. Each waypoint is given an sequence number (DATA xx) and features the following information: The watch can store up to 20 waypoints.

  • Page 19: Stopwatch Mode

    2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 Press E to display the stored altitude or wait for the automatic alternate display. To delete the stored data, hold down D. The message “CLEAR ALL HOLD” appears and indicates that the data is about to be deleted. Continue to hold down D to delete the data.
  • Page 20 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 In this mode the watch has a stopwatch which can store up to 100 split times. These split times can be stored for later use in 30 sessions called “runs”. The “CHRO” information is displayed for three seconds when you enter this mode.
  • Page 21 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 7 - Stopwatch memory recall mode/CHRONO DATA Session number (RUN) Lap time (LAP) Date Split time (SPLIT) A : Scroll through split times B : Scroll through sessions C : Go to alarm mode D : electroluminescence/delete E : inactive The first screen features the session number and the session date.
  • Page 22 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 To delete all sessions: Hold down D until CLEAR HOLD ALL is displayed. Hold down D until --- is displayed 8 - Alarm/buzzer Mode Alarm number The time in which the alarm is set Alarm time Alarm indicator ON/OFF activate/deactivate the alarm A : activate/deactivate the alarm...
  • Page 23 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 Setting the alarm and the buzzer: Hold down D for three seconds: the hours begin to flash. Press A (+) or B (-) to increase or decrease the hours. Press C and the minutes flash. Press A (+) or B (-) to increase or decrease the minutes. Press C and TIME1 or TIME2 flashes Press A (+) or B (-) to match the alarm to time T! or time zone T2.
  • Page 24 2MW500EN.qxd:NOTICE_MW500_2 11/12/07 12:14 Contact So that we continue to develop improved products which meet your needs, we shall be pleased to receive your feedback with regard to the quality, functionality and usage of our products. • In France, you can contact the customer relations centre on: 0810 080808 (price of a local call) •...
