Quick Links
ONgo' up 600
EN

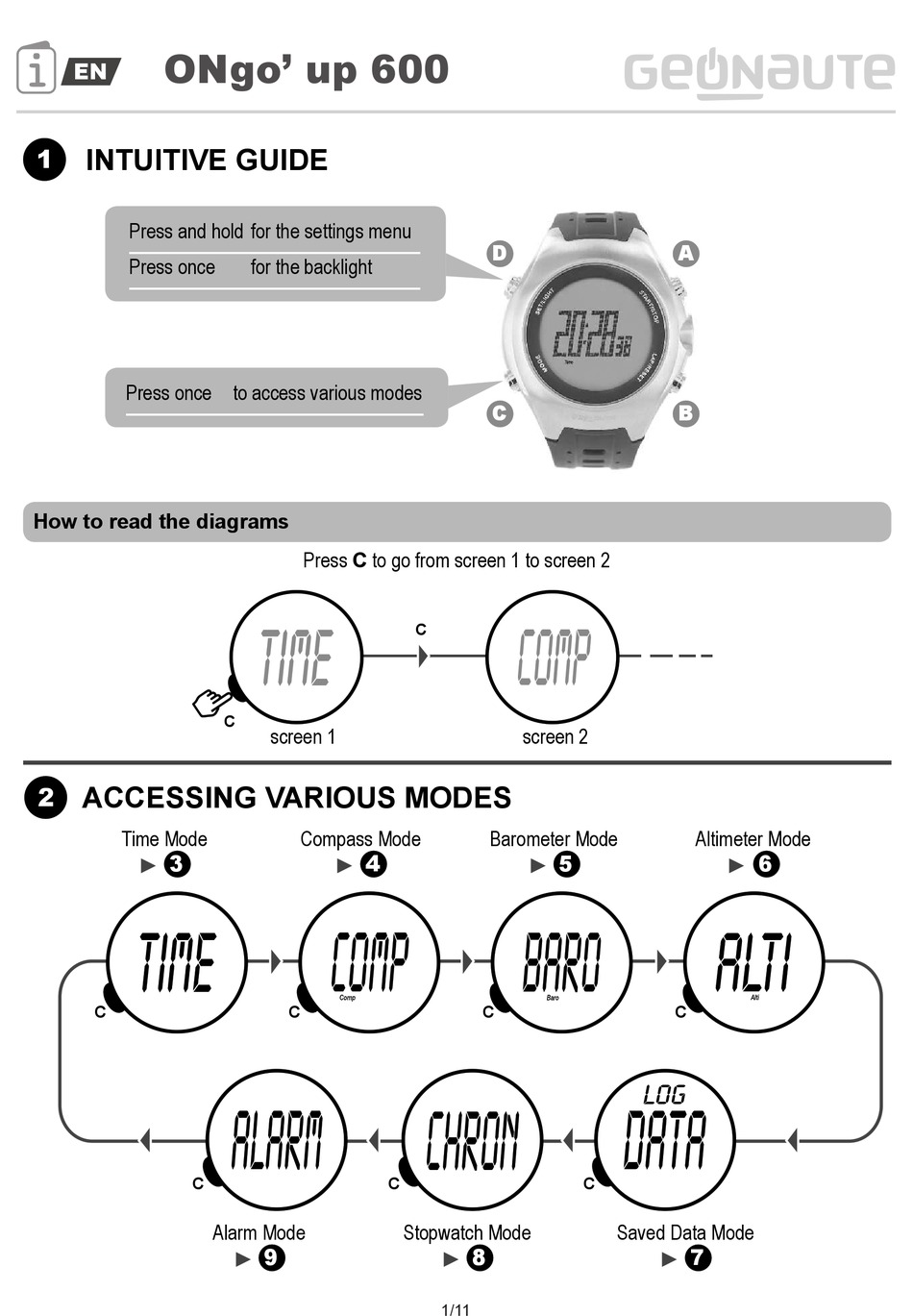

INTUITIVE GUIDE
1
Press and hold for the settings menu
Press once
Press once to access various modes
How to read the diagrams
ACCESSING VARIOUS MODES
2
Time Mode
3
►
for the backlight
Press C to go from screen 1 to screen 2
screen 1
Compass Mode
4
►
Alarm Mode
9
►
D
C
screen 2
Barometer Mode
5
►
Stopwatch Mode
8
►
1/11
A
B
Altimeter Mode
►
Saved Data Mode
7
►
6
1
Advertisement
Related Manuals for GEONAUTE oxylane ONgo’ up 600
Summary of Contents for GEONAUTE oxylane ONgo’ up 600
- Page 1 ONgo’ up 600 INTUITIVE GUIDE Press and hold for the settings menu Press once for the backlight Press once to access various modes How to read the diagrams Press C to go from screen 1 to screen 2 screen 1 screen 2 ACCESSING VARIOUS MODES...
-
Page 2: Time Mode
TIME MODE Changing the time zone and display date The watch can display 2 different time zones. They are labelled T1 and T2. ■ Press A (for 3 sec) to choose which time zone to display permanently. (3 sec) ... -
Page 3: Compass Mode
COMPASS MODE Using the compass Needle direction The compass needle points towards 12.00 on the watch Note: The number displayed in degrees Cardinal direction (azimuth) includes declination correction Azimut (correction between geographical north and magnetic north). Note: The compass feature consumes a great deal of energy. The compass only functions for about ten seconds at a time before the display shuts off automatically (... -
Page 4: Barometer Mode
(3 sec) (30 sec) Press D to exit the calibration menu. Note: When using your watch for the fi rst time or when reinitialising it, [COMP] mode lets you calibrate the digital compass directly. - Page 5 Calibrating atmospheric pressure at sea level The watch uses the same sensor to measure altitude and atmospheric pressure. Thus it cannot determine whether atmospheric pressure is shifting due to a change in altitude or a change in weather condition. You will need to calibrate the barometer or altimeter. Press and hold D until [SET CURRENT WEATHER] appears on the screen.
-
Page 6: Altimeter Mode
Note: The watch's weather forecasts are based on barometric measurements and are estimated for the next 6 hours. They will not be reliable unless the barometer has been working properly for at least 12 hours. ALTIMETER MODE In this mode, the watch measures and displays instantaneous altitude. Altitude is shown in metres (M) or feet (FT). - Page 7 Calibrating altitude Press and hold D until [SET HOLD] stops blinking and [CURRENT] starts blinking. Press C to confi rm the local altitude setting. Press A(+) to increase or B() to decrease the value. Once the altitude is set, press C to return to the main altimeter settings. ...
- Page 8 SAVED DATA MODE In this mode, you can view data saved in Altimeter Mode. Altitude data are displayed on 5 separate screens: ■ Positive (ASC) and negative (DSC) totals. ■ Average ascending and descending speeds (AVG.RATE). ■ Maximum (MAX) and minimum (MIN) altitude. ■...
- Page 9 Using the stopwatch Split time number (LAP) Time elapsed since last LAP Total time for this LAP To start the stopwatch, press A. To pause or stop the stopwatch, press A. To take a split time, press B. ...
- Page 10 Setting the alarm (3 sec) Setting the sound Alarm indicator ON = alarm on OFF = alarm off Information Limited Warranty OXYLANE guarantees the original buyer that this watch is free of defects due to materials or manufacture for two years starting from the date of purchase.
- Page 11 The product and batteries must be recycled at a collection point at end of life. Contact www.geonaute.com OXYLANE 4 Boulevard de Mons – BP 299 59665 Villeneuve d’Ascq cedex – France...
