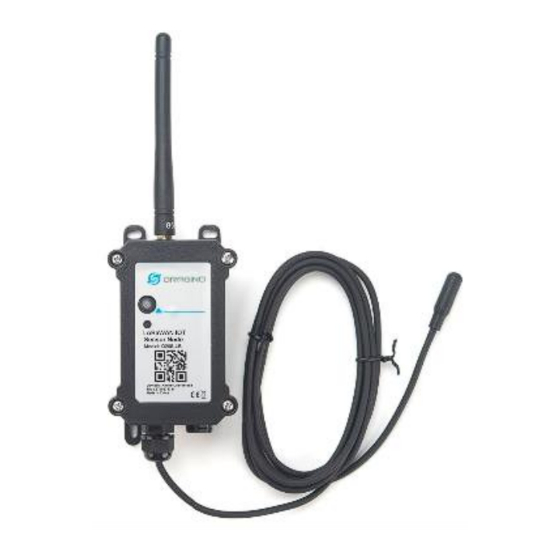

Dragino D23-LB User Manual

Lorawan temperature sensor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
 (/xwiki/bin/view/Main/)  / Home (/xwiki/bin/view/Main/) 
/ User Manual for LoRaWAN End Nodes (/xwiki/bin/view/Main/User%20Manual%20for%20LoRaWAN%20End%20Nodes/) 
/ D20-LB/D20S-LB/D22-LB/D23-LB LoRaWAN Temperature Sensor User Manual (/xwiki/bin/view/Main/User%20Manual%20for%20LoRaWAN%20End%20Nodes/D20-LBD22-LBD23-
LB_LoRaWAN_Temperature_Sensor_User_Manual/) 
D20-LB/D20S-LB/D22-LB/D23-LB LoRaWAN Temperature Sensor
User Manual
Last modified by Xiaoling (/xwiki/bin/view/XWiki/Xiaoling) on 2023/06/12 10:25

Table of Contents：

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D23-LB and is the answer not in the manual?

Questions and answers

Related Manuals for Dragino D23-LB

Summary of Contents for Dragino D23-LB

  • Page 1: Table Of Contents

     (/xwiki/bin/view/Main/)  / Home (/xwiki/bin/view/Main/)  / User Manual for LoRaWAN End Nodes (/xwiki/bin/view/Main/User%20Manual%20for%20LoRaWAN%20End%20Nodes/)  / D20-LB/D20S-LB/D22-LB/D23-LB LoRaWAN Temperature Sensor User Manual (/xwiki/bin/view/Main/User%20Manual%20for%20LoRaWAN%20End%20Nodes/D20-LBD22-LBD23- LB_LoRaWAN_Temperature_Sensor_User_Manual/)  D20-LB/D20S-LB/D22-LB/D23-LB LoRaWAN Temperature Sensor User Manual Last modified by Xiaoling (/xwiki/bin/view/XWiki/Xiaoling) on 2023/06/12 10:25 Table of Contents：...

  • Page 2: Introduction

    1.1 What is D2x-LB LoRaWAN Temperature Sensor The Dragino D2x-LB is a LoRaWAN Temperature Sensor for Internet of Things solution. D2x-LB has 1 ~ 3 temperature probes. D2x-LB will convert the Temperature rea to LoRaWAN wireless data and send to IoT platform via LoRaWAN gateway.

  • Page 3: Button & Leds

    Deep Sleep Mode: Sensor doesn't have any LoRaWAN activate. This mode is used for storage and shipping to save battery life. Working Mode: In this mode, Sensor will work as LoRaWAN Sensor to Join LoRaWAN network and send out sensor data to server. Between each sampling/tx/rx periodi sensor will be in IDLE mode), in IDLE mode, sensor has the same power consumption as Deep Sleep mode.

  • Page 4: Pin Definitions

    1.7 Pin Definitions 1.8 Hardware Variant Model Photo Probe Info D20-LB 1 x DS28B20 Probe Cable Length : 2 meters D20S-LB 1 x DS28B20 Probe (Suitable for bury in soil) Material: TPE, Cable Length: 2meters D22-LB 2 x DS28B20 Probes Cable lengths total 1.5meters per probe...

  • Page 5: Configure D2X-Lb To Connect To Lorawan Network

    2.2 Quick guide to connect to LoRaWAN server (OTAA) Following is an example for how to join the TTN v3 LoRaWAN Network (https://console.cloud.thethings.network/) . Below is the network structure; we use the LPS8v2 (https://www.dragino.com/products/lora-lorawan-gateway/item/228-lps8v2.html) as a LoRaWAN gateway in this example.
  • Page 6 You can enter this key in the LoRaWAN Server portal. Below is TTN screen shot: Register the device Add APP EUI and DEV EUI Add APP EUI in the application...
  • Page 7 Add APP KEY Step 2: Activate on D2x-LB Press the button for 5 seconds to activate the D2x-LB. Green led will fast blink 5 times, device will enter OTA mode for 3 seconds. And then start to JOIN LoRaWAN network. Green led will solidly turn on for 5 seconds after j in network.

  • Page 8: Uplink Payload

    2.3 Uplink Payload 2.3.1 Device Status, FPORT=5 Users can use the downlink command(0x26 01) to ask D2x-LB to send device configure detail, include device configure status. D2x-LB will uplink a payload via FPort=5 t server. The Payload format is as below. Device Status (FPORT=5) Size (bytes) Value...

  • Page 9: Decode Corresponding Probe Color

    Ex2: 0x0B49 = 2889mV Temperature RED or Temperature White : This point to the Red probe in D20-LB or the probe of D22-LB/D23-LB White Example: If payload is: 0105H: (0105 & 8000 == 0), temp = 0105H /10 = 26.1 degree If payload is: FF3FH : (FF3F &...

  • Page 10: Temperature Black

    Temperature Black: This point to the BLACK probe in D23-LB If it is D20-LB/D22-LB, the value is 0x7FFF, which is 327.67. Example: If payload is: 0105H: (0105 & 8000 == 0), temp = 0105H /10 = 26.1 degree If payload is: FF3FH : (FF3F & 8000 == 1) , temp = (FF3FH - 65536)/10 = -19.3 degrees.

  • Page 11: Unix Timestamp

    2.5.2 Unix TimeStamp D2x-LB uses Unix TimeStamp format based on User can get this time from link: https://www.epochconverter.com/ (https://www.epochconverter.com/) Below is the converter example So, we can use AT+TIMESTAMP=1611889405 or downlink 3060137afd00 to set the current time 2021 – Jan -- 29 Friday 03:03:25 2.5.3 Set Device Time User need to set SYNCMOD=1 to enable sync time via MAC command.

  • Page 12: Temperature Alarm Feature

    If devise doesn't have any data in the polling time. Device will uplink 11 bytes of 0 Example: If D2x-LB has below data inside Flash: If user sends below downlink command: 31646DBAA0646DBB5405 Where : Start time: 646DBAA0 = time 23/5/24 07:20:00 Stop time: 646DBB54= time 23/5/24 07:23:00 D2x-LB will uplink this payload.

  • Page 13: Frequency Plans

    3.2 General Commands These commands are to configure: General system settings like: uplink interval. LoRaWAN protocol & radio related command. They are same for all Dragino Devices which support DLWS-005 LoRaWAN Stack. These commands can be found on the wiki:...

  • Page 14: Commands Special Design For D2X-Lb

    (http://wiki.dragino.com/xwiki/bin/view/Main/End%20Device%20AT%20Commands%20and%20Downlink%20Command/) 3.3 Commands special design for D2x-LB These commands only valid for D2x-LB, as below: 3.3.1 Set Transmit Interval Time Feature: Change LoRaWAN End Node Transmit Interval. AT Command: AT+TDC Command Example Function Response AT+TDC=? Show current 30000 transmit Interval...

  • Page 15: Set Alarm Interval

    3.3.4 Set Alarm Interval The shortest time of two Alarm packet. (unit: min) AT Command: AT+ATDC=30 // The shortest interval of two Alarm packets is 30 minutes, Means is there is an alarm packet uplink, there won't be another one in the next 30 minutes. Downlink Payload: 0x(0D 00 1E) --->...

  • Page 16: Set Power Output Duration

    Update through UART TTL interface. Instruction (http://wiki.dragino.com/xwiki/bin/view/Main/UART%20Access%20for%20LoRa%20ST%20v4%20base%20model/#H1.LoRaSTv4baseHardware) . 6. FAQ 7. Order Info Part Number: D20-LB-XX / D20S-LB( designed for used in Soil or Road)/D22-LB-XX / D23-LB-XX XX: The default frequency band AS923: LoRaWAN AS923 band AU915: LoRaWAN AU915 band...
  • Page 17 Support is provided Monday to Friday, from 09:00 to 18:00 GMT+8. Due to different timezones we cannot offer live support. However, your questions will be answe soon as possible in the before-mentioned schedule. Provide as much information as possible regarding your enquiry (product models, accurately describe your problem and steps to replicate it etc) and send a mail to Support@dragino.cc (mailto:Support@dragino.cc) . Tags:  0...
