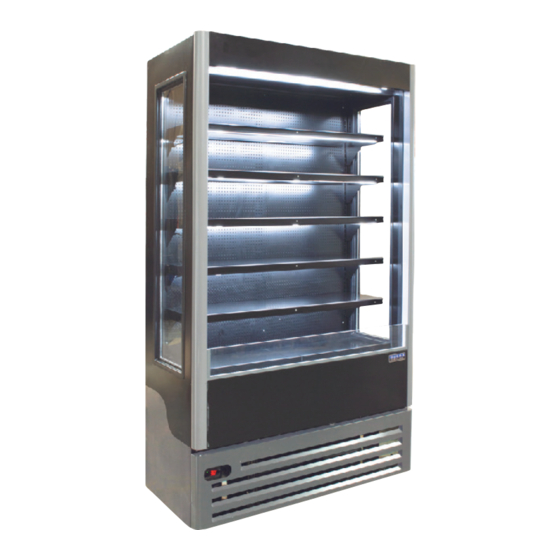

- Page 1 ALPA SERIES 460 Southport Commerce Blvd. Spartanburg SC 29306 Phone: 864-574-6004 Fax: 864-574-6005 INSTALLATION AND OPERATION MANUAL Congratulations! You have just purchased the finest commercial refrigeration available. ALPA 120 SLIM ALPA 36 ALPA 77 ALPA 99 Part Number 100330038 www.ojedausa.com...
-
Page 2: Table Of Contents
You have selected one of the finest commercial refrigeration units made. It is manufactured under strict quality controls with only the best quality materials available. Your Ojeda cooler, when installed correctly and properly maintained will give you many years of trouble-free operation. -
Page 3: Product Registration
MODEL: ________________________ SERIAL NUMBER: _______________ ADDITIONAL WARNING (ALPA 36 and ALPA 120 Slim only) -Please use care when moving or handling this equipment. It is equipped with flammable refrigerant and damage to refrigerant tubing will increase the risk of a leak. -
Page 4: Placing And Installing The Equipment
PLACING AND INSTALLING EQUIPMENT ENVIRONMENTAL CONDITIONS THIS UNIT CANNOT BE INSTALLED IN ENVIRONMENTS WITH EXPLOSIVE GASES. THE EQUIPMENT IS DESIGNED ONLY FOR INDOOR OPERATION. The unit must be located in an indoor environment where the ambient is maintained less than F/55 For the correct performance of the refrigerating system, it is very important to leave at least 10 cm (4”) of free space at the back to allow proper air circulation. -
Page 5: Electrical Requirements
ALPA units require a dedicated outlet with the type of receptacle as shown in the chart. The use of extension cords is not permitted and will void the warranty. Voltage Current Circuit NEMA Model Required (A) Config. Alpa 36 5-15P Alpa 55 5-15P Alpa 77 5-20P Alpa 99 5-20P Alpa 120... -
Page 6: Unit Operation And Components
PREVENTION Do not block the lower ventilation grille with the packages about to be loaded. (Fig. 5) Do not block the return vents that ensure a proper refrigerated air circulation. (Fig. 6) Do not over hang the shelf. Do not press the product against the rear wall Never exceed the shelf weight limits. - Page 7 COMPRESSORS The ALPA-36 and ALPA-55 have a single hermetic compressor. The ALPA-77, ALPA-99, and ALPA- 120 have two hermetic compressors that start in two steps with a delay of 10 seconds to reduce the in-rush of current to the unit. CONDENSERS The ALPA units incorporate a “maintenance free”...
-
Page 8: Caution
CAUTION The equipment has been exclusively designed to maintain the proper temperature of packaged fresh food and beverages. Because the unit is not designed to cool the product down quickly, the product must be loaded at its appropriate temperature. - Do not remove grilles or panels that require using tools to be accessed - Do not keep the unit running unloaded. - Page 9 MAINTENANCE GUIDELINES CONT’D Never use flammable or abrasive products. The unit must never be cleaned with water jets. IMPORTANT: During maintenance and cleaning operations, make sure that good visibility conditions exist in the working area, using other light sources in case it is needed. Be very careful when working with moving and/or high-temperature parts.
-
Page 10: Cleaning Drain Lines
CLEANING DRAIN LINES (ALPA 55-120) Over time it is likely that the drain lines will become clogged which will result in water overflowing the condensate pan and onto the floor. This is a standard maintenance item and will not be covered under warranty. The drain lines can also be accessed by removing the bottom panel from the inside of the unit. -
Page 11: Standard Warranty
3 years from the date of shipment to the original purchaser. Ojeda USA shall for the first 3 years of the above warranty, provide and pay for reasonable straight time labor charges to install the named parts. After such year, no labor or costs shall be provided free of charge. - Page 12 TECHNICAL ASSISTANCE If technical personnel assistance is required, you must immediately contact your distributor, specifying the kind of problem and clearly indicating the equipment model and serial number. If replacing parts is required, do it through your distributor. WARNING: Always ask for original spare parts AUTHORIZED DISTRIBUTOR: _____________________________________ COMMERCIAL NAME:...
