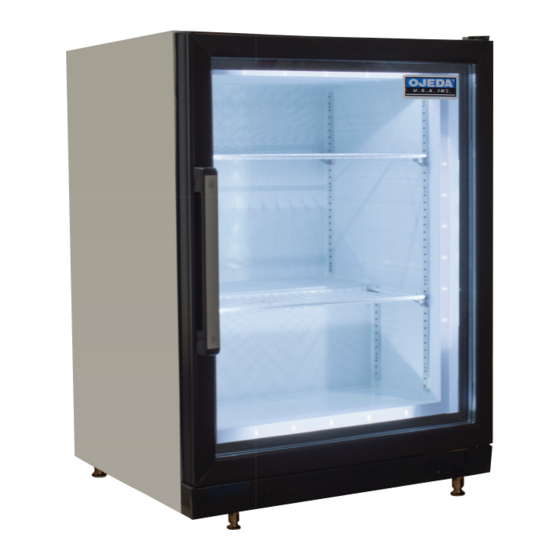

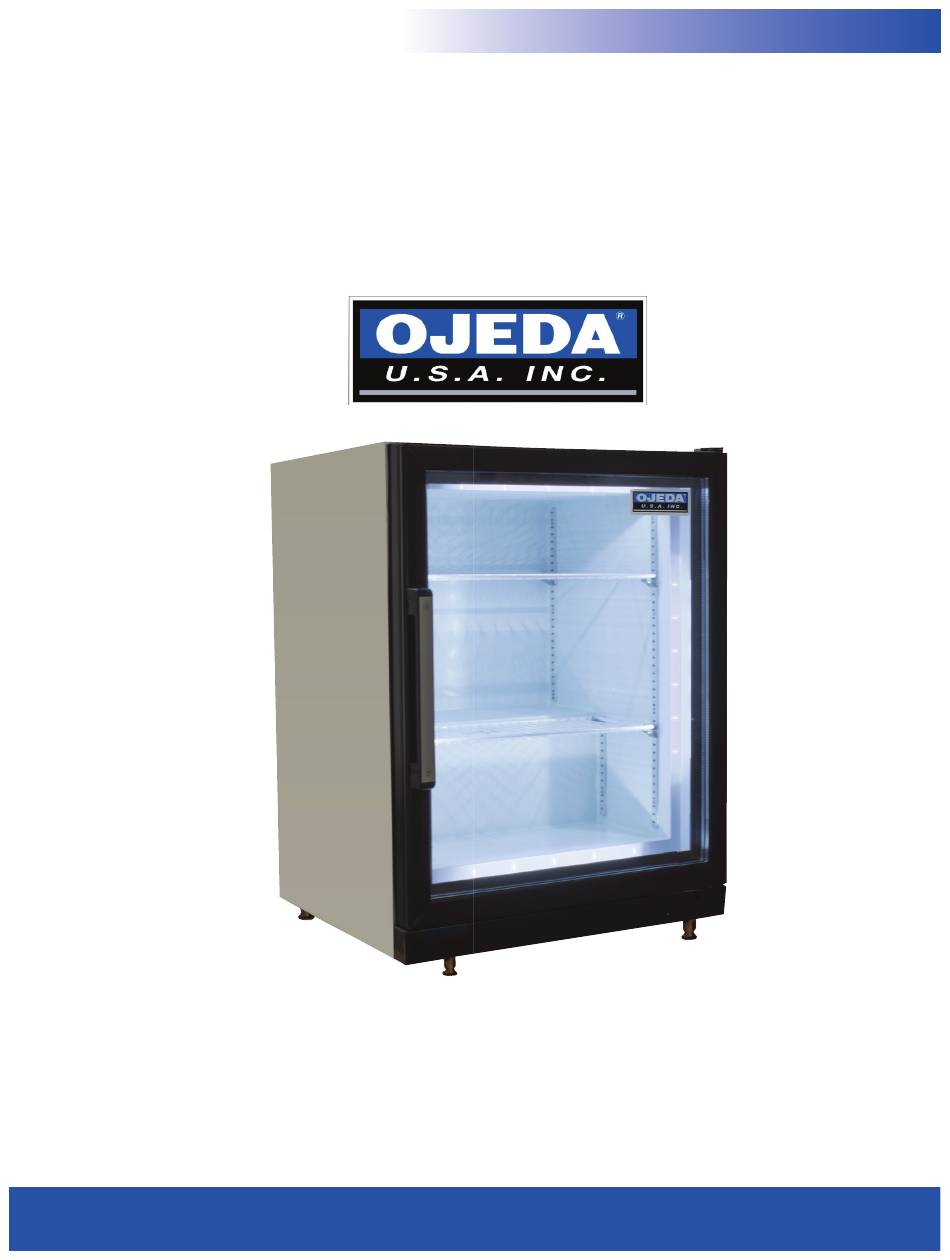

- Page 1 CTFH SERIES 460 Southport Commerce Blvd. Spartanburg SC 29306 Phone: 864-574-6004 Fax: 864-574-6005 INSTALLATION AND OPERATION MANUAL CTFH-3 Congratulations! You have just purchased the finest commercial refrigeration available. www.ojedausa.com...
-
Page 2: Table Of Contents
You have selected one of the finest commercial refrigeration units made. It is manufactured under strict quality controls with only the best quality materials available. Your Ojeda cooler, when installed correctly and properly maintained will give you many years of trouble-free operation. -
Page 3: Application
APPLICATION CAREFULLY READ THESE INSTRUCTIONS. This manual provides instructions in how to best locate, operate, and maintain this equipment. It is recommended to keep this manual for any future reference. The CTFH-3 has a sanitation listing permitting the merchandising of packaged food and beverage product. -
Page 4: Placing And Installing The Equipment
PLACING AND INSTALLING EQUIPMENT ENVIRONMENTAL CONDITIONS THIS UNIT CANNOT BE INSTALLED IN ENVIRONMENTS WITH EXPLOSIVE GASES. THE EQUIPMENT IS DESIGNED ONLY FOR INDOOR OPERATION. The unit must be located in an indoor environment where the ambient is maintained less than 75oF/65%RH. -
Page 5: Electrical Requirements
ELECTRICAL REQUIREMENTS The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance. The use of extension cords is not permitted and will void the warranty. Voltage Current Circuit... -
Page 6: Unit Operation And Components
PREVENTION Do not block the lower ventilation grille with the packages about to be loaded. Do not over hang the shelf. Do not press the product against the rear wall Never exceed the shelf weight limits. UNIT OPERATIONS AND COMPONENTS CHANGING THE TEMPERATURE To access the temperature control, the rear grill should be removed using a Phillips screw driver. -
Page 7: Shelf Specifications
CAUTION CONT’D Do not climb on top of the unit. Never use direct or indirect water jets on the unit. Do not allow the electronic control to be adjusted by customers or unqualified personnel. For any adjustment you must contact your distributor. Verify that the hot air stream from the condenser towards the back of the unit is not directed to other refrigeration units, which would compromise their operation. - Page 8 MAINTENANCE GUIDELINES CONT’D 2. Unplug the unit until all the frost is gone. 3. When the ice has melted wipe up any water left on the freezer floor. 4. Allow the freezer to refrigerate and cycle before placing the product back into the freezer To defrost while keeping the freezer plugged in place a clean dry soft cloth over the product to catch the frost that will be removed.
- Page 9 TECHNICAL ASSISTANCE If technical personnel assistance is required, you must immediately contact your distributor, specifying the kind of problem and clearly indicating the equipment model and serial number. If replacing parts is required, do it through your distributor. WARNING: Always ask for original spare parts AUTHORIZED DISTRIBUTOR: _____________________________________ COMMERCIAL NAME:...
