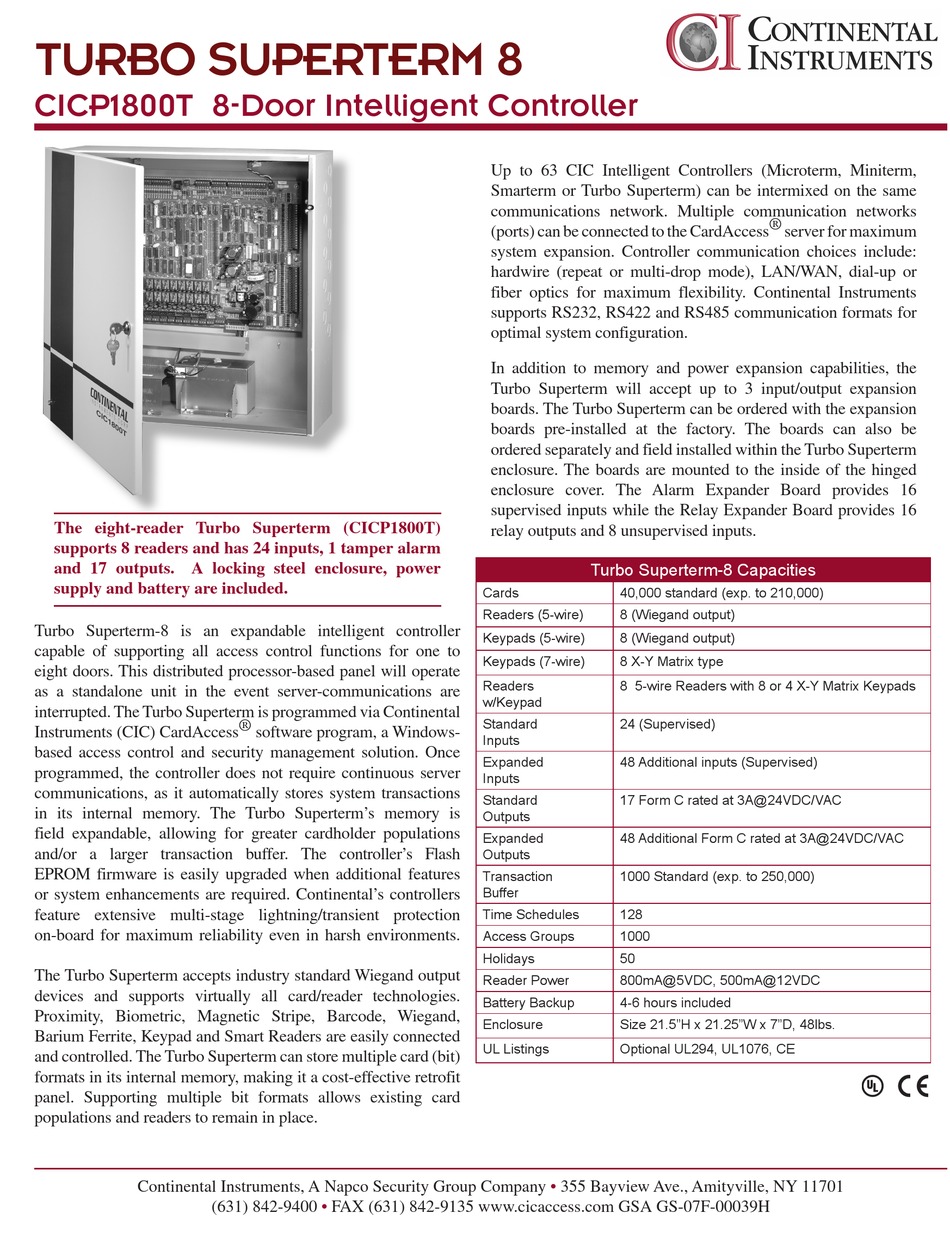

Continental Instruments CICP1800T Datasheet

SUPERTERM-8
TURBO SUPERTERM 8
CICP1800T 8-Door Intelligent Controller
The eight-reader Turbo Superterm (CICP1800T)
supports 8 readers and has 24 inputs, 1 tamper alarm
and 17 outputs. A locking steel enclosure, power
supply and battery are included.
Turbo Superterm-8 is an expandable intelligent controller
capable of supporting all access control functions for one to
eight doors. This distributed processor-based panel will operate
as a standalone unit in the event server-communications are
interrupted. The Turbo Superterm is programmed via Continental
Instruments (CIC) CardAccess ® software program, a Windows-
based access control and security management solution. Once
programmed, the controller does not require continuous server
communications, as it automatically stores system transactions
in its internal memory. The Turbo Superterm's memory is
field expandable, allowing for greater cardholder populations
and/or a larger transaction buffer. The controller's Flash
EPROM firmware is easily upgraded when additional features
or system enhancements are required. Continental's controllers
feature extensive multi-stage lightning/transient protection
on-board for maximum reliability even in harsh environments.
The Turbo Superterm accepts industry standard Wiegand output
devices and supports virtually all card/reader technologies.
Proximity, Biometric, Magnetic Stripe, Barcode, Wiegand,
Barium Ferrite, Keypad and Smart Readers are easily connected
and controlled. The Turbo Superterm can store multiple card (bit)
formats in its internal memory, making it a cost-effective retrofit
panel. Supporting multiple bit formats allows existing card
populations and readers to remain in place.
Continental Instruments, A Napco Security Group Company
(631) 842-9400
Up to 63 CIC Intelligent Controllers (Microterm, Miniterm,
Smarterm or Turbo Superterm) can be intermixed on the same
communications network. Multiple communication networks
(ports) can be connected to the CardAccess ® server for maximum
system expansion. Controller communication choices include:
hardwire (repeat or multi-drop mode), LAN/WAN, dial-up or
fiber optics for maximum flexibility. Continental Instruments
supports RS232, RS422 and RS485 communication formats for
optimal system configuration.
In addition to memory and power expansion capabilities, the
Turbo Superterm will accept up to 3 input/output expansion
boards. The Turbo Superterm can be ordered with the expansion
boards pre-installed at the factory. The boards can also be
ordered separately and field installed within the Turbo Superterm
enclosure. The boards are mounted to the inside of the hinged
enclosure cover. The Alarm Expander Board provides 16
supervised inputs while the Relay Expander Board provides 16
relay outputs and 8 unsupervised inputs.
Cards
Readers (5-wire)
Keypads (5-wire)
Keypads (7-wire)
Readers
w/Keypad
Standard
Inputs
Expanded
Inputs
Standard
Outputs
Expanded
Outputs
Transaction
Buffer
Time Schedules
Access Groups
Holidays
Reader Power
Battery Backup
Enclosure
UL Listings
• FAX (631) 842-9135 www.cicaccess.com GSA GS-07F-00039H
Turbo Superterm-8 Capacities
40,000 standard (exp. to 210,000)
8 (Wiegand output)
8 (Wiegand output)
8 X-Y Matrix type
8 5-wire Readers with 8 or 4 X-Y Matrix Keypads
24 (Supervised)
48 Additional inputs (Supervised)
17 Form C rated at 3A@24VDC/VAC
48 Additional Form C rated at 3A@24VDC/VAC
1000 Standard (exp. to 250,000)
128
1000
50
800mA@5VDC, 500mA@12VDC
4-6 hours included
Size 21.5"H x 21.25"W x 7"D, 48lbs.
Optional UL294, UL1076, CE
