Continental Instruments CICP1300 Datasheet

SUPER-TWO
CICP1300 2 Door Intelligent Controller

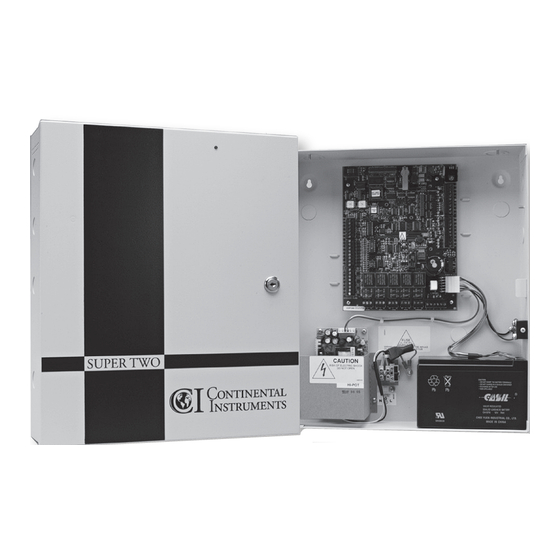

The two-reader Super-Two (CICP-1300) supports 2 readers
and has 8 inputs, 1 tamper alarm and 5 relay outputs. A
locking steel enclosure, power supply and 7AH battery are
included. Plug-in network interface, memory expansion,
X-Y matrix keypad support and input/output expansion
are optional. In addition to power for the controller and
two readers, 1.2A at 12VDC is provided for accessories,
including power strikes and mag-locks.
Super-Two is an expandable intelligent controller capable of supporting
all access control functions for one or two doors. This distributed
processor-based controller will operate as a standalone unit in the event
communications with the server are interrupted. The Super-Two is
programmed via Continental Instruments Corp CardAccess® software
program, a Windows based access control, security management and
video integration solution. Once programmed, the controller does not
require continuous server communications, as it automatically stores
systems transactions in its internal memory. The Super-Two's memory
is field expandable, allowing for greater cardholder populations and/or
a larger transaction buffer. The controller's Flash EPROM firmware
is easily upgraded when additional features or system enhancements
are required. All Continental Instruments' controllers feature extensive
multi-stage lightning/transient protection on-board for maximum
reliability, even in harsh environments. The Super-Two accepts industry
standard Weigand output devices and supports virtually all card/reader
technologies. Proximity, Smart, Biometric, Magnetic Stripe, Barcode,
Weigand and Keypad readers are easily connected and controlled. The
Super-Two can store multiple (up to 10) card bit formats in its internal
memory, making it a cost-effective retrofit panel. Supporting multiple
bit formats allows existing card populations and readers to remain in
place when upgrading to the Super-Two controller.
To allow the Super-Two to be the most advanced and most flexible panel
to date, Continental Instruments has integrated a Network Interface
(optional) to allow the Super-Two to be directly connected to a local-
area-network (LAN). Combine that with a total of 2.5M of memory
Continental Instruments, Division of Napco Security Group • 355 Bayview Ave., Amityville, NY 11701
(631) 842-9400 • FAX (631) 842-9135 www.cicaccess.com GSA GS-07F-00039H
(requires optional 2M board) and you have a 2-reader network panel
capable of storing 125,000 card-holders.
Up to 63 CIC Intelligent Controllers (MicroTerm, MiniTerm, SmarTerm,
SuperTerm, Turbo SuperTerm or Super-Two) can be intermixed on the
same communications port. Ports with only the Turbo Superterm and
the Super-Two can communicate with the server at 57.6 Kbps. Multiple
communication networks (ports) can be connected to the CardAccess®
server (or to multiple CardAccess® communication servers) for
maximum system expansion and faster communications between the
controllers and the server(s). Controller communication choices include:
hardwire (repeat or multi-drop mode), LAN/WAN, dial-up or fiber optics
for maximum flexibility. Continental Instruments supports RS-232 and
RS-422 communication formats for optimal system configuration.
In addition to memory expansion capabilities, the Super-Two will
accept up to three input/output expansion boards. The input and output
expansion boards are mounted in a separate enclosure(s) within 24
inches of the Super-Two enclosure. One Alarm/Relay Expander Board
provides 16 supervised inputs and 16 relay outputs.
Super-Two Capacities
Cards
Readers
Keypads
Reader's w/keypad
X-Y matrix keypad interface
Standard Memory
Memory expansion
Network interface
Standard Inputs
Expanded Inputs
Standard Outputs
Expanded Outputs
Transaction Buffer
Time Schedules
Access Groups
Holidays
Power Input
Power per reader
Accessory Power
Battery Backup 7AH
Enclosure
UL Listing;CUL Listing
20,000 standard (expandable to 125,000)
2 (Weigand output)
Support for 2 Weigand or X-Y matrix
(optional interface required)
Simultaneous support for 2 Weigand readers +
2 Weigand keypads or 2 X-Y Matrix keypads
Optional (required for X-Y matrix Keypads)
512KB (upgradeable)
2 MB optional (CIC P1300XYB2)
plug-in 10-100 base T optional (CICE-PNETBD)
8 Supervised
48 Additional inputs (Supervised)
5 Form C rated at 2.5A@24VDC/VAC
48 Additional Form C rated at 3A@24VDC/VAC
1000 standard (expandable to145,000)
255
1,000
100
120VAC/60Hz to 230VAC/50Hz
100mA@5VDC, 200mA@12VDC
1.2A@12VDC available for powering
strikes,mag-locks and other accessories
4-6 hours(included)
Size 20"H x 16" Wand 3.5" D, 23 lbs.
UL 294, CSA C22.2
A494A
