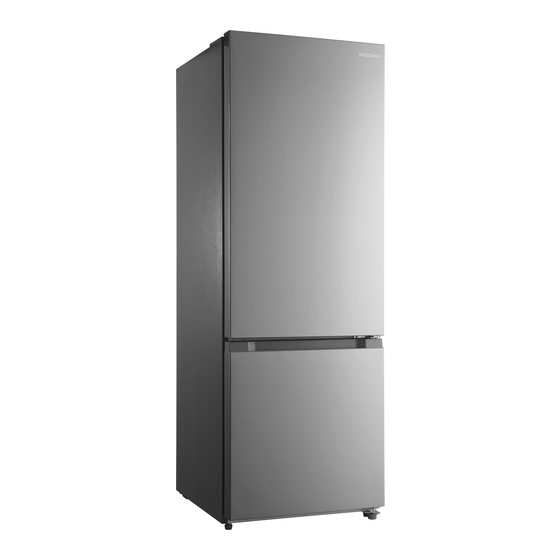

- Page 1 USER GUIDE 11.5 Cu. Ft. Bottom Mount Refrigerator NS-RBM11SS2/NS-RBM11SS2-C /NS-RBM11WH2/NS-RBM11WH2-C Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
ONE-YEAR LIMITED WARRANTY ..............21 Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-RBM11SS2, NS-RBM11SS2-C, NS-RBM11WH2, or NS-RBM11WH2-C represents the state of the art in bottom mount refrigerator design and is designed for reliable and trouble-free performance. - Page 3 NS-RBM11SS2/NS-RBM11SS2-C/NS-RBM11WH2/NS-RBM11WH2-C IMPORTANT SAFETY INFORMATION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates that dangerous voltage constituting a risk of electric shock is present within your refrigerator. This symbol indicates that there are important operating and maintenance instructions in the literature accompanying your refrigerator.
- Page 4 WARNING Electric Shock Hazard Failure to follow these instructions can result in electric shock, fire, or death. 1 WARNING–Keep ventilation openings, in both your refrigerator and the built-in structure, clear of obstruction. 2 WARNING–Do not touch the interior of your refrigerator with wet hands. This could result in frostbite.
-
Page 5: Features
NS-RBM11SS2/NS-RBM11SS2-C/NS-RBM11WH2/NS-RBM11WH2-C Features Package contents • 11.5 Cu. Ft. Refrigerator • Hinge kit (for door reversal) • User Guide Dimensions 67.8 in. (172.4 cm) www.insigniaproducts.com... -
Page 6: Exterior
Exterior Top hinge Refrigerator door Freezer door handle Freezer door Leveling feet www.insigniaproducts.com... -
Page 7: Interior
NS-RBM11SS2/NS-RBM11SS2-C/NS-RBM11WH2/NS-RBM11WH2-C Interior Shelves Refrigerator door trays Crisper drawer Multi-function drawer Freezer shelf Freezer drawer Setting up your refrigerator Before using your refrigerator • Remove the exterior and interior packaging. • Wash the inside with a damp, warm cloth and a baking soda solution (two tablespoons in a quart of water), then wipe dry with a dry cloth. -
Page 8: Providing Correct Ventilation
Providing correct ventilation Allow at least 8 in. (20.3 cm) between the left and right sides of your refrigerator and surrounding walls and at least 2 in. (5.1 cm) between the back and top of your refrigerator and the surrounding wall and ceiling. 2 in. -
Page 9: Providing The Correct Power Source
NS-RBM11SS2/NS-RBM11SS2-C/NS-RBM11WH2/NS-RBM11WH2-C Providing the correct power source Check your local power source. Your refrigerator requires a 115V, 60Hz power supply. WARNINGS: Make sure that: • The power outlet accepts a 3-prong grounding plug. The third prong on the power cord plug grounds your refrigerator to minimize the possibility of electric shock. - Page 10 2 Remove the left-side decorative cover, the right-side upper hinge cover, and right-side upper hinge. Right-side hinge cover Right-side upper hinge Left-side decorative cover 3 Remove the refrigerator compartment door from the cabinet. CAUTION: Be careful not to lose any of the small parts, such as the shaft sleeve and door stop. 4 Remove the right-side middle hinge and the left-side hole cover.
- Page 11 NS-RBM11SS2/NS-RBM11SS2-C/NS-RBM11WH2/NS-RBM11WH2-C 5 Remove the freezer door. CAUTION: Be careful not to lose any of the small parts, such as the shaft sleeve and door stop. 6 Remove the screws holding the right-side lower hinge, then remove the hinge and the pivot shaft from it.
- Page 12 10 Remove the shaft sleeve from the top-right side of the freezer door, remove the hole cover from the top-left side of the freezer door, then remove the stopper from the bottom-right side of the freezer door. Shaft sleeve Hole cover Stopper 11 Install the hole cover in the top-right side of the freezer door, install the shaft sleeve in the top-left side of the door, then install the stopper into the bottom-left side of the freezer door.
- Page 13 NS-RBM11SS2/NS-RBM11SS2-C/NS-RBM11WH2/NS-RBM11WH2-C 14 Install the refrigerated door onto the middle hinge, install the upper-left hinge and hinge cover, then install the decorative cover to the right side of the refrigerator. Decorative cover Hinge cover Upper-left hinge www.insigniaproducts.com...
-
Page 14: Using Your Refrigerator
Using your refrigerator CAUTIONS: • If your refrigerator is set at a warmer setting (such as 1), depending on the ambient temperature, the freezer temperature may become too warm and the contents may defrost. If this happens, set the refrigerator temperature to the coldest setting (4). •... -
Page 15: Setting The Freezer Temperature
NS-RBM11SS2/NS-RBM11SS2-C/NS-RBM11WH2/NS-RBM11WH2-C Quick Cool mode Quick cool mode helps to lower the temperature quickly. 1 Press and hold the SET button for three seconds. LEDs 2 and 3 turn on and the refrigerator enters quick cool mode. 2 To cancel quick cool mode, press the SET button again. -
Page 16: Adjusting The Door Racks
2 Lift a shelf, then pull it out. 3 To replace a shelf, slide it into the compartment, then lower it into position. Adjusting the door racks CAUTION: Do not put too many heavy items in the door racks. You may break the racks. The refrigerator and freezer compartments have door racks. -
Page 17: Maintaining Your Refrigerator
NS-RBM11SS2/NS-RBM11SS2-C/NS-RBM11WH2/NS-RBM11WH2-C Maintaining your refrigerator Cleaning your refrigerator CAUTIONS: To prevent damage to the finish: • Do not use gasoline, benzine, thinner, or other similar solvents. • Do not use abrasive cleaners. • Do not use sharp objects because they are likely to scratch the surface. -
Page 18: Tips On Storing Food
Tips on storing food • Always store cooked meats on a refrigerator shelf above raw meats to avoid bacterial transfer. Keep raw meat on a plate which is large enough to collect juices, and cover the plate with cling film or foil. Leave space around food. This allows cold air to circulate around your refrigerator so that all parts of your refrigerator are kept cool. -
Page 19: Troubleshooting
NS-RBM11SS2/NS-RBM11SS2-C/NS-RBM11WH2/NS-RBM11WH2-C Troubleshooting CAUTION: Do not try to repair your refrigerator yourself. Doing so invalidates the warranty. PROBLEM SOLUTION • Make sure that your refrigerator is securely plugged into a working outlet. • Make sure that your power source has the correct voltage. Your refrigerator’s My refrigerator does not work. -
Page 20: Specifications
PROBLEM SOLUTION The following sounds are normal: • Compressor running noises. • Air movement noise from the small fan motor in the freezer compartment or other compartments. • Popping noise during automatic defrosting. The refrigerator makes unusual • Clicking noise before the compressor starts. noises or vibrations. -
Page 21: One-Year Limited Warranty
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 22 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC ©2021 Best Buy. All rights reserved. V2 ENGLISH 21-0536...
