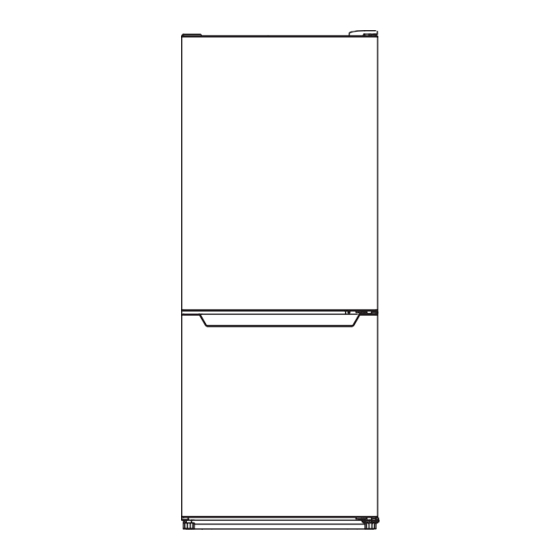

- Page 1 USER GUIDE 9.2 Cu. Ft. Bottom-Mount Refrigerator NS-RBM92BK9/NS-RBM92WH9/NS-RBM92WH9-C Before using your new product, please read these instructions to prevent any damage.
-
Page 2: Table Of Contents
Contents Introduction3 IMPORTANT SAFETY INSTRUCTIONS ..............3 Grounding requirement. -
Page 3: Important Safety Instructions
9.2 Cu. Ft. Bottom-Mount Refrigerator Introduction Congratulations on your purchase of a high-quality Insignia product. Your NS-RBM92BK9, NS-RBM92WH9 or NS-RBM92WH9-C represents the state of the art in bottom mount refrigerator design and is designed for reliable and trouble-free performance. IMPORTANT SAFETY INSTRUCTIONS... -
Page 4: Grounding Requirement
9.2 Cu. Ft. Bottom-Mount Refrigerator 20 Your refrigerator is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of your refrigerator by a person responsible for their safety. 21 Children should be supervised to ensure that they do not play with your refrigerator. -
Page 5: Dimensions
NS-RBM92BK9/NS-RBM92WH9/NS-RBM92WH9-C Dimensions www.insigniaproducts.com... -
Page 6: Interior
9.2 Cu. Ft. Bottom-Mount Refrigerator Interior Note: The illustrations shown in this user guide are only for reference. The actual product may differ slightly. Dairy compartment Light Refrigerator temperature control Refrigerator shelves (2) Freezer temperature control Refrigerator door racks Glass crisper cover Bottle storage Crisper Freezer shelf... -
Page 7: Exterior
NS-RBM92BK9/NS-RBM92WH9/NS-RBM92WH9-C Exterior Refrigerator door Freezer door Leveling feet Setting up your refrigerator Before using your refrigerator • Remove the interior packing. • Let your refrigerator stand upright for approximately four hours before connecting it to power. This reduces the possibility of a malfunction in the cooling system from incorrect handling during transportation. -
Page 8: Finding A Suitable Location
9.2 Cu. Ft. Bottom-Mount Refrigerator Finding a suitable location • Place your refrigerator on a floor that is strong enough to support your refrigerator when it is fully loaded. • Do not install your refrigerator on carpeting or a rug. •... -
Page 9: Providing The Correct Power Source
NS-RBM92BK9/NS-RBM92WH9/NS-RBM92WH9-C Providing the correct power source Check your power outlet. Your refrigerator requires a 110~115V, 60Hz power supply. WARNINGS: Make sure that: • The power outlet accepts a 3-prong grounding plug. The third prong on the power cord plug grounds your refrigerator to minimize the possibility of electric shock. -
Page 10: Leveling Your Refrigerator
9.2 Cu. Ft. Bottom-Mount Refrigerator Leveling your refrigerator Leveling your refrigerator is important. If you do not level your refrigerator during installation, the doors may not close or seal correctly which can cause cooling, frost, or moisture problems. Leveling foot •... - Page 11 NS-RBM92BK9/NS-RBM92WH9/NS-RBM92WH9-C 4 Remove the refrigerator compartment door from the cabinet. Hinge cover Screw Screws Hinge screw hole cover Upper hinge 5 Remove the two screws that secure the center hinge, then remove the center hinge and the center hinge spacer.
- Page 12 9.2 Cu. Ft. Bottom-Mount Refrigerator 8 Remove the screw that secures the door stops from the bottom of the freezer door, then remove the door stops. Door stop Door stop 9 Remove the four screws that secure the lower hinge to the right side of the cabinet, then remove the hinge. 10 Install the lower hinge on the left side of the cabinet.
- Page 13 NS-RBM92BK9/NS-RBM92WH9/NS-RBM92WH9-C 13 Remove the center hinge screw hole plugs on the left side of the cabinet, then install the plugs in the screw holes on the right side of the cabinet. Screw hole plugs 14 Install the freezer compartment door, then secure the center hinge with the two screws you removed previously. Make sure that the center hinge spacer is installed with the hinge.
-
Page 14: Using Your Refrigerator
9.2 Cu. Ft. Bottom-Mount Refrigerator Using your refrigerator Setting the refrigerator and freezer compartment temperatures Your refrigerator has separate temperature controls for the refrigerator and freezer compartments. The controls are at the back of the refrigerator compartment. Before storing foods in your refrigerator, turn on both the refrigerator and freezer compartments and wait for 24 hours to make sure that they are working correctly and to let both compartments reach the correct temperatures. -
Page 15: Cleaning Your Refrigerator
NS-RBM92BK9/NS-RBM92WH9/NS-RBM92WH9-C Cleaning your refrigerator CAUTIONS: To prevent damage to the finish: • Do not use gasoline, benzine, thinner, or other similar solvents. • Do not use abrasive cleaners. • Do not use sharp objects because they are likely to scratch the surface. -
Page 16: Replacing The Led Light
9.2 Cu. Ft. Bottom-Mount Refrigerator 4 To speed the defrosting, you can: • Place open containers with hot water inside the freezer compartment. • Use a plastic or wooden ice shovel (like a spatula) to remove thick layers of ice or frost. Do not use a sharp utensil (like a knife) because you may damage the freezer compartment. -
Page 17: Storing Your Refrigerator
NS-RBM92BK9/NS-RBM92WH9/NS-RBM92WH9-C 4 Plug the new light strip into the connector, then tuck the strip into the housing. 5 Insert the two tabs on the top of the cover into the slots on the top of the housing, then press in on the bottom tab until it clicks into place. -
Page 18: Moving Your Refrigerator
9.2 Cu. Ft. Bottom-Mount Refrigerator Moving your refrigerator 1 Unplug your refrigerator from the power outlet. 2 Remove all food. 3 Securely tape down all loose items inside your refrigerator. 4 Tape the door shut. 5 Make sure that your refrigerator does not tilt more than 45° from the upright position during transportation. Tips on saving energy •... - Page 19 NS-RBM92BK9/NS-RBM92WH9/NS-RBM92WH9-C Where to store food in your refrigerator Cool Cool Coldest Cool areas—Store foods which keep longer if they are kept cool, for example: • Dairy products like eggs, milk, and yogurt • Fruit juices • Hard cheeses like cheddar •...
-
Page 20: Troubleshooting
9.2 Cu. Ft. Bottom-Mount Refrigerator Troubleshooting CAUTION: Do not try to repair your refrigerator yourself. Doing so invalidates the warranty. PROBLEM SOLUTION • Make sure that your refrigerator is securely plugged into a working outlet. • Make sure that your power source has the correct voltage. Your refrigerator’s My refrigerator does not work. -
Page 21: Specifications
NS-RBM92BK9/NS-RBM92WH9/NS-RBM92WH9-C PROBLEM SOLUTION The following sounds are normal: • Compressor running noises. • Air movement noise from the small fan motor in the freezer compartment or other compartments. • Gurgling sound similar to water bubbling. • Popping noise during automatic defrosting. -
Page 22: One-Year Limited Warranty
During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Insignia repair center or store personnel, Insignia will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. - Page 23 For product inquiries, please contact us with the information below: 1-877-467-4289 www.insigniaproducts.com INSIGNIA is a trademark of Best Buy and its affiliated companies. Distributed by Best Buy Purchasing, LLC 7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2018 Best Buy. All rights reserved.
