Victorinox ST 5000 Manual

In 1897 the Original Victorinox Swiss Army
Knife was created in the small village of
Ibach, Switzerland. Since that
Victorinox has become known in more than
100 countries for precision,
functionality and versatility.
This century old heritage has been extended
to Victorinox Swiss Army Timepieces. Each
reflects the ingenious design
outstanding durability we've come to stand
for over the years. Uncompromising
craftsmanship makes these
worthy to carry the Cross and Shield emblem
that symbolizes the legend of Victorinox
Swiss Army.
Whether you're going around the corner or
around the globe, our classically styled
timepieces will make sure that you're
equipped for life's adventures. No matter
what those adventures might be.

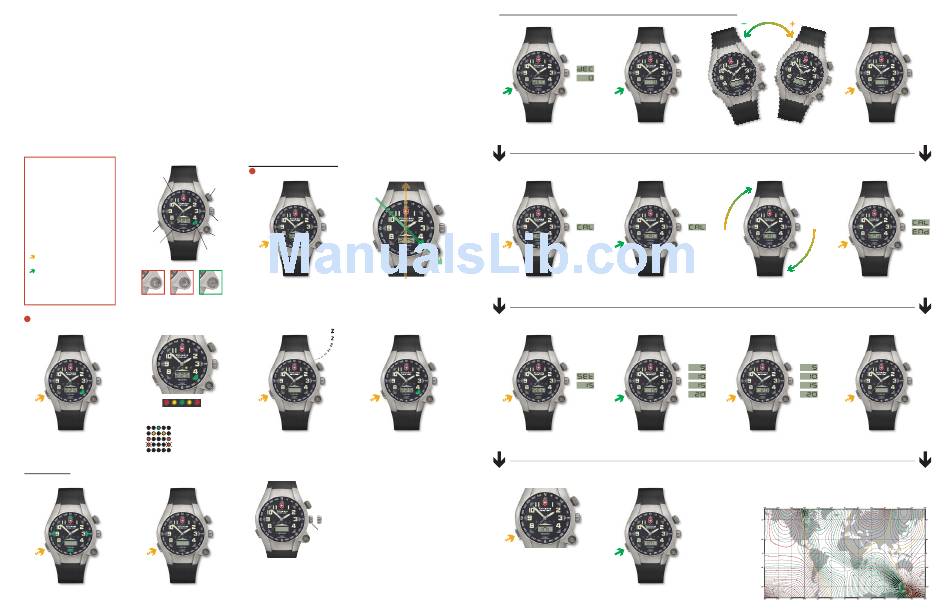

IMPORTANT
COMPASS DIAL
Before using timepiece, please follow
set-up procedures on reverse.
SET THE DECLINATION AND
COMPASS WHEN ANY OF THE
FOLLOWING CONDITIONS APPLY:
A. First time set-up
B. Your position changes in regards to
the current declination map
C. The compass battery is changed
PUSHER A
D. Compass appears to be
LCD DISPLAY
functioning improperly
Short push = click button and
release
Long push = click button and hold
for two seconds
NOTE: When using your compass,
hold parallel to ground (consult
level for accuracy).
INCORRECT INCORRECT CORRECT
2 PATHFINDER MODE
(FROM COMPASS MODE)
SET YOUR DESIRED HEADING PATHFINDER KEEPS YOU ON COURSE
SHORT
PUSH
The PATHFINDER LED: indicates
if the locked HEADING is followed
on path ( + / 0°-5°)
–
off path ( + / 5°-20°)
–
+
Point timepiece to desired direction and off path ( / 20°-40°)
–
use one SHORT PUSH to lock in HEADING off path ( + / 40°-90°)
–
out of range
OTHER FEATURES
TIMEPIECE LOCATOR /FINDER
(FROM STANDBY MODE)
3x 3x
SHORT SHORT
PUSH PUSH
TO FLASH LED arrows at the four TO EXIT: three short pushes
CARDINAL POINTS: three short pushes
QUALITY FEATURES BATTERIES
time,
Swiss Made. Your ST-5000 timepiece has two batteries.
The time function is powered by (1) 371
quality, Precision Swiss Movements.
battery and the compass is powered by (1)
Water Resistant to 50M (5ATM, 165 feet). CR2032 battery. Worn batteries should be
replaced immediately. Substituting
Titanium case.
interchangeable batteries is not
recommended. Battery change should be
and
Anti-Reflective mineral crystal.
performed by a qualified technician who
Victorinox Swiss Army Timepieces
should also check the condition of the
are covered by a three-year limited warranty.
gaskets and the o-ring at the same time.
timepieces
Only our timepieces are authorized by the
Battery is not covered by the warranty.
Swiss government to carry the name
"Swiss Army."
USING THE COMPASS TO NAVIGATE
1 COMPASS MODE: FIND NORTH AND HEADING
COMPASS
CROWN
CROWN
BUBBLE
LEVEL
NORTH SHORT
INDICATOR PUSH
Green arrow depicts True North while LCD
display indicates direction you are heading
(example for 225°)
REACTIVATES EASILY
2x 2x
SHORT SHORT
PUSH PUSH
After 15 seconds, ST-5000 will
go into pathfinder pause mode. TO EXIT: two short pushes
TO WAKE-UP: one short push returns to Compass mode
SET TIME
1 2
CROWN
A. Pull out the crown to position (2).
B. Rotate the crown toward you until
the desired time is set.
C. Push in the crown, returning it to
position (1). The time is now set.
USING YOUR COMPASS FOR THE FIRST TIME IN A NEW LOCATION
SET THE DECLINATION
(FROM STANDBY MODE)
A
> ALTERNATES <
LONG
PUSH
NOTE: Before setting declination, you must
determine your declination based on your
location. *See belowr more information.
CALIBRATE THE COMPASS
(FROM STANDBY MODE)
A
SHORT
PUSH
NORTH
225°
SET THE DISPLAY REACTION TIME
A
> ALTERNATES <
SHORT
PUSH
NOTE: Default reaction time is 15.
INITIALIZATION
(FROM DISPLAY REACTION TIME MODE)
A
SHORT
PUSH
NOTE: Initialization verifies that all LED and
LCD elements are functioning properly:
Each LED indicator and LCD digit will blink
one time, one after the other. This includes
the eight North indicators, the five
PathFinder LED's and the three LCD digits.
(Note: Steps must be followed in sequence below.)
See below* for declination explanation.
B C
LONG
PUSH
HOLD HORIZONTAL, just as a compass.
Turn LEFT for NEGATIVE declinati.
Turn RIGHT for POSITIVE declination.
(FROM DECLINATION MODE)
HOLD HORIZONTAL, just as a compass
and rotate clockwise two full rotations.
B C
> BLINKS <
LONG
PUSH
GREEN light indicates correct rotation speed.
YELLOW light indicates if rotation speed is too
fast or too slow. Rotate backward until GREEN
lights again and proceed rotating.
(FROM COMPASS CALIBRATION MODE)
B C
TIME
OPTIONS
> BLINKS <
LONG SHORT
PUSH PUSH
One LONG PUSH will enter Each SHORT PUSH will scroll through
reaction time options setting reaction time options.
*DECLINATION
The angular difference between Magnetic North and True North is declination. The earth's magnetic
poles fluctuate over time. Go to http://ngdc.noaa.gov/seg/geomag/declination.shtml or check your
B
local geophysical center. Declination also varies depending on your exact location. Set the
declination on the ST-5000 to offset the difference between Magnetic North and True North.
Declination map
is for illustrative
purposes only.
LONG
PUSH
One LONG PUSH will start INITIALIZATION
SEQUENCE. Once the initialization sequence is
complete, the compass is in standby mode.
2° UNITS OF DECLINATION: RED CONTOURS POSITIVE (EAST), GREEN NEGATIVE (WEST)
D
SHORT
PUSH
One SHORT PUSH to validate.
D
> ALTERNATES <
SHORT
PUSH
GREEN light shows compass is CALIBRATED.
RED lights signal the calibration was
unsuccessful and MUST BE REDONE.
One SHORT PUSH to finalize.
D
TIME
OPTIONS
> BLINKS <
SHORT
PUSH
One SHORT PUSH will set
desired display time to finalize.
