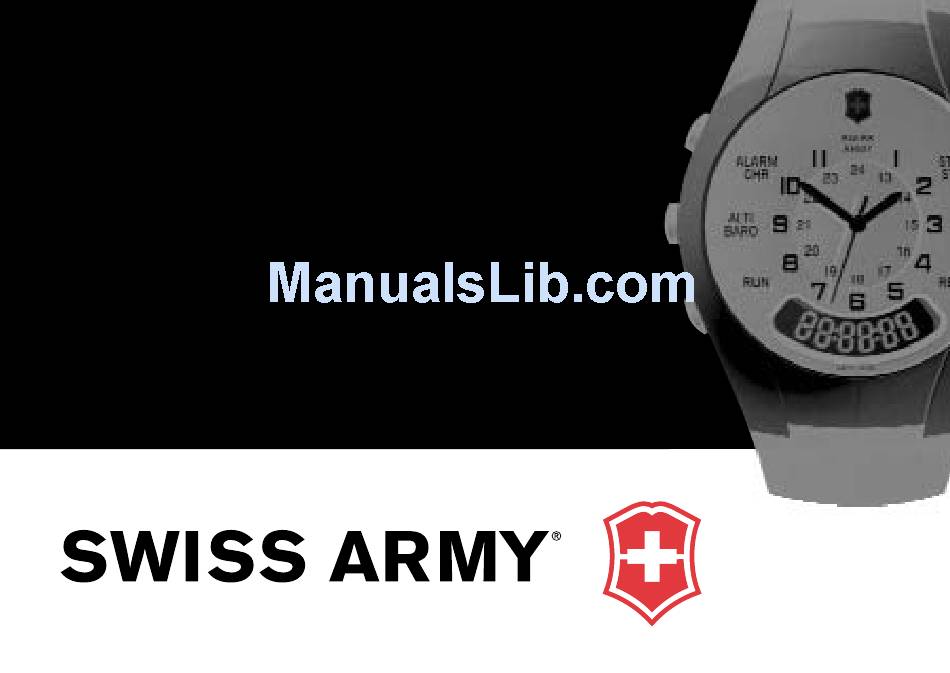

  • Page 1 ST-4000 CHRONO...
  • Page 2 In 1897 the Original Swiss Army ™ Knife was created in the small village of Ibach, Switzerland. Since that time, Victorinox ® has become known in more than 100 countries for precision, quality, functionality and versatility. This century old heritage has been extended to Swiss Army Watches and Timepieces. Each reflects the ingenious design and outstanding durability we’ve come to stand for over the years.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Setting the Time ..........2 Using the ST-4000 Altimeter and Barometer .
  • Page 4 THREE HAND ANALOG QUARTZ TIME SET INSTRUCTIONS Function Setup Buttons Buttons 1 Clock Start/Stop Function Button (Alarm CHR) 2 Altimeter Crown Function (Alti Baro) Reset 3 Sport Button Function (Run) NOTE: The ST-4000 Chrono has a pull-out crown with two positions (0 and 1). - 2 -...

  • Page 5: Setting The Time

    THREE HAND ANALOG QUARTZ SETTING THE TIME - Pull Out Crown A. Pull out the crown to position (1). B. Rotate the crown away from you until the desired time is set. C. Push in the crown, returning it to position (0). The time is now set. NOTE: Never operate the crown when the watch is wet.

  • Page 6: Using The St-4000 Altimeter And Barometer

    USING THE ST-4000 ALTIMETER AND BAROMETER (ALTITUDE) The ST-4000 shows altitude below or above sea level from -4,000 feet to +30,000 feet in 5-foot increments. ALTIMETER AND BAROMETER DETAILS How the Altimeter Works The ST-4000 measures altitude by detecting differences in air pressure and displaying this information as altitude above sea level.
  • Page 7 Altitude Offset A weather change will produce a change in barometric pressure that causes an offset in the displayed altitude from the actual altitude. This offset is consistent at any altitude, so, if you start a hike with the altitude reading 50 feet too high, it will read 50 feet too high at any elevation on your hike.
  • Page 8 Effects of Atmospheric Pressure Changes A change in atmospheric pressure will make the displayed altitude different from the known altitude of a landmark. The ST-4000 can be adjusted so that it displays the same altitude as the landmark. Minor atmos- pheric pressure changes may cause the displayed altitude to vary from the actual altitude by 50 feet.
  • Page 9 Thermometer Accuracy The ST-4000 measures the ambient air temperature with a sensor inside its case. When the watch is worn against your skin, temperature readings will be affected significantly. Direct sunlight can also cause the ST-4000 to give high readings. For accurate readings, remove the watch from your wrist and place away from direct sunlight.

  • Page 10: Function/Setup Buttons

    Function Setup Buttons Buttons 1 Clock Start/Stop Function Button (Alarm CHR) 2 Altimeter Crown Function (Alti Baro) Reset 3 Sport Button Function (Run) - 8 -...

  • Page 11: Digital Display Controls

    DIGITAL DISPLAY CONTROLS Function Formats 1 A. Clock ........12 or 24 hour B.

  • Page 12: Functions

    FUNCTIONS 1. Pressing the Clock (Alarm CHR) Button A. Displays the Clock (first press) B. Displays the Calendar (second press) C. Displays the Alarm (third press) D. Displays the Stopwatch (fourth press) 2. Pressing the Altimeter (Alti Baro) Button A. Displays the Altimeter (first press) B.
  • Page 13 Clock Function Start/Stop (Alarm CHR) Button Crown Altimeter Function (Alti Baro) Reset Button Sport Function (Run) - 11 -...

  • Page 14: Setup

    SETUP Pressing the Start/Stop Button 1. Adjusts the blinking digit (if an arrow at the left of the display is toggling, it adjusts in the arrow direction). 2. Toggles between formats in the format selection mode. Pressing the Start/Stop Button Starts and stops the Stopwatch when the Stopwatch is displayed.
  • Page 15 SETUP STEP-BY-STEP Selecting the Clock Format (see page 10, item 1 for functions) Step 3 Change Clock Format Press the Start/Stop Button to Step 1 Clock Function toggle between 12 and 24 hours. Press the Clock Button to display the Clock. Step 2 Selection Mode Step 4 Exit Clock Format Hold the Reset Button 1 second–...
  • Page 16 Holding the Reset Button 1 second Enters the format selection mode. Step 3 Advance Hours SETUP STEP-BY-STEP Clock Setup (see page 10, item 1 Press the Start/Stop Button for functions) to advance the hours. Step 1 Clock Function Press the Alarm CHR Button to display the Clock.
  • Page 17 Step 5 Advance minutes Step 7 Advance Seconds. Press the Start/Stop Button Press the Start/Stop Button to advance the minutes. to advance the seconds. Step 6 Seconds Blink Step 8 Exit Setup Press the Reset Button– Press the Reset Button–the seconds the minute is set and are set and setup mode exited.
  • Page 18 SETUP STEP-BY-STEP Selecting the Calendar Format Step 3 Change Calendar Format Step 1 Calendar Function Press the Start/Stop Button to Press the Clock Button to display toggle between month/day/year the Calendar. and day/month/year. Step 2 Selection Mode Step 4 Exit Calendar Format Hold the Reset Button 1 second–the Press the Reset Button when the date in the current calendar format...
  • Page 19 SETUP STEP-BY-STEP Calendar Setup (see page 10, item 1 for functions) Step 3 Advance Months Step 1 Calendar Function Press the Start/Stop Button to Press the Clock Button to advance the months. display the Calendar. Step 2 Months Blink Step 4 Days Blink Press the Reset Button–...
  • Page 20 Step 5 Advance days Step 7 Advance years Press the Start/Stop Button to Press the Start/Stop advance the days. Button to advance the years. Step 6 Year blinks Step 8 Exit Setup Press the Reset Button–the day Press the Reset Button–the year is set and the year digits blink.
  • Page 21 SETUP STEP-BY-STEP Step 3 Activate Alarm Activating the Alarm and Press the Start/Stop Button to toggle Setting Alarm Time between on and off. You can only set (see page 10, item 1 for functions) the alarm time when the Alarm is on. Step 1 Alarm Function Press the Clock Button to display the Alarm.
  • Page 22 Step 5 Advance Hours Step 7 Advance Minutes Press the Start/Stop Button Press the Start/Stop Button to to advance the hour. advance the minutes. Step 6 Blink Minutes Step 8 Exit Setup Press the Reset Button– Press the Reset Button to exit. the hour is set and the The Alarm icon indicates the minutes blink.

  • Page 23: Adjusting The Altimeter And Barometer

    ADJUSTING THE ALTIMETER AND BAROMETER Adjust at a known altitude when you want precise altitude readings or when you want to update the sea level barometer. (see page 10, item 2 for functions) Step 1 Altimeter Function Step 3 Change Altitude Press the Altimeter Button to Press the Start/Stop Button to move display the Altimeter.
  • Page 24 Effect on Sea Level Barometer When you adjust the altitude the sea level barometer is set at the same time. Sea Level Barometer Before Altitude Adjust Sea Level Barometer After Altitude Adjust - 22 -...
  • Page 25 SETTING THE BAROMETER (see page 10, item 2 for functions) Barometer & Altimeter Adjust from a Weather Report Updating the barometer from a broadcast or airport weather report will adjust the altitude concurrently. Step 1 Barometer Function Step 3 Change Barometer Press the Altimeter Button to Press the Start/Stop Button to move display the Barometer.
  • Page 26 Effect on Altimeter When you adjust the sea level barometer, the altitude is set at the same time. Altimeter before Barometer Adjust Altimeter after Barometer Adjust - 24 -...
  • Page 27 ALTIMETER FORMATS Selecting the Altimeter Formats (see page 10, item 2 for functions) In the Altimeter, select “f” (feet) or In the Thermometer, select “m” (meters). “F” (degrees Fahrenheit) or “C” (degrees Celsius). In the Barometer, select “Hg” (inches of mercury) or “mb” (millibars).
  • Page 28 Step 1. Press the Altimeter Button Step 3. Press the Start/Stop Button to display either the Altimeter, the to toggle between the unit formats. Barometer, or the Thermometer. Step 2. Hold the Reset Button 1 Step 4. When the desired format is second–the unit symbol will blink.

  • Page 29: Altimeter And Barometer Details

    ALTIMETER AND BAROMETER DETAILS (see page 10, item 2 for functions) Setting the Barometer-Altimeter Synchronization Synchronization is set at the factory. You can resynchronize after a year or two if, after altitude adjustment, the ST-4000 barometer is repeatedly and significantly different from the sea level barometer given by a current, local weather report.
  • Page 30 Step 4. Press the Start/Stop Button If desired, synchronize the ST-4000 to move the Barometer up or down Thermometer to the temperature in the arrow direction. shown by another thermometer by repeating this procedure in the Thermometer display. Step 5. When you reach the correct reading, press the Reset Button to exit.

  • Page 31: Stopwatch Operation

    STOPWATCH OPERATION (see page 10, item 1 for functions) Starting, Stopping, and Resetting Start and stop the Stopwatch by pressing the Start/Stop Button. You can record times of up to 23:59:59 (hours). Resolution is to .05 second to 29:59.95 (minutes), then in seconds. Reset by pressing the Reset Button. Resetting puts the time recorded into memory as a split.
  • Page 32 3 seconds to allow you to view the split time. You can continue to create splits this way until the total number of splits in memory is 32. Press the Start/Stop Button to stop the Stopwatch. Press the Reset Button to view the splits you have created in memory.
  • Page 33 STOPWATCH Example 1 : Time Recorded and Recalled (see page 10, item 1 for functions) Step 1. Press the Stopwatch Step 3. Press the Start/Stop Button Function Button to display the to stop the Stopwatch. Stopwatch. Step 2. Press the Start/Stop Button to start the Stopwatch.
  • Page 34 Step 4. Press the Reset Button to Step 6. Press the Start/Stop Function reset the Stopwatch. Button to return to the Stopwatch. If there is more than one split in memory, pressing the Function Button will show each split and exit after the last one.
  • Page 35 STOPWATCH Example 2: Recording and Reviewing a Split Group Four Laps on a Quarter-Mile Running Track Step 1. Press the Start/Stop Button to start the Stopwatch. Lap 1 Step 2. Press the Reset Button 3 at the end of laps 1, 2, and 3. Each time you press the Reset Button the display freezes for 3 seconds so Lap 2 you can read your split time.
  • Page 36 Step 3. Press the Start/Stop Button Step 5. Press the Reset Button to to stop the Stopwatch at the end of enter Stopwatch Memory. The first the 4th lap. split you see in memory (split 01) is the first split you recorded, the 1st lap.
  • Page 37 Step 6. Press the Reset Button. The Step 7. Press the Reset Button. next split (lap 2) is displayed along The next split (lap 3) is displayed with its split number (02). along with its split number (03). - 35 -...
  • Page 38 Example 2: Recording and Reviewing a Split Group (continued) Step 8. Press the Reset Button. Step 9. Press the Reset Button. The next split (lap 4) is displayed The total time for the split group (all 4 laps) is displayed indicated along with its split number (04).
  • Page 39 ST-4000 CHRONO SPORT FUNCTIONS (see page 10, item 3 for functions) Accumulating Altitude Accumulation can be switched on or off by pressing the Start/Stop Button when either Vertical Ascent or Vertical Descent is displayed. The arrow at the left of the display blinks when the accumulator is on. Remember to turn the accumulators on before beginning your activity and off when you finish;...
  • Page 40 Resetting the Altitude Accumulators, Runs and Maximum Altitude Press the Reset Button when you are in the function you want to reset, then press the Start/Stop Button to reset the blinking display. Altitude accumulators reset to zero and maximum Altitude resets to current altitude. Use the Sport Function Button to move from one display to another.
  • Page 41 USING THE SPORT FUNCTIONS IN HIKING AND CLIMBING Example: Recording vertical ascent and maximum altitude on a hike. (see page 10, item 3 for functions) Step 1. At the trailhead reset Step 2. Start the Vertical Vertical Ascent Ascent accumulator. Arrow begins to blink.
  • Page 42 Step 3. Reset Maximum Altitude Step 4. After completing your hike, turn the accumulator off If your hike is a loop or out-and-back, accumulated ascent and descent will be the same. Remember that accumulation does not begin until you have climbed 30 feet. If you want to record your accumulated vertical or maximum altitude for a week, month, or year, do not reset until the end of the period you want to record.
  • Page 43 USING THE SPORT FUNCTIONS IN SKIING Example: Recording vertical descent and runs during a day of skiing. (see page 10, item 3 for functions) Step 1. At the lift reset Vertical Step 2. Start the Vertical Descent Descent accumulator.Arrow begins to blink - 41 -...
  • Page 44 Step 3. Reset the Run Counter Step 4. When you finish skiing, turn the accumulator off If you want to record your accumulated vertical or runs for a week, month, or year, do not reset until the end of the period you want to record. Since Vertical Descent and Vertical Ascent are usually equal in skiing, you can use the Vertical Ascent accumulator to record total vertical for a ski trip or a year if you wish.

  • Page 45: Sport Functions

    ST-4000 CHRONO SPECIFICATIONS Altimeter Current Altitude: -4,000 to 30,000 feet in 5 foot increments -1,330 to 10,000 meters in 1 meter increments Weather Sea Level Barometer: 28.84 to 31.00 inches of mercury with .01 resolution 977 to 1,050 millibars with 1 millibar resolution Temperature: 32º...
  • Page 46 Clock / Calendar Time of Day: 12 or 24 hour format; to 1 second Alarm: To one minute Date: Month/day/year (US) format Day/month/year (European) format Stopwatch Elapsed Time and Splits: Resolution .05second to 29:59.95, 1 second 30:00 to 23:59:59 Memory: Up to 32 splits - 44 -...

  • Page 47: Battery

    General Specifications Water Resistance: To 100 feet / 30 meters Battery: CR2032 Lithium; approximately 4-year life Display: Single row, 6 characters Operational Temperature 32º F to 122º F Range: 0º C to 50º C BATTERY Your Swiss Army ® Brand timepiece may be powered by a 1.55 volt silver oxide watch battery.

  • Page 48: Warranty

    THREE-YEAR LIMITED WARRANTY: Swiss Army Brands, Inc. warrants, for a period of three years from the date of original purchase, the face, hands and movement of this Swiss Army ® Brand Watch to be free from defects in material and workmanship. If any of the aforementioned parts are defective we will, at our option, either repair or replace the watch, without charge.
  • Page 49 warranties of merchantability or fitness for a particular purpose, are hereby disclaimed. In no event shall Swiss Army Brands, Inc. or its affiliates be liable for special, indirect, incidental or consequential damages whether in contract, tort,negligence, strict liabil- ity or otherwise. Some states do not allow limitations on how long an implied warranty lasts and/or the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you .
  • Page 51 THREE-YEAR LIMITED WARRANTY REPAIR COUPON Name ______________________________________________________ Address ____________________________________________________ City ________________________________________________________ State ________ Zip ______________Date of Purchase ____________ Purchased from______________________________________________ Repair Coupon. To be detached and submitted with watch only when watch is returned for repair covered by the warranty.
  • Page 52 SWISS ARMY BRANDS, INC. One Research Drive, P.O. Box 874 Shelton, CT 06484-0874 Consumer Department: 800 442 2706 www.swissarmy.com SAS05168 2/05...
