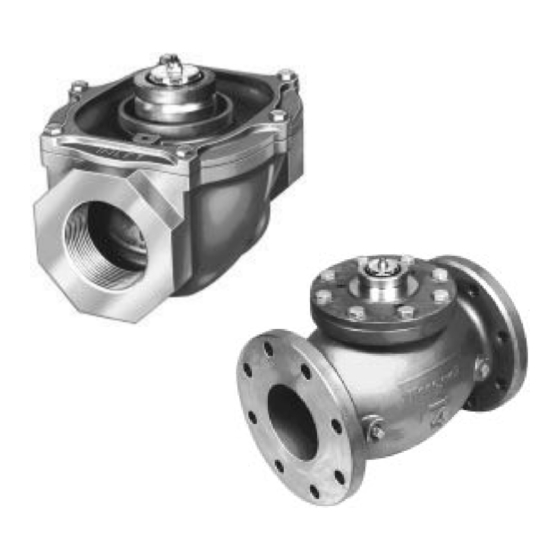

The V5055 Gas Valves are used with the V4055,
V4062, and V9055 Fluid Power Actuators to con-
trol gas flow to commercial and industrial burners.
■ Used with natural or liquefied petroleum (LP) gases.
■ V5055 normally closed valves are rated for final
shutoff service (safety shutoff).
■ V5055A,C,D,E Valves are for On-Off service.
■ V5055B Valve has a characterized guide and in
combination with the V4055, V4062, and V9055
Fluid Power Actuators, provides slow-opening, hi-
lo-off, and modulating functions respectively.
■ V5055C,E Valves have a double seal and are used
with V4055D,E Actuators to provide proof-of-clo-
sure switch and valve seal overtravel interlock.
■ V5055D,E Valves are for high pressure applications
(see Table 1).
บริ ษ ั ท เอดี ด ี เฟอร์ เ นส จํ า กั ด
ADD FURNACE CO.,LTD.
44 ซอยบรมราชชนนี 70 ถนนบรมราชชนนี แขวงศาลาธรรมสพน์ เขตทวี ว ั ฒ นา กรุ ง เทพฯ 10170
โทร: 02-888-3472 โทร: ออกแบบ:08-08-170-170 แฟกซ์ : 02-888-3258
https://www.add-furnace.com E-mail:
Industrial Gas Valves
■ Seven valve sizes from 3/4 to 3 inches have NPT
threaded connections. Models are available with
BSP-PL threads. V5055A,B,C Valves are available
in a 4 inch size and have flange connections.
■ Most models have 1/4 inch upstream and down-
stream top and plug. BSP-PL thread models have
1/4 inch upstream tap and plug.
■ Valve body rating of 75 psi (517.1 kPa).
■ Yellow SHUT indicator attached to the valve stem
provides an indication of the valve closed position.
■ Unpainted, die-cast aluminum body.
CONTENTS
Specifications .................................................. 2
Ordering Information ..................................... 2
Installation ...................................................... 6
Operation and Checkout ................................. 8
Service Information ........................................ 9
F. P. • Rev. 11-94 • ©Honeywell Inc. 1994 • Form Number 60-2307-10
1
sales@add-furnace.com
V5055A-E
60-2307-10
