MOTORISED MID-POSITION DIVERTER VALVE
V4073A

FEATURES

I
Spring return action
I
Three position operation
I
Powerhead replaceable without
draining down
I
Manual lever for filling/draining down
I
Quiet operation, minimal power
consumption
I
Provides electrical output to
boiler and/or pump

OPTIONS

I
22mm/28mm or
3
/
"/ 1" connections
4
I
Replacement motor
I
Replacement powerhead
I
Replacement ball and
'O' ring kit
© Honeywell Control Products and Systems, Issue 10

APPLICATION

The V4073A Valve has been designed to control the flow of water
in domestic central heating systems, where both radiator and hot
water cylinder circuits are pumped. It is typically suited for small
to medium sized installations.
The V4073A Mid-position Diverter Valve should be used in
conjunction with a room thermostat and cylinder thermostat to
provide full temperature control of a conventional, fully pumped
central heating installation. When used in this way, the control
system is known as Sundial Y Plan and the components can be
connected together using the Sundial Plan Wiring Centre which
has dedicated terminations and there is no need for a wiring
diagram.
An alternative method of wiring is to use the Honeywell 10-way
Junction Box (42002116-001) together with the Honeywell
Sundial Plans Wiring Booklet.
4.21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V4073A and is the answer not in the manual?

Questions and answers

Alan Harris
April 28, 2025

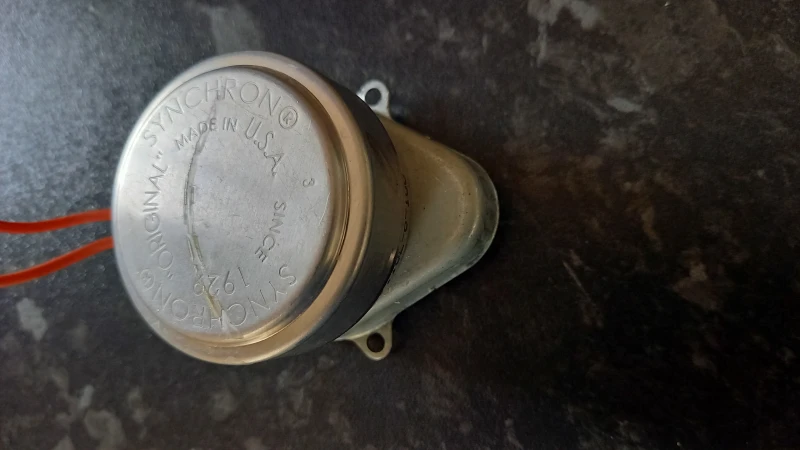

What is the tread of the two screws that hold the Syncron motor to the valve body. The two screws to fit the holes on the image above to fix down the motor to the valve.

User image 680f821c2463a
1 comments:
Mr. Anderson
May 15, 2025

The thread size of the screws for the Honeywell V4073A Syncron motor to valve body attachment is not provided in the context.

This answer is automatically generated

Summary of Contents for Honeywell V4073A

  • Page 1 Provides electrical output to boiler and/or pump APPLICATION The V4073A Valve has been designed to control the flow of water in domestic central heating systems, where both radiator and hot water cylinder circuits are pumped. It is typically suited for small OPTIONS to medium sized installations.
  • Page 2 = CH only (port A open), 240V output on orange wire 240V in grey wire = Valve held in last position (but if last position was CH, approx 100V output on orange wire) © Honeywell Control Products and Systems, Issue 10, 4.21...
