Summary of Contents for Scotsman C2648R

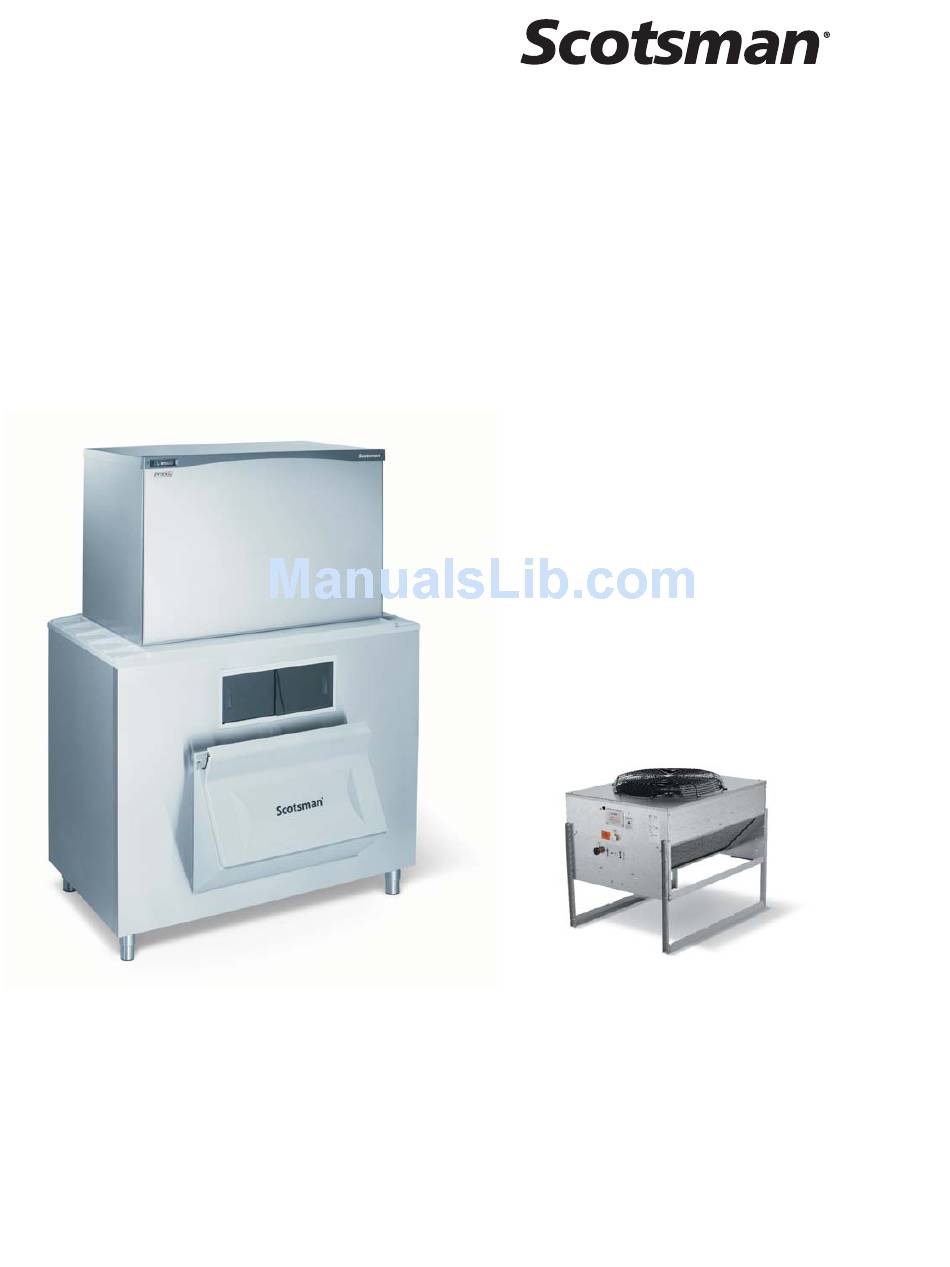

- Page 1 Installation and User's Manual for Remote Condenser Modular Cuber Model C2648R...
-
Page 2: Table Of Contents
C2648 Remote Condenser Models - User Manual Introduction The design of this modular remote cuber is the This installation and user manual is divided into result of years of experience with remote ice three sections: Installation, Use and Operation and machine refrigeration systems. -
Page 3: Installation: Product Specifications
C2648 Remote Condenser Models - User Manual Installation: Product Specifications Location Limitations Power Supply This ice system is made up of three parts, the ice Minimum Maximum making machine, or head; the remote condenser; 208-230 volt and the interconnecting tubing. The ice making 198 volts 253 volts model... -
Page 4: Model Number Description
Vari-Smartä Adjustable ice level system • Smart-Boardä Advanced feature control Scotsman assumes no liability of responsibility of any kind for products manufactured by Scotsman that have been altered in any way, including the use of any part and/or other components not specifically approved by Scotsman. -
Page 5: Product Description And Electrical Requirements
• Coil – not previously used with mineral oil system. Virgin coil preferred. • Correct size (internal volume) and capacity (BTUH). Contact Scotsman for data. • Includes a headmaster valve for discharge pressure control rated at 217 PSIG. • Fan motor on all the time or controlled to be on whenever the ice machine is operating. -
Page 6: Condenser And Ice Machine Layouts
C2648 Remote Condenser Models - User Manual Condenser and Ice Machine Layouts 988.36 956.61 38.91 37.66 PRC241-32A 749.30 29.50 LIQUID LINE 1/2 IN. MALE CPLG. Ø .88 DISCHARGE LINE ELECTRICAL 5/8 IN. MALE CPLG. INLET 809.32 31.86 880.11 34.65 598.58 FLOW 23.57 469.37... -
Page 7: Water
Adjustments of purge due to local water conditions A triple head filter is recommended. Either the are not covered by warranty. Scotsman SSM3 taste and odor filter system, or the ADS-AP3 AquaPatrol system. Water flow is 2.5 GPM when filling the reservoir. -
Page 8: Panel Removal
Do not lift on the sump bottom. Scotsman BH1100, BH1300, BH1600: Position back of ice machine about 2 3/8" from back of bin. -
Page 9: Remote Condenser Location
Use the following for planning the placement of the Configurations that do NOT meet these condenser relative to the ice machine requirements must receive prior written authorization from Scotsman. Location Limits - condenser location must not exceed ANY of the following limits: Do NOT: •... -
Page 10: For The Installer: Remote Condenser
C2648 Remote Condenser Models - User Manual For The Installer: Remote Condenser Locate the condenser as near as possible to the Roof Attachment interior location of the ice machine. Install and attach the remote condenser to the roof Note: The location of the condenser is relative to of the building, using the methods and practices of the ice machine is LIMITED by the specification on construction that conform to the local building... -
Page 11: Precharged Line Routing
C2648 Remote Condenser Models - User Manual Precharged Line Routing Do not connect the precharged tubing until all 2. Have the roofing contractor cut a minimum hole routing and forming of the tubing is complete. See for the refrigerant lines of 2”. Check local codes, a the Coupling Instructions for final connections. -
Page 12: Coupling Instructions
C2648 Remote Condenser Models - User Manual Coupling Instructions The couplings on the ends of the pre-charged line It is important that ONLY the nut on the sets are self-sealing when installed properly. pre-charged tube be turned, or the diaphragms will Follow these instructions carefully. -
Page 13: Plumbing Requirements
C2648 Remote Condenser Models - User Manual Plumbing Requirements All models require connection to cold, potable 1. Connect water supply to water inlet fittings. water. A hand actuated valve within site of the machine is required. There is a single 3/8” flare nut 2. -
Page 14: Electrical
C2648 Remote Condenser Models - User Manual Electrical The machine is not supplied with a power cord, one Electrical connections are made inside the junction must either be field installed or the machine box in the back panel of the ice machine. hard-wired. -
Page 15: Final Check List
C2648 Remote Condenser Models - User Manual Final Check List: 1. Is the unit located indoors in a controlled environment? 2. Is the unit located where it can receive adequate cooling air? 3. Has the correct electrical power been supplied to the machine? 4. -
Page 16: Initial Start Up
ON when the curtain moves away from the F. water F. water evaporator and OFF. One of the curtains will C2648R 11 - 13 13 - 15 cause the period in the display code to blink ON when the curtain is moved away and OFF when returned to its normal position. -
Page 17: Adjustments
C2648 Remote Condenser Models - User Manual Adjustments Bridge Thickness - For A Service Tech Only 1/8 - 3/16" bridge 1. Push and hold Off till the machine stops. 2. Remove evaporator cover. 3. Remove left curtain. 4. Use a box wrench and rotate the bridge thickness adjustment screw in 1/8 turn increments CW to increase bridge thickness. -
Page 18: Use And Operation
Note: A Component Indicator Light switches ON to determined that it may need to be cleaned. Contact indicate that the component is operating. an authorized Scotsman service agent and have the machine cleaned, de-scaled and sanitized. Note: There are three Curtain Switch lights, SW1, SW2 and the Period in the display code. -
Page 19: Switch Panel Area
C2648 Remote Condenser Models - User Manual Switch Panel Area There is standard front access to two switches – on Adjustable ice level control (optional) and off. When this option is present there is an adjustment knob and an additional indicator light to the right of Status De-Scale the four standard indicator lights. -
Page 20: Options And Other Information
C2648 Remote Condenser Models - User Manual Options and Other Information Smart-Board When this option is present there is an additional The cuber drops ice in large sections. That ice will display panel in the area below the main control break up into random parts as it falls into the bin, board. -
Page 21: Cleaning, Sanitation And Maintenance
12. Remove evaporator covers, set aside. 5. Wait until the Purge Valve light goes out, then 13. Remove right side panel and liner, set aside. pour 24 ounces of Scotsman Clear 1 Scale remover into the water reservoir. 14. Remove all three curtains. Set aside. - Page 22 32. Push and release the green ON button to resume ice making.Remove and discard all ice. Clean Storage Bin Mix a solution of Scotsman Nickel Safe ice machine cleaner and wash all interior surfaces of the ice storage bin to remove any mineral scale build up.
-
Page 23: Remote Condenser And Other Maintenance
C2648 Remote Condenser Models - User Manual Remote condenser and other maintenance The condenser fins will need to be cleaned. Water Level Sensor Push and release the Off button. Wait until the The water sensor probes and probe housing must machine stops. -
Page 24: What To Do Before Calling For Service
C2648 Remote Condenser Models - User Manual What to do before calling for service Reasons the machine might shut itself off: To Manually Reset the machine. • Push and release the Off button. Lack of water. • Freeze cycle takes too long. •... - Page 25 SCOTSMAN ICE SYSTEMS 775 Corporate Woods Parkway, Vernon Hills, IL 60061 800-533-6006 www-scotsman-ice.com 17-3318-01...
