Summary of Contents for Scotsman SCR33

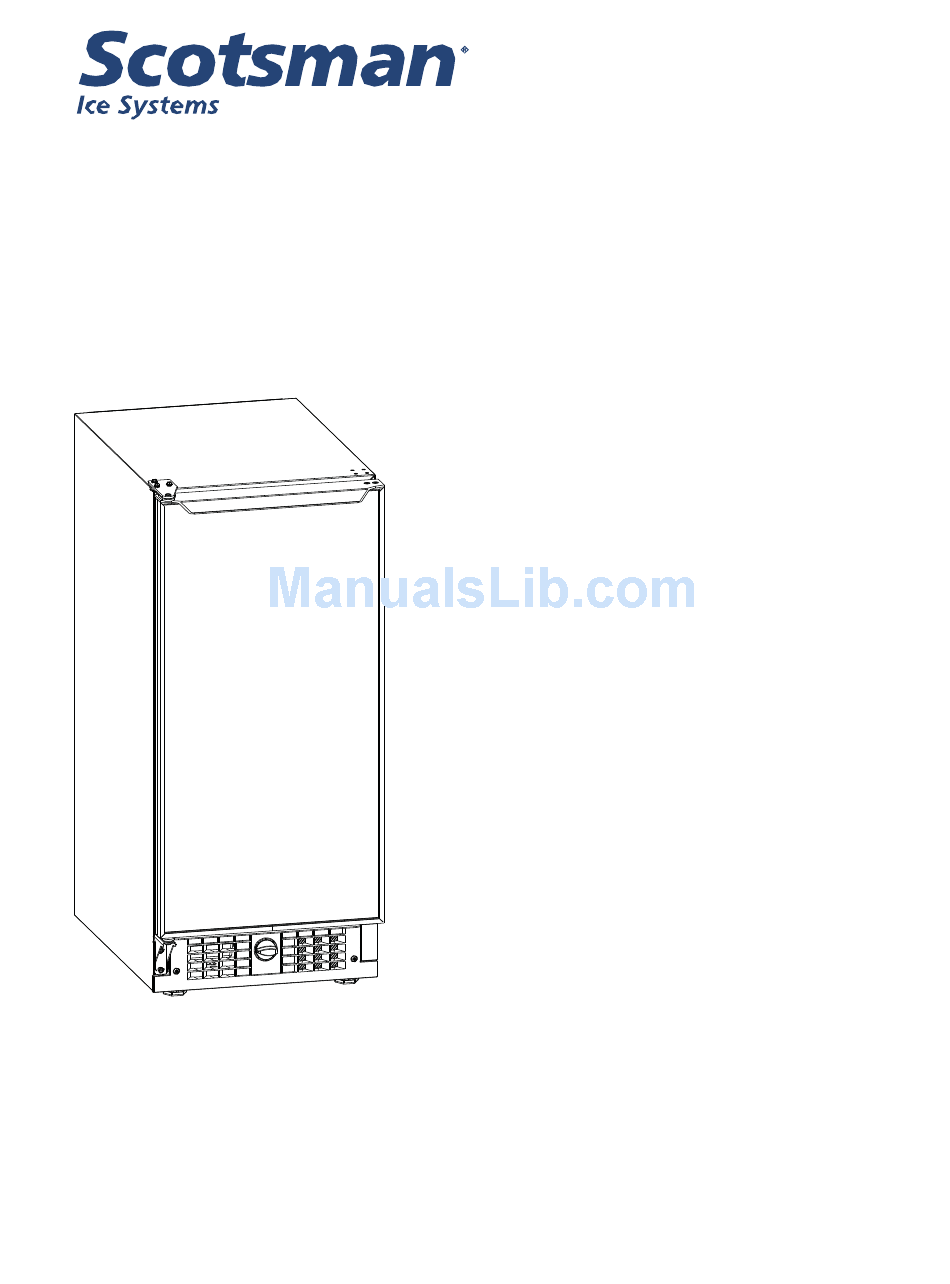

- Page 1 Installation and User's Manual for Refrigerator SCR33 Model...
-
Page 2: Table Of Contents
SCR33 User's Manual Introduction Congratulations on your purchase of a Scotsman refrigeration product. For future reference, keep this guide in a safe, accessible location. If you need additional information or assistance, please contact your seller or Scotsman directly. Contact information appears on the back cover of this guide. -
Page 3: Specifications
Adjustable tempered glass shelves. Scotsman assumes no liability or responsibility of • any kind for Scotsman brand products that have Sleek, streamlined interior. Allows flexible been altered in any way, including the use of any shelf locations to meet varying food and parts and/or other components not specifically beverage storage needs. -
Page 4: General Information
Altering, cutting of power cord, removal of power unit. Consult the installation guide before any cord, removal of power plug, or direct wiring can installation begins. Scotsman contact information cause serious injury, fire and or loss of property appears on the rear cover of this guide. -
Page 5: Installation
SCR33 User's Manual Installation Your unit has been designed for either Cut-Out Dimensions free-standing or a built-in installation. When built-in, your unit does not require additional air space for Follow the cut-out drawing The 15-1/4" width allows top, sides or rear. However, the front grille must 1/4"... -
Page 6: Dimensions
SCR33 User's Manual Dimensions 23 1/2” 34 1/4” 4 1/16” 15” May 2011 Page 5... -
Page 7: Door Swing
The units are designed to operate between 50°F Your unit has a zero clearance for the door to open (10°C) and 100°F (37°C). High ambient 90°. Scotsman recommends a minimum door temperatures (100°F [37°C] or higher) may reduce clearance of 2" to accommodate the handle if the the unit’s ability to reach low temperatures. -
Page 8: Door Alignment And Adjustment
SCR33 User's Manual Door Alignment and Adjustment Align and adjust the door if it is not level, or is not Door Swing Change sealing properly. Location of the unit may make it desirable to mount If the door is not sealed the unit may not cool the door on the opposite side of the cabinet. -
Page 9: Door Swing Change Instructions
SCR33 User's Manual Door Swing Change Instructions 2. Reinstall the two screws. Remove top hinge, and door: 1. Hold door to keep it from falling. Prepare door for reinstallation: 2. Remove top hinge 1. Remove plastic hole plug from top of door from cabinet by removing handle and reinstall on opposite side. -
Page 10: Leveling Information
SCR33 User's Manual Leveling Information It is recommended that the unit is level. 3. Re-check the leveling, from front to back and side to side. Make any necessary adjustments. The 1. Use a level to check the unit’s top surface should be approximately 1/8"... -
Page 11: Air Flow
2. Allow temperature to stabilize for 24 hours before adjusting again. Initial Startup All Scotsman controls are preset at the factory. Initial startup requires no adjustments. IMPORTANT Scotsman recommends allowing the unit to run overnight before loading refrigerator with product. -
Page 12: Removing And Installing Interior Shelves
SCR33 User's Manual Removing and Installing Interior Shelves 1. Pull shelf out about 6" (1), until back of shelf Removing and Installing Door Shelves clears the rib on the right-hand side. To remove the door 2. Tilt up right-hand edge of shelf (2). -
Page 13: Removing And Installing Grille
SCR33 User's Manual Removing and Installing Grille WARNING Installing grille: Disconnect electric power to the unit before 1. Place the hook-hinge located on the rear bottom removing the grille. side of the grille (3) onto the front lip of the unit base. -
Page 14: Maintenance
SCR33 User's Manual Maintenance cause personal injury and damage to the inner Exterior Cleaning lining. Clean surfaces with a mild detergent and warm IMPORTANT water solution. The drain pan was not designed to capture the Do not use solvent-based or abrasive cleaners. -
Page 15: Condenser Cleaning
SCR33 User's Manual Condenser Cleaning Interval - Every Six Months WARNING To maintain operational efficiency, keep the front Electrical Shock Hazard. Disconnect power before grille free of dust and lint, and clean the condenser servicing. Before operating, replace all panels. -
Page 16: Service
If Service is Required If you do not understand a troubleshooting remedy, or your product needs service, contact your dealer or Scotsman directly. Contact information appears on the rear cover of this guide. When you call, you will need your product model and serial numbers. -
Page 17: Service Diagnosis
SCR33 User's Manual Service Diagnosis Problem Possible Cause and Remedy Frost on the rear wall is normal and will melt during each off cycle. If there is excessive build-up of 1/4” or more, manually defrost the unit. Ensure the door is closing and sealing properly. -
Page 18: Service Parts
SCR33 User's Manual Service Parts Door Rear View Rear View Front View Item Part Number Number Description 02-4655-10 Gasket 02-4655-04 Door shelf 02-4655-08 Edge trim 02-4655-05 Shelf 02-4655-11 Crisper 02-4655-02 Dryer 02-4655-12 Hinge assembly 02-4655-14 Grill 02-4655-16 Fan motor and blade... -
Page 19: Wiring Diagram
SCR33 User's Manual Wiring Diagram Compressor Winding Resistance: at 72 degrees F. Start: 21.2 Ohms Run: 7.9 Ohms May 2011 Page 18... - Page 20 SCOTSMAN ICE SYSTEMS 775 Corporate Woods Parkway, Vernon Hills, IL 60061 800-726-8762 www.scotsman-ice.com 30308...
