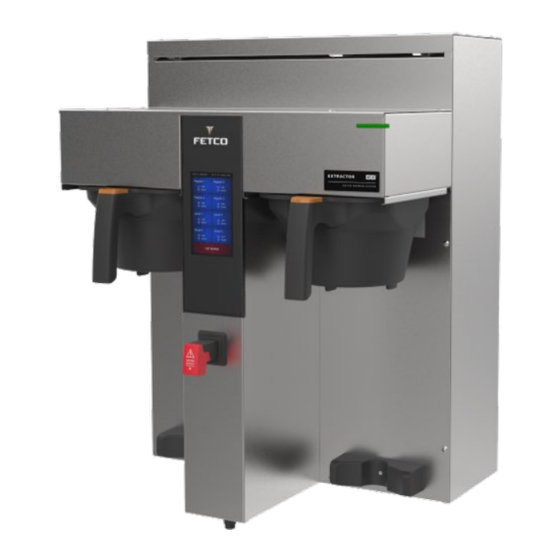

CBS-2231 & CBS-2232 Next Generation Brewing System
FETCO Next Generation-NG® Commercial Beverage Equipment
(Dispensers not included)
CONTACT INFORMATION
FETCO® FOOD EQUIPMENT TECHNOLOGIES COMPANY
600 ROSE ROAD
LAKE ZURICH • IL • 60047-0429 • USA
Product made in USA
INTERNET: www.fetco.com
PATENTS:https://www.fetco.com/pl,pages,patents,74.html
©2020-2023 FOOD EQUIPMENT TECHNOLOGIES COMPANY
COFFEE BREWER CBS-2230NG Series
TABLE OF CONTENTS
Rough-In Drawings ...................................................... 2
Electrical and Output Specifications ............................ 3
Programming Menu ..................................................... 5
Brew Recipes ............................................................... 5
Inputs ........................................................................... 7
Service ......................................................................... 7
Hot Water Portions ....................................................... 8
User's Guide and Operator Instructions
CBS-2231
(Plastic brew baskets are standard, brewers avalible with optional stainless steel brew baskets)
CBS-2232
PHONE: (800) 338-2699 (US & CANADA)
(847) 719-3000 (All Countries and International)
FAX:(847) 719-3001
EMAIL:sales@fetco.com
orders@fetco.com (to order parts and equipment)
fetco.com
techsupport@fetco.com (all service queries)
P215 REV000
Calibration .................................................................... 9
Outputs ....................................................................... 10
Counters ..................................................................... 11
Brewer Setup .............................................................. 12
Installation Guide........................................................ 14
Operator Training ....................................................... 15
Parts diagrams ........................................................... 18
February 2023
