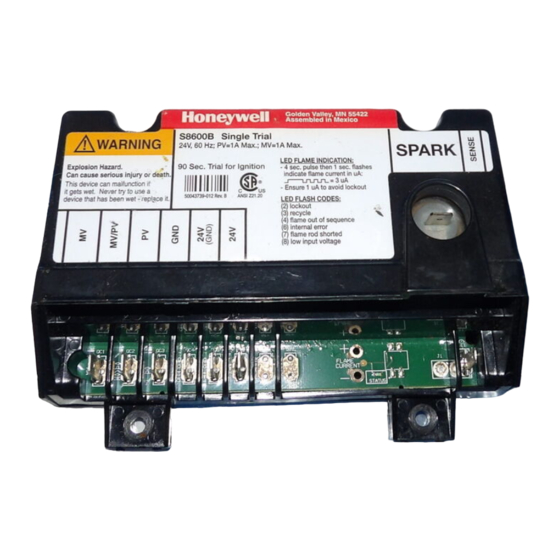

Honeywell S8600C Installation Instructions Manual

S8600B,C,H,M; S8610B,C,H,M;
S8670D,E,J,K Intermittent Pilot
Gas Ignition Control
APPLICATION
The 8600 family of ignition controls provide ignition sequence, flame monitoring and safety shutoff for intermittent pilot
gas fired heating appliances. These controls provide flame sense and operating sequences suitable for the application.
Table 1 describes the main features of each available model.
Valve
Igniter- Current
Sensor Rating
Type
Model @ 24 Vac
S8600B 1.0 A Pilot
b
Separate
and
1.0 A Main
S8600C Separate 1.0 A Pilot
and
1.0 A Main
S8600H Combination 1.0 A Pilot
c
and
1.0 A Main
S8600M Combination 1.0 A Pilot
and
1.0 A Main
S8610B Separate 1.0 A Pilot
and
2.0 A Main
S8610C Separate 1.0 A Pilot
and
2.0 A Main
S8610H Combination 1.0 A Pilot
and
2.0 A Main
S8610M Separate 1.0 A Pilot
and
2.0 A Main
S8670D Combination 1.0 A Pilot
and
2.0 A Main
บริ ษ ั ท เอดี ด ี เฟอร์ เ นส จํ า กั ด
ADD FURNACE CO.,LTD.
44 ซอยบรมราชชนนี 70 ถนนบรมราชชนนี แขวงศาลาธรรมสพน์ เขตทวี ว ั ฒ นา กรุ ง เทพฯ 10170
โทร: 02-888-3472 โทร: ออกแบบ:08-08-170-170 แฟกซ์ : 02-888-3258
https://www.add-furnace.com E-mail: sales@add-furnace.com
Table 1. Intermittent Pilot Ignition Models.
Trial for Ignition
Prepurge Pilot Sequence
Timing Ignition
None 15 or 90 Lockout
seconds,
as ordered
None 15 or 90 Continuous
seconds,
as ordered
None 15 or 90 Lockout
seconds,
as ordered
None 15 or 90 Continuous
seconds,
as ordered
None 15 or 90 Lockout
seconds,
as ordered
None 15 or 90 Continuous
seconds,
as ordered
None 15 or 90 Lockout
seconds,
as ordered
None 15 or 90 Continuous
seconds,
as ordered
30 15 or 90 Lockout
seconds seconds,
as ordered
Automatic Ignition Systems
ANSI Z21.20
®
INSTALLATION INSTRUCTIONS
Type Ignition Sequence Description
Spark and pilot gas ON until lightoff or trial for ignition ends. If
pilot fails to light, pilot gas and spark OFF (100% shutoff), and
lockout. Cycle "Call for Heat" to restart ignition sequence.
Spark and pilot gas ON until lightoff or trial for ignition ends. If
Retry pilot fails to light, pilot gas and spark OFF (100% shutoff). After
5 minute delay, a new trial for ignition is initiated. This sequence
continues until lightoff or "Call for Heat" is removed.
Spark and pilot gas ON until lightoff or trial for ignition ends. If
pilot fails to light, pilot gas and spark OFF (100% shutoff), and
lockout. Cycle "Call for Heat" to restart ignition sequence.
Spark and pilot gas ON until lightoff or trial for ignition ends. If
Retry pilot fails to light, pilot gas and spark OFF (100% shutoff). After
5 minute delay, a new trial for ignition is initiated. This sequence
continues until lightoff or "Call for Heat" is removed.
Spark and pilot gas ON until lightoff or trial for ignition ends. If
pilot fails to light, pilot gas and spark OFF (100% shutoff), and
lockout. Cycle "Call for Heat" to restart ignition sequence.
Spark and pilot gas ON until lightoff or trial for ignition ends. If
Retry pilot fails to light, pilot gas and spark OFF (100% shutoff). After
5 minute delay, a new trial for ignition is initiated. This sequence
continues until lightoff or "Call for Heat" is removed.
Spark and pilot gas ON until lightoff or trial for ignition ends. If
pilot fails to light, pilot gas and spark OFF (100% shutoff), and
lockout. Cycle "Call for Heat" to restart ignition sequence.
Spark and pilot gas ON until lightoff or trial for ignition ends. If
Retry pilot fails to light, pilot gas and spark OFF (100% shutoff). After
5 minute delay, a new trial for ignition is initiated. This sequence
continues until lightoff or "Call for Heat" is removed.
After prepurge, spark and pilot gas ON until lightoff or trial for
ignition ends. If pilot fails to light, pilot gas and spark OFF
(100% shutoff), and lockout. Cycle "Call for Heat" to restart
ignition sequence.
a
69-1954-01
