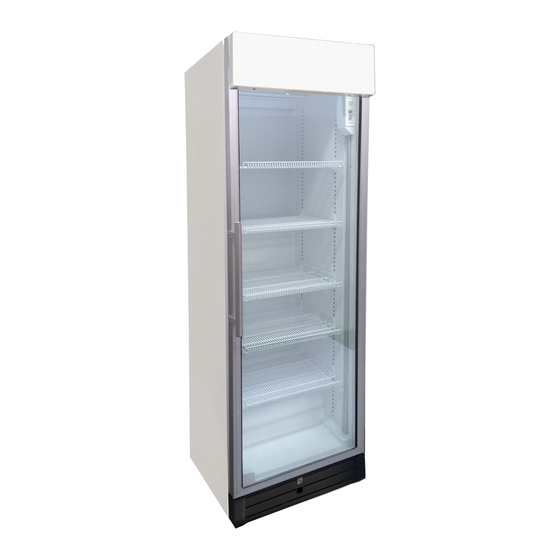

- Page 1 CD48DM-S300BD CD48DM-S300AD BEVERAGE REFRIGERATOR Instruction for Use...
-
Page 2: Safety Instructions
CAREFULLY READ THE INSTRUCTION MANUAL. If instructions are not followed, there is a risk of injury, damage of the appliance and loss of the right to free warranty service. The Manufacturer shall not be held liable for damage arising from the failure to observe the instructions contained in this manual. - Page 3 WARNING: risk of fire / flammable materials. Do not damage the appliance refrigeration system. It contains the refrigerant gas R600a. If the refrigeration system is damaged: Do not use any open flame. • Avoid sparks ― do not turn on any electrical appliances or lighting fixtures. •...
- Page 4 they could squeeze and damage the electrical cord. This can cause a short circuit and a fire. Make sure that the plug of the electrical cord is not squeezed by the back wall – of the appliance or otherwise damaged. A damaged plug can be the cause of a fire! CAUTION! If the installed interior lighting diode (LED) lamp for the cooling –...
-
Page 5: Installation And Operating Conditions
INSTALLATION AND OPERATING CONDITIONS Positioning: This appliance can be installed in a dry, well ventilated indoor where the ambient • temperature corresponds to the climate class indicated on the rating plate of the appliance WARNING! The appliance should not be operated in an unheated room or porch. - Page 6 Take out two supports 1 from a bag and screw • them by screws 2 into marked places at the back of a appliance (see fig.). Take out the cover 1 from the bag and insert the cover into the •...
- Page 7 THE APPLIANCE BASIC PARTS Adjustable height shelves Blower. Opening the door, the blower switches off. Thaw water channel cleaner Thermostat knob Advertising panel (CD48DM-S300BD) Blower switch LED lighting ON / OFF switch for light Supply cord Thermometer Thaw water drip tray...
-
Page 8: Temperature Regulation
TEMPERATURE REGULATION The temperature in the device compartment is controlled using the thermostat knob 2 (see page 1, fig. 1) by turning it to one side or the other. The temperature indication in digits is shown beside the thermostat knob. The numbers “0, 1, 2, 3, 4, 5”... -
Page 9: Changing The Opening Direction Of The Doors
CHANGING THE OPENING DIRECTION OF THE DOORS It is recommended that changing the opening direction of the doors should be done with a helper. You will need two spanners No. 8 and No. 10 and a Philips head screwdriver. When changing the opening direction of the doors, YOU CAN NOT lay the appliance horizontally. - Page 10 1. In the back part unscrew four screws 21, remove the cover 22 and disconnect the supply plug 23 of the connection cable; 2. Unscrew four fixing screws 3 of the promotional shield and remove the promotional shield; 3. Unscrew three fixing screws 6 of the upper door hanging bracket 7 and remove the bracket together with the axle 10;...
-
Page 11: Environmental Protection Information
Remarks on the appliance operating noise. As the appliance operates and goes through the freezing cycle, various noises will be emitted. This is normal and is not a sign of any malfunction. As the refrigerant circulates around the refrigeration system, it causes sounds like •...
