RAVEN™ Institutional — 5.6 K-factor
Pendent and Horizontal Sidewall Sprinklers
Quick Response, Standard and Extended Coverage
General
Description
®

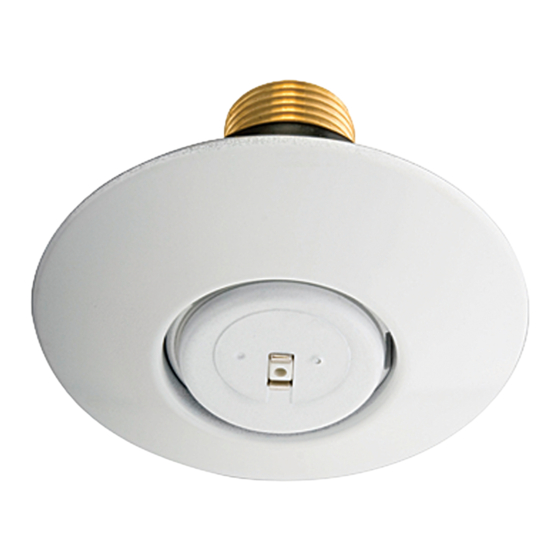

The Tyco RAVEN™ Institutional Pen-
dent and Horizontal Sidewall Sprin-
klers are quick response spray sprin-
klers designed for use in areas such
as correctional, detention, and mental
health care facilities, as well as other
commercial buildings. Both the pen-
dent and horizontal sidewall styles
are available for standard or extended
coverage applications.
Features:
• The RAVEN assembly increases
the difficulty of tampering with the
sprinkler that may cause a false
activation.
• The tamper resistant nature of the
RAVEN helps reduce the opportu-
nity for individuals to injure them-
selves or others with components of
a fire sprinkler.
• The RAVEN optimizes an aestheti-
cally appealing flush design that
conceals all of the operating parts.
notice
The RAVEN Institutional Sprinklers
described herein must be installed
and maintained in compliance with
this document and with the applica-
ble standards of the National Fire Pro-
tection Association, in addition to the
standards of any authorities having ju-
iMPoRtAnt
Always refer to Technical Data
Sheet TFP700 for the "INSTALLER
WARNING" that provides cautions
with respect to handling and instal-
lation of sprinkler systems and com-
ponents. Improper handling and in-
stallation can permanently damage
a sprinkler system or its compo-
nents and cause the sprinkler to fail
to operate in a fire situation or cause
it to operate prematurely.
Page 1 of 10
risdiction. Failure to do so may impair
the performance of these devices.
Tyco Fire Suppression & Building
Products specifically disclaims any li-
ability for damages or injury (includ-
ing death) arising out of or caused by
manipulation, dismantling, or misuse
of RAVEN Sprinklers or the use or at-
tempted use of the RAVEN Sprinklers
or any component thereof as an instru-
ment unrelated to its intended function
as a fire protection device.
The owner is responsible for maintain-
ing their fire protection system and
devices in proper operating condition.
The installing contractor or manufac-
turer should be contacted with any
questions.
Sprinkler
Identification
Numbers
SIN DOT APPLICATION
COLOR*
TY3281 Black Pendent Standard
Coverage
TY3282 Green Pendent Extended
Coverage
TY3381 Red HSW Standard
Coverage
TY3382 Purple HSW Extended
Coverage
* Refer to Figures 1 through 4 for SIN Color
Dot location.
Technical
Data
Approvals:
UL and C-UL Listed.
(Refer to the Design Criteria section.)
Maximum Working Pressure:
175 psi (12,1 bar)
Inlet Thread Connection:
1/2 inch NPT
APRIL, 2009
Discharge Coefficient:
K=5.6 GPM/psi 1/2
(80,6 LPM/bar 1/2 )
Temperature Rating:
165°F/74°C
Finishes:
Sprinkler: Chrome or White
Escutcheon: Chrome or White
Physical Characteristics:
Body . . . . . . . . . . . . . . . . . . . . . Brass
Deflector Assembly . . . . . . . . . Bronze
Sealing Assembly . . . . . . . . . . . . . . . .
. . . . . . . . . .Beryllium Nickel w/Teflon*
Link Assembly . . . . . . . . . . . . .Copper
Patents:
Patent pending
TFP651
