Viewline Voltmeter
Description
Indication of Battery power
Features
_ Integrated Warning LED.
_ Changeable Frontbezels.
_ LED Illumination
_ Flush mount possibility
_ High reliability
Concept
Housing
Bezel
Lens
Dial
Pointer
Illumination
Warning LED
Mounting
Connection
VDO – A trademark of the Continental Corporation
Product Information
PC; flame retarding (UL94)
PC or ABS; several colors and shapes (see table)
PMMA; double lens
backlit; different colors (see table)
backlit, white on black dials; red on white dials
Dial: LED amber (605nm)
Pointer: LED red (632nm)
red (632nm)
spinlock Nut; locking height 0,5mm – 20mm,
optional Studs and Bracket; locking height 2 – 15mm
8 pin MQS connector system
www.vdo.com

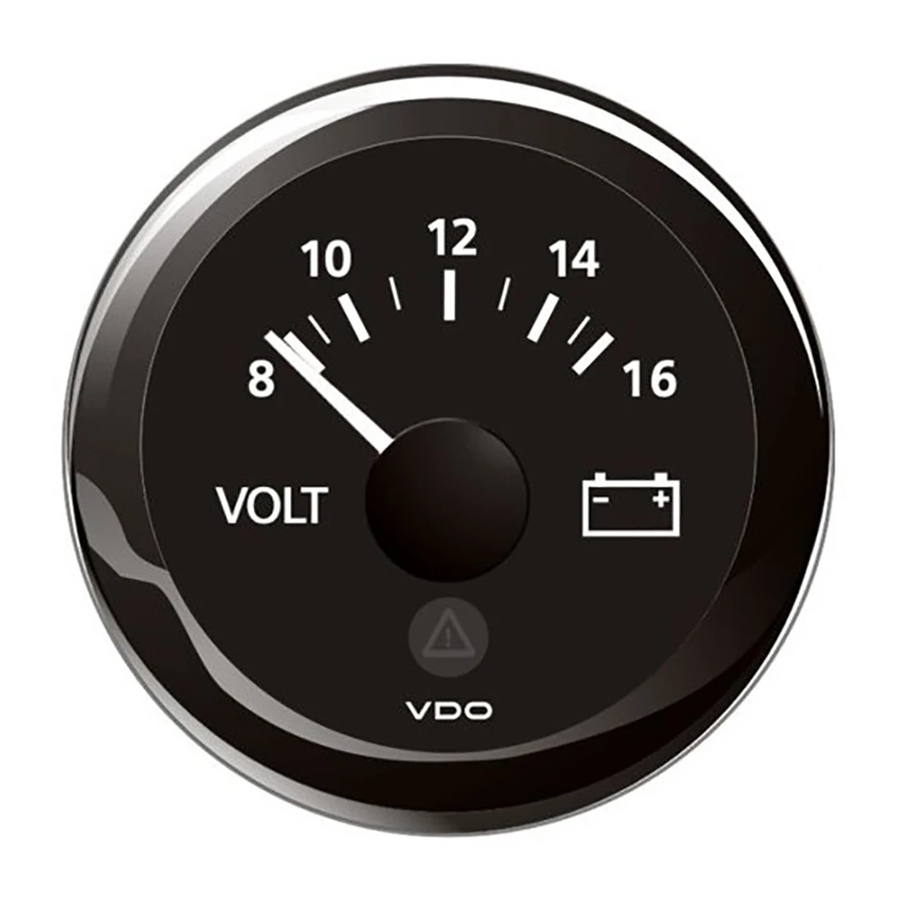

Picture: Voltmeter
