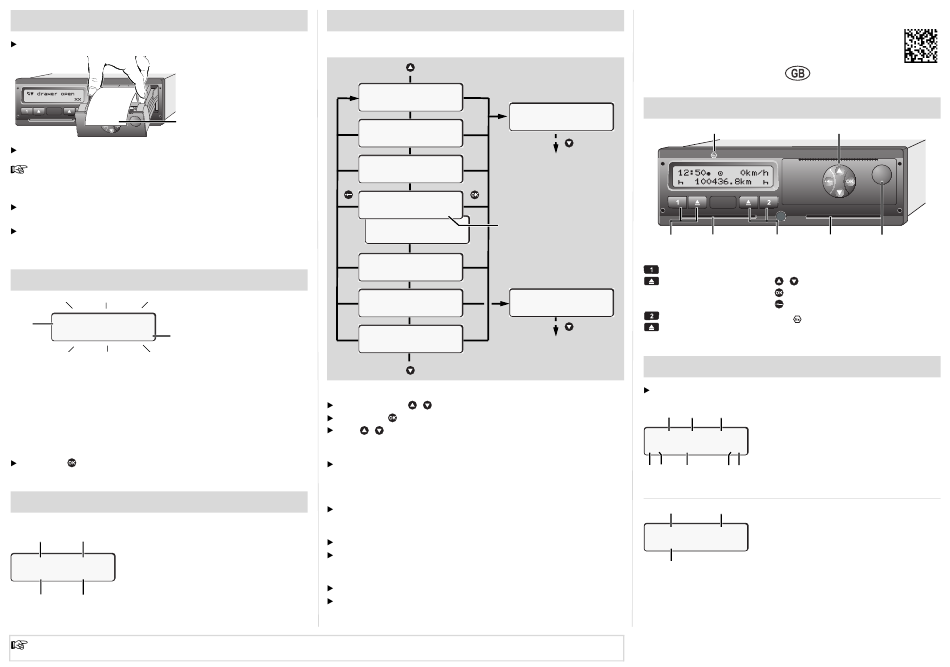

VDO DTCO 1381 Brief Instructions Driver

Insert paper roll

Press the unlock button, the printer drawer opens.
1
Insert paper roll.
Make sure that the paper roll does not become jammed in the
printer drawer and the start of the paper (1) extends beyond the
edge of the printer drawer!
Close printer drawer centrally. An interrupted printout is automatically
continued when paper is inserted (< 1 hour).
Pull the printout up and down over the paper cutting edge and then tear
the printout from the roll of paper.
Messages
1
x1 internal
2
fault xx
(1) Pictogram and plain text of the message
! = Event, example [ ! driving without card ]
x = Fault, example [ x sensor fault ]
 = Driving time warning [ 1 break! ]
Operational note, example [ o no paper ]
(2) Memory code
For further messages and measures refer to the operating instructions.
Acknowledge message:
Press key 2 times, the message disappears.
Times of the driver card(s)
".
(1) Driving time "  " since a valid break
1 2
time.
(2) Valid break time "  ", in accordance
103h46 00h15
with regulation (EU) no. 561/2006.
(3) Driving time over two weeks "  ".
125h57 00h21
(4) Duration of the set activity.
3
4
These brief instructions shall not, under any circumstances, be regarded as a substitute for the exhaustive operating instructions
for the DTCO 1381 prescribed by EU Regulation (EEC) no. 3821/85, Annex I B.

Calling up menu functions

Possible only when the vehicle is stationary!
12:40  0km/h
 123456.7km 
103h46 00h15
125h57 00h21
201h10 00h36
215h00 00h21
VDO 00h44
11h00 03h23
Option: VDO Counter, for
VDOi  9h 2
details refer to the separate
∆|19h58 10h 1 description.
UTC 29.09.2013
10:40 +02h00
select
language?
call main menu?
Use the buttons / to select the desired display.
Use button to call up the main menu.
Use / to select the listed functions step by step.
Print daily value:
[ printout  driver 1 ] ... [ 24h day ] ... [ 25.10.2013 ] ...
from Rel. 2.0 [ printout in UTC yes/no]
Enter "Out of scope" beginning / end:
[ entry  vehicle ] ... [ OUT begin ] or [ OUT end ]
Enter Beginning of ferry / train:
[ entry  vehicle ] ... [  ferry/train ]
Set the current activity.
Set Local time:
[ entry  vehicle ] ... [  local time ] ...
Set Local time in steps of ± 30 minutes.
Brief instructions Driver
DTCO 1381 – Release 1.4x – 2.0
A2C81440100 / 40525943 OPM 000 AA
BA00.1381.20 501 102
1. Main menu

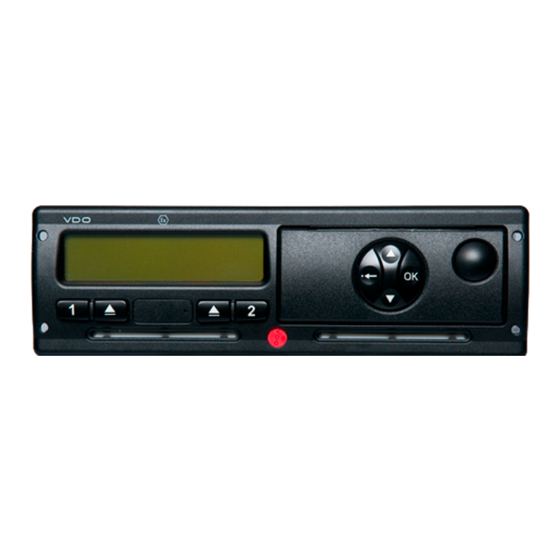

Operational elements
printout
 driver 1
... others see operating
instructions
1
(1) Driver 1 keypad
= Activity button
= Ejection button
(2) Card slot 1
 language
(3) Driver 2 keypad
english
= Activity button
= Ejection button
(4) Card slot -2

Standard display(s) during trip

Press any menu key, change to the desired display.
1 2
12:50 
 123456.7km 
4 5 6
1
101h21
202h05
3
With Rel. 1.4: automatically back to standard display (a).
The option "VDO Counter" allows another standard display; for details
refer to the separate description.
www.dtco.vdo.com
a 6
2 3 4 5
(5) Unlock button
(6) Menu buttons
/ = Select function / selection
= Confirm function / selection
= Exit, abort menu
(a) " " = Symbol for ADR variant
(1) Time (with "  " = set local time)
3
(a)
(2) "Operational mode"
(3) Speed
75km/h
(4) Activity, driver 1
(5) Card symbol, driver 1
(6) Total odometer
7 8
(7) Card symbol, driver 2
(8) Activity, driver 2
2
(b)
(1) Driving time "  " Driver 1 since a valid
break time.
00h15
(2) Valid break time "  ", in accordance with
regulation (EU) no. 561/2006.
(3) Time of driver 2; availability time "  ".
© 04.2012 Continental Automotive GmbH
