  • Page 1 User’s Manual for semi-automatic welding machine FANMIG 280-4N Minor 320-4N Minor Attention! Before starting work every person using or responsible for maintenance work on this device should familiarize with the entire content of these User’s Manual. This will optimize the use of device potential. Attention! A copy of this User Manual should be stored at a location of device use and always remain available to the operator.

  • Page 2: Table Of Contents

    12. Recycling ..........................23 13. Declaration Of Conformity ....................24 Thank you for purchasing a semi-automatic welding machine FANMIG by MOST. This manual booklet is common for two types of devices differing in some technical parameters We do believe that this product will meet your requirements. In order to ensure the correct use, all the safety and operating manual should be read before operating this device.
  • Page 3 In order to ensure adequate service life and trouble-free operation: - do not place or use this device on an inclined surface of more than 15º, - do not use the device for pipe defrosting, FANMIG 280-4N Minor User Manual 320-4N Minor...
  • Page 4 (e.g. using a crane or a gantry). Only authorized persons should per- form maintenance and repair works keeping it in compliance with the safety conditions applica- ble to renovation equipment. FANMIG 280-4N Minor User Manual 320-4N Minor...

  • Page 5: Maintenance (Power Supply And Wire Feeder)

    In accordance with Regulation 2019/1784 (EU) Annex II pt. 2. b1, The RYWAL-RHC company provides information on repairs and maintenance to PROFESSIONAL TECHNICAL SUPPORT PROVIDERS under the terms of the regulation. FANMIG 280-4N Minor User Manual 320-4N Minor Version 1.0 of 22.04.2021...

  • Page 6: Technical Description And Operating Conditions

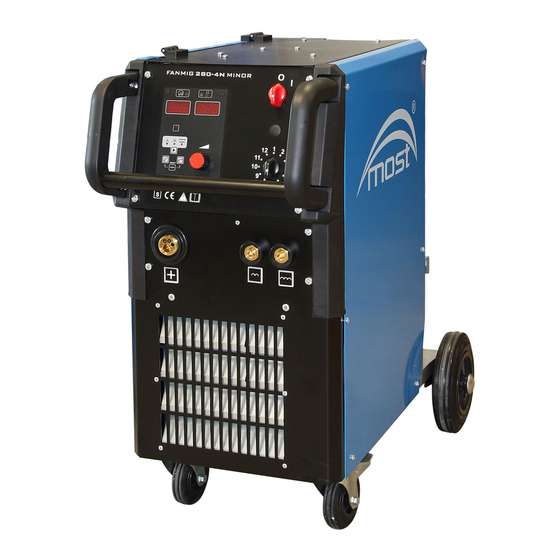

    FANMIG 280-4N / 320-4N Minor is a semi-automatic welding machine designed for MIG/MAG gas shield welding. It is a compact-sized device including electrical power supply and wire feeder located inside a single housing. FANMIG 280-4N Minor and FANMIG 320-4N Minor include a 4-roll wire feed systems.

  • Page 7: Technical Data And Device Completion

    Welding current set point number Wire feeder 4-roll (-2N/4N) 4-roll Wire feeding speed 1-19 1-19 Welding torch cooling Welding Torch (gas) M 24 lub M25 MOST M 24 lub M25 MOST Protection class IP 23S IP 23S Insulation class Noise emission dB(A) <70 <70...

  • Page 8: Fanmig 280-4N / 320-4N Minor Control Panel

    5. FANMIG 280-4N / 320-4N Minor control panel Figure 1: Device front panel V1 - main switch V3 - welding current accurate switch P1 - Minor version control panel (see Fig. 2) FANMIG 280-4N Minor User Manual 320-4N Minor Version 1.0 of 22.04.2021...
  • Page 9 5.1 Minor version control panel Figure 2: Control panel (P1 as on Fig.1) on Minor version FANMIG 280-4N Minor User Manual 320-4N Minor Version 1.0 of 22.04.2021...
  • Page 10 Sete the feed speed • Selects secondary parameters Table 2: Minor control panel function markings Attention! Displays 6 and 8 do not show A/V current value when welding. FANMIG 280-4N Minor User Manual -10- 320-4N Minor Version 1.0 of 22.04.2021...
  • Page 11 Display 6 Welding time for spot weld. and interm. welding Pause time at intermittent welding Wire burn time 0,75 Gas pre-flow Gas post-flow Table 3: Welding functions and ranges FANMIG 280-4N Minor User Manual -11- 320-4N Minor Version 1.0 of 22.04.2021...

  • Page 12: Wire Feeding System

    Fixing arm compl. TR 404 5468 Silnik Motor 5639 Dysza wejściowa 2R/4R mała Liner for Feeder 2roll,4roll Small 5630 Podkładka mocująca Retaining washer 5640 Śruba M5x10 Screw M5x10 FANMIG 280-4N Minor User Manual -12- 320-4N Minor Version 1.0 of 22.04.2021...
  • Page 13 The drawing and a table for feeding system parts of TR404 (marked with a stylized letter „H” on the aluminium housing). In the case of parts for older versions of FANMIG devices, please contact RYWAL-RHC technical support. FANMIG 280-4N Minor User Manual -13- 320-4N Minor...

  • Page 14: Device Commissioning

    Teflon one and tip fitting the wire diameter. Having the above operations completed and connection checked, the device is ready for ope- ration. FANMIG 280-4N Minor User Manual -14- 320-4N Minor...

  • Page 15: Welding

    8 * 60 = 480 10 * 60 = 600 12 * 60 = 720 16 * 60 = 960 Table 5: Approximate wire and gas consumption for MIG / MAG welding. FANMIG 280-4N Minor User Manual -15- 320-4N Minor Version 1.0 of 22.04.2021...

  • Page 16: Spare Parts

    9. Spare parts Figure 4: FANMIG 280-4N Minor spare parts FANMIG 280-4N Minor User Manual -16- 320-4N Minor Version 1.0 of 22.04.2021...
  • Page 17 Osłona boczna lewa górna Alf 400 Case left spool Alf 400 V0009 Osłona boczna lewa dolna Alf 400 Case left lower Alf 400 V0007 Osłona boczna prawa Alf 400 Case right Alf 400 FANMIG 280-4N Minor User Manual -17- 320-4N Minor Version 1.0 of 22.04.2021...
  • Page 18 V0012 Rurka podwozia Alf 400 Tube of carriage unit Alf 400 V0018 Rozpora Alf 400 Strut Alf 400 Table 6: FANMIG 280-4N Minor spare parts Figure 5: FANMIG 320-4N Minor spare parts FANMIG 280-4N Minor User Manual -18- 320-4N Minor...
  • Page 19 Osłona boczna lewa górna Alf 400 Case left spool Alf 400 V0009 Osłona boczna lewa dolna Alf 400 Case left lower Alf 400 V0007 Osłona boczna prawa Alf 400 Case right Alf 400 FANMIG 280-4N Minor User Manual -19- 320-4N Minor Version 1.0 of 22.04.2021...
  • Page 20 Tube of handle Alf 400 V0012 Rurka podwozia Alf 400 Tube of carriage unit Alf 400 V0018 Rozpora Alf 400 Strut Alf 400 Table 7: FANMIG 320-4N Minor spare parts FANMIG 280-4N Minor User Manual -20- 320-4N Minor Version 1.0 of 22.04.2021...

  • Page 21: Device Operation Defects

    The fan does not work Please contact technical service message while the right side V14 display shows „1”. Current source failure Please contact technical service Table 8: Device operation defects FANMIG 280-4N Minor User Manual -21- 320-4N Minor Version 1.0 of 22.04.2021...

  • Page 22: Electrical Scheme

    11. Electrical scheme Figure 6: FANMIG 280-4N device electrical diagram FANMIG 280-4N Minor User Manual -22- 320-4N Minor Version 1.0 of 22.04.2021...

  • Page 23: Recycling

    The components used to build the device do not contain critical raw materials in the total amount of more than 1g regarding the requirements of the Ecodesign Directive 2009/125/EC and the Regulation 2019/1784 Annex II, point 3h. FANMIG 280-4N Minor User Manual -23- 320-4N Minor Version 1.0 of 22.04.2021...

  • Page 24: Declaration Of Conformity

    3. This declaration of conformity is issued under the sole responsibility of the manufacturer. 4. Object of the declaration FANMIG 280-4N Minor and FANMIG 320-4N Minor Semi-Automatic Welding Machine 5. The subject matter of this declaration referred to above is in line with the relevant...
  • Page 25 NOTATKI ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................FANMIG 280-4N Minor User Manual -25- 320-4N Minor Version 1.0 of 22.04.2021...
  • Page 26 NOTATKI ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................FANMIG 280-4N Minor User Manual -26- 320-4N Minor Version 1.0 of 22.04.2021...
  • Page 27 NOTATKI ..........................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................FANMIG 280-4N Minor User Manual -27- 320-4N Minor Version 1.0 of 22.04.2021...
  • Page 28 Manufacturer: RYWAL-RHC Sp. z o.o. w Warszawie ul. Chełmżyńska 180 04-464 Warszawa Sales and Service network: Sieć sprzedaży i serwisu: w w w . r y w a l . e u ROMÂNIA RYWAL-RHC Sp. z o.o. БЕЛАРУСЬ RYWAL-RHC Romania SRL ИООО...
