User Manual for Inverter
Rectifier
PONTE 201 PRO MOST
Before starting work every person using or responsible for maintenance work on this
device should familiarize with the entire content of these operating manual. This will
optimize the use of device potential.
Attention! Prior commencing work please familiarize yourself with the user manual.
Attention! A copy of this User Manual should be stored near the device and available
for operator at all times.
Catalogue no: 53 00 030685
User Manual
Version 1.2 of 7.04.2021EN
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Most PONTE 201 PRO MOST
Summary of Contents for Most PONTE 201 PRO MOST
- Page 1 User Manual for Inverter Rectifier PONTE 201 PRO MOST Before starting work every person using or responsible for maintenance work on this device should familiarize with the entire content of these operating manual. This will optimize the use of device potential.
- Page 2 Thank you for buying the Inverter Rectifier PONTE 201 PRO MOST. We do believe that this product will meet your requirements. In order to ensure the correct use, all the safety and operating instructions should be read before operating this device.
-
Page 3: Operating Conditions
PONTE 201 PRO MOST User Manual Version 1.2 of 7.04.2021EN... -
Page 4: Fire Protection
Maintenance: - using a stream of dry air (at low pressure) remove the dust from the outer parts of the casing and from inside of the welding device, PONTE 201 PRO MOST User Manual Version 1.2 of 7.04.2021EN... - Page 5 According to the Ecodesign Directive 2009/125/EU and Regulation 2019/1794 (EU) PONTE 201 PRO is classified as arc welding equipment with a limited load and is not intended for industrial or professional use. PONTE 201 PRO MOST User Manual Version 1.2 of 7.04.2021EN...
- Page 6 Catalogue no. 53 00 030685 Table 1: Technical data PONTE 201 PRO MOST. The device is delivered in a plastic case containing user manual booklet and an earth cable with a clamp and a cable with electrode holder. Both cables are 3 meters long.
-
Page 7: Device Construction

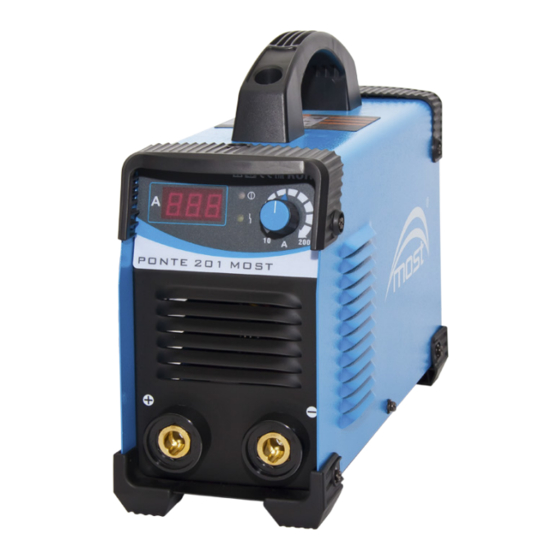

5. Device construction Figure 1: PONTE 201 PRO MOST construction 1. Power indicator LED lights up when the device is ON (by switch no. 8). 2. Overheat indicator LED is on if the device is overheated due to exceeding the welding work cycle. - Page 8 Additional functions HOTStart (support of arc ignition) and ArcForce (adaptation of the arc by pipe welding) are active. The values of settings for HotStart and ArcForce are not adjustable. PONTE 201 PRO MOST User Manual Version 1.2 of 7.04.2021EN...
- Page 9 7. Spare parts and device construction 19 1 Figure 3: PONTE 201 PRO MOST spare part list PONTE 201 PRO MOST User Manual Version 1.2 of 7.04.2021EN...
- Page 10 10054622 Radiator/heat sink 10070113 Front panel 10069815 EMC board Table 2: PONTE 201 PRO MOST spare part list 8. Troubleshooting during MMA welding ATTENTION: The device can be repaired only by authorized personnel! PONTE 201 PRO MOST User Manual -10-...
-
Page 11: Electrical Scheme
LED 2 turns off. 2. Internal damage - contact RYWAL-RHC service Table 3: Faults during MMA welding. 9. Electrical scheme Figure 4: PONTE 201 PRO MOST wiring diagram PONTE 201 PRO MOST User Manual -11- Version 1.2 of 7.04.2021EN... -
Page 12: Eu Declaration Of Conformity
3. This declaration of conformity is issued under the sole responsibility of the manufacturer. 4. Object of the declaration: Inverter Rectifier PONTE 201 PRO MOST 5. The subject matter of this declaration mentioned above is in conformity with the relevant requirements of EU harmonization legislation:... - Page 13 In accordance with Directive 2012/19 / EU WEEE II (WEEE - Waste Electrical and Electronic Equipment), after decommissioning, the device must be recycled by a specialized company. Do not dispose of worn-out welding equipment with domestic waste! The End. PONTE 201 PRO MOST User Manual -13- Version 1.2 of 7.04.2021EN...
- Page 14 NOTES ............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................PONTE 201 PRO MOST User Manual -14- Version 1.2 of 7.04.2021EN...
- Page 15 NOTES ............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................PONTE 201 PRO MOST User Manual -15- Version 1.2 of 7.04.2021EN...
- Page 16 Manufacturer: RYWAL-RHC Sp. z o.o. w Warszawie ul. Chełmżyńska 180 04-464 Warszawa Sales and Service network: Sieć sprzedaży i serwisu: w w w . r y w a l . e u ROMÂNIA RYWAL-RHC Sp. z o.o. БЕЛАРУСЬ RYWAL-RHC Romania SRL ИООО...
