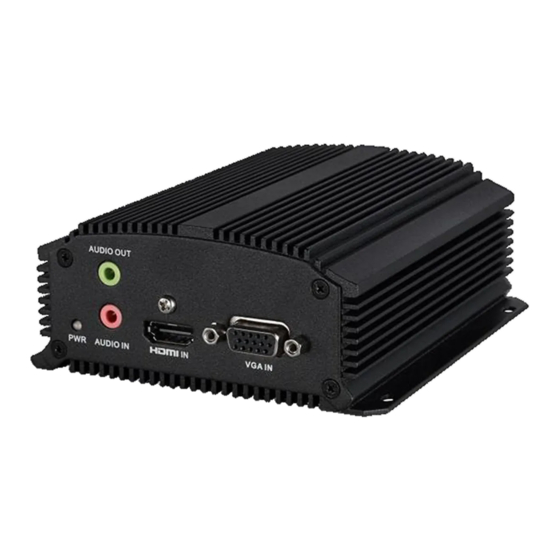

HIKVISION DS-6701HFHI/V User Manual
  1. Manuals
  2. Brands
  3. HIKVISION Manuals
  4. Media Converter
  5. DS-6701HFHI/V
  6. User manual

HIKVISION DS-6701HFHI/V User Manual

Network audio/video encoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual of Network Audio/Video Encoder
Network Audio/Video Encoder
User Manual
UD.6L0202D2215A01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DS-6701HFHI/V and is the answer not in the manual?

Questions and answers

Related Manuals for HIKVISION DS-6701HFHI/V

Summary of Contents for HIKVISION DS-6701HFHI/V

  • Page 1 User Manual of Network Audio/Video Encoder Network Audio/Video Encoder User Manual UD.6L0202D2215A01...
  • Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
  • Page 3 DS-6700HFHI/V Series Network HD Encoder User Manual Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4 DS-6700HFHI/V Series Network HD Encoder User Manual Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 5 DS-6700HFHI/V Series Network HD Encoder User Manual Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: • Ensure unit is installed in a well-ventilated, dust-free environment. • Unit is designed for indoor use only.

  • Page 6: Table Of Contents

    DS-6700HFHI/V Series Network HD Encoder User Manual TABLE OF CONTENTS Chapter 1 Introduction ..........................7 Description ......................7 Features ........................7 Chapter 2 Panels and Connections ......................9 Front Panel ......................9 Rear Panel ......................10 Chapter 3 Activation and Initial Network Configuration for the Encoder ..........11 Setting the Admin Password via Web Browser............
  • Page 7 DS-6700HFHI/V Series Network HD Encoder User Manual Adjusting VGA Output Position ................46 Configuring and Handling Alarms ................47 7.7.1 Configuring Motion Detection ............... 47 7.7.2 Configuring External Alarm Input ..............50 7.7.3 Configuring Video Loss Alarm ............... 52 7.7.4 Configuring Video Tampering Alarm .............

  • Page 8: Chapter 1 Introduction

    Chapter 1 Introduction 1.1 Description Developed on the basis of the latest encoding technology, DS-6700HFHI/V Series Audio/Video Encoder Server allows the analog signal to be digitized and then stored in micro SD card/network disk or transmitted via network. The DS-6700HFHI/V provides HDMI and VGA input at up to 1080p resolution Adopting the latest embedded processor, the DS-6700HFHI/V Series Audio/Video Encoder provides more powerful capabilities in audio/video encoding;...
  • Page 9  Digital Zooming (with Speed Dome) When connected with Hikvision speed dome, digital zooming can be realized by clicking on the image through client software.  PTZ linkage Relay input alarm can be responded with PTZ linkage actions, e.g., callup of predefined presets or patrols.

  • Page 10: Chapter 2 Panels And Connections

    DS-6700HFHI/V Series Network HD Encoder User Manual Chapter 2 Panels and Connections 2.1 Front Panel Figure 2. 1 Front Panel Table 2. 1 Description of Front Panel Item Description POWER LED Indicator Lights in red when the device is powered on; light in orange when the SD card is inserted.

  • Page 11: Rear Panel

    DS-6700HFHI/V Series Network HD Encoder User Manual 2.2 Rear Panel Figure 2. 2 Rear Panel Table 2. 2 Description of Rear Panel Item Description ALARM IN Relay alarm input. ALARM OUT Relay alarm output. Serial interface for configuration of device’s parameters or used as transparent RS-232 channel.

  • Page 12: Chapter 3 Activation And Initial Network Configuration For The Encoder

    DS-6700HFHI/V Series Network HD Encoder User Manual Chapter 3 Activation and Initial Network Configuration for the Encoder You are required to activate the encoder first by setting a strong password for it before you can use the device. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported.

  • Page 13: Setting Admin Password And Modifying Network Parameters Via Client Software

    DS-6700HFHI/V Series Network HD Encoder User Manual Confirm the password. Click OK to save the password and enter the live view interface. 3.2 Setting Admin Password and Modifying Network Parameters via Client Software The client software is versatile video management software for multiple kinds of devices.
  • Page 14 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 3. 3 Control Panel Check the device status from the device list, and select an inactive device. Click the Activate button to pop up the Activation interface. Create a password and input the password in the password field, and confirm the password.
  • Page 15 DS-6700HFHI/V Series Network HD Encoder User Manual Click OK button to start activation. Click the Modify Netinfo button to pop up the Network Parameter Modification interface, as shown in the figure below. Figure 3. 5 Modifying the Network Parameters Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP.

  • Page 16: Chapter 4 Access To Ds-6700 By Web Browser

    DS-6700HFHI/V Series Network HD Encoder User Manual Chapter 4 Access to DS-6700 by WEB Browser The DS-6700 can also be accessed by WEB Browser for configuration and operation. The supported WEB browsers include: Internet Explorer 6/7/8/9, Firefox 3.5 and above, Chrome 8 and above, Safari 5.0.2 and above, Windows XP SP1 and above (32-bit).
  • Page 17 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 4. 2 Download and Install Plug-in (2) Click Run or Save on the pop-up warning message box. Figure 4. 3 Run Web Components (3) Click Next on the pop-up Setup dialog box.
  • Page 18 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 4. 5 Install the Web Components After having successfully installed the web components, you enter the main page.

  • Page 19: Chapter 5 Live View

    DS-6700HFHI/V Series Network HD Encoder User Manual Chapter 5 Live View Live view shows you the video image getting from the connected camera in real time. After successful login, the system will enter the live view page automatically. 5.1 Starting Live View Steps: In the live view window, select a playing window by clicking the mouse.

  • Page 20: Main/Sub Stream Live View

    DS-6700HFHI/V Series Network HD Encoder User Manual Audio on/off Start/Stop two-way audio Select the main stream or sub stream for live view Switch to full-screen live view mode. Before using two-way audio function or recording with audio, please select the Stream Type to Video & Audio on Section Configuring Video Settings.

  • Page 21: Operating Ptz Control

    DS-6700HFHI/V Series Network HD Encoder User Manual Figure 5. 3 Picture Capture Succeeded  The saving path for the captured pictures can be set at the Configuration > Local Configuration page.  The image is saved as a JPEG file on your computer.

  • Page 22: Setting/Calling A Preset

    DS-6700HFHI/V Series Network HD Encoder User Manual Click on the directional buttons to control the pan/tilt movement. Figure 5. 5 PTZ Control Panel Click the zoom/iris/focus buttons to realize lens control. Refer to the following table for description of PTZ control buttons: Table 5.
  • Page 23 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 5. 6 Set a Preset Use the PTZ control buttons to move the lens in the desired position. You can use any of the following commands: • Pan the camera to the right or left.
  • Page 24 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 5. 8 PTZ Linking Please refer to Chapter 7.7 Configuring and Handling Alarms for the PTZ Linking settings (Configuration>Event >Basic Event>Alarm Input>Linkage Method).

  • Page 25: Chapter 6 Device Configuration

    DS-6700HFHI/V Series Network HD Encoder User Manual Chapter 6 Device Configuration 6.1 Local Configuration Click Configuration > Local to enter the Local Configuration interface. Figure 6. 1 Local Configuration Configure the following settings: Protocol Type: Set the protocol type of stream transmission to TCP or UDP.

  • Page 26: System Time Settings

    DS-6700HFHI/V Series Network HD Encoder User Manual Auto Start Live View: Enable or disable the auto-start of live view once you open the Web browser. Highlight Event Area: Enable or disable the Highlight Event Area. When this feature is enabled, the motion detection triggered frame for the moving targets in the motion detection area will be highlighted in green color.
  • Page 27 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 6. 3 Time Zone Settings Configure the time synchronization by NTP server or by manually.  Configuring Time Sync by NTP Server A Network Time Protocol (NTP) Server can be configured on your device to ensure the accuracy of system date/time.
  • Page 28 DS-6700HFHI/V Series Network HD Encoder User Manual  Click the DST tab page to enable the DST function and set the date of the DST period. Figure 6. 6 DST Settings Click the Save button to save the settings.

  • Page 29: Network Settings

    DS-6700HFHI/V Series Network HD Encoder User Manual 6.3 Network Settings 6.3.1 Configuring TCP/IP Settings Network settings must be properly configured before you operate device over network. Steps: Click Configuration > Network > Basic Settings > TCP/IP to enter the TCP/IP Settings interface: Figure 6.
  • Page 30 DS-6700HFHI/V Series Network HD Encoder User Manual used for network access. Prior registration with your DDNS Provider is required before configuring the system to use DDNS. Steps: Click the Configuration > Network > Basic Settings > DDNS to enter the DDNS Settings interface: Figure 6.
  • Page 31 DS-6700HFHI/V Series Network HD Encoder User Manual For the IP Server, You have to apply a static IP, subnet mask, gateway and primary DNS from the ISP. The Server IP should be entered with the static IP address of the PC that runs IPServer software.

  • Page 32: Configuring Pppoe Settings

    DS-6700HFHI/V Series Network HD Encoder User Manual Figure 6. 12 HiDDNS Settings • NO-IP: Enter the account information in the corresponding fields. Refer to the DynDNS settings. 1) Enter Server Address for NO-IP. 2) In the Device Domain Name text field, enter the domain obtained from the NO-IP website (www.no-ip.com).

  • Page 33: Configuring Port Settings

    DS-6700HFHI/V Series Network HD Encoder User Manual Figure 6. 14 PPPoE Settings Check the PPPoE checkbox to enable this feature. Enter User Name, Password, and Confirm Password for PPPoE access. The User Name and Password should be assigned by your ISP.

  • Page 34: Configuring Nat Settings

    DS-6700HFHI/V Series Network HD Encoder User Manual It will ask you to reboot the device to activate the settings. 6.3.5 Configuring NAT Settings Purpose: UPnP™ can permit the device seamlessly discover the presence of other network devices on the network and establish functional network services for data sharing, communications, etc.

  • Page 35: Configuring Snmp Settings

    DS-6700HFHI/V Series Network HD Encoder User Manual  The Ports indicate the port No. for mapping in the router. Click Save to save the settings. After port mapping is successful, you can view the status of the port mapping on the Port Status area.
  • Page 36 DS-6700HFHI/V Series Network HD Encoder User Manual depending on the location of the e-mail accounts to which you want to send notification. Please configure the DNS Server settings under Configuration > Network > Basic Settings > TCP/IP before using the Email function.

  • Page 37: Configuring Https Settings

    DS-6700HFHI/V Series Network HD Encoder User Manual 6.3.8 Configuring HTTPS Settings Purpose: HTTPS (Hyper Text Transfer Protocol Secure) ensures the data transferred is encrypted using Secure Socket Layer (SSL) or Transport Layer Security (TLS). HTTPS provides authentication of the web site and associated web server that one is communicating with and create a secure channel over an insecure network.

  • Page 38: Configuring Active Multicast

    DS-6700HFHI/V Series Network HD Encoder User Manual Figure 6. 20 Installed Certificate When you have successfully created and installed the certificate, check the checkbox of Enable to enable the HTTPS function. Click the Save button to save the settings. After the HTTPS feature is enabled, the system will use the HTTPS login mode by default when you input the IP address (e.g., https://192.0.0.64).

  • Page 39: Configuring Remote Alarm Host And Multicast

    DS-6700HFHI/V Series Network HD Encoder User Manual Enter the active multicast address in the text filed. Enter the multicast port (rang: 1-65535) Click Save to save the settings. Reboot the device to activate the active multicast address settings. 6.3.10 Configuring Remote Alarm Host and Multicast...

  • Page 40: Configuring Rtmp

    DS-6700HFHI/V Series Network HD Encoder User Manual Figure 6. 23 EZVIZ Cloud P2P Settings After configuration, you can access and manage the device by your mobile phone on which the EZVIZ Cloud P2P application is installed or by the EZVIZ website (www.ezviz7.com).

  • Page 41: Chapter 7 Camera Settings

    DS-6700HFHI/V Series Network HD Encoder User Manual Chapter 7 Camera Settings 7.1 Configuring Display Parameters Purpose: You can configure the video parameters of the camera, including the brightness, contrast, saturation and hue, etc. Steps: Click the Configuration > Image> Display Settings to enter the Display Settings interface: Select the camera to configure the video parameters.
  • Page 42 DS-6700HFHI/V Series Network HD Encoder User Manual You can customize the camera name and time on the screen. Steps: Click the Configuration > Image>OSD Settings to enter the OSD Settings interface: 08-19-2015 Wednesday 14:29:31 Camera 01 Figure 7. 2 Display Settings Select the camera from the drop-down list to configure the OSD settings.
  • Page 43 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 7. 4 Configure Text Overlay Click Save, and the edited text is shown on the image. On the preview image, you can adjust the Text location on the screen by moving the text frame...

  • Page 44: Configuring Video Settings

    DS-6700HFHI/V Series Network HD Encoder User Manual 7.3 Configuring Video Settings Steps: Click Configuration > Video/Audio > Video to enter the Video Settings interface. Figure 7. 5 Video Settings Select the camera from the drop-down list to configure. The resolution of the camera will be shown in the field of Front-end Resolution.

  • Page 45: Configuring Audio Settings

    DS-6700HFHI/V Series Network HD Encoder User Manual 7.4 Configuring Audio Settings Steps: Click Configuration > Video/Audio > Audio to enter the Audio Settings interface. Select the camera from the drop-down list to configure. Select the audio encoding format to G.711alaw, G.711μlaw or AAC.
  • Page 46 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 7. 6 Target Cropping Select the cropping resolution for the video display of target area. A red rectangle is displayed on the live video to mark the target area, and you can click-and-drag the rectangle to locate the target area as desired.

  • Page 47: Adjusting Vga Output Position

    DS-6700HFHI/V Series Network HD Encoder User Manual 7.6 Adjusting VGA Output Position Purpose: You can adjust VGA input video to the desired position by configuring the horizontal and vertical offset values. Steps: Configuration > Video/Audio > VGA Position Adjustment to enter the VGA Position Adjustment settings interface.

  • Page 48: Configuring And Handling Alarms

    DS-6700HFHI/V Series Network HD Encoder User Manual 7.7 Configuring and Handling Alarms Purpose: This section explains how to configure the network camera to respond to alarm events, including Motion Detection, External Alarm Input, Video Loss, Tamper-proof and Exception. And the alarm events can trigger the alarm actions, such as Notify Surveillance Center, Send Email and Trigger Alarm Output.
  • Page 49 DS-6700HFHI/V Series Network HD Encoder User Manual By default, the full screen motion detection is configured. (6) Click the Stop Drawing button to finish drawing. You can click the Clear All button to clear all areas. (7) Move the slide bar of Sensitivity to set the sensitivity of the camera.
  • Page 50 DS-6700HFHI/V Series Network HD Encoder User Manual Trigger an audible beep when an alarm is detected.  Notify Surveillance Center Send an exception or alarm signal to remote alarm host when an event occurs. The alarm host refers to the PC installed with Remote Client.

  • Page 51: Configuring External Alarm Input

    DS-6700HFHI/V Series Network HD Encoder User Manual Figure 7. 11 Motion Detection-Alarm Output Settings Select one alarm output channel in the Alarm Output drop-down list. The Delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual. The Delay refers to the time duration that the alarm output remains in effect after alarm occurs.
  • Page 52 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 7. 12 Alarm Input Settings-Arming Time Check the checkbox of Enable to enable the alarm input. Set the arming schedule for the alarm input. Refer to Step 2 Set the Arming Schedule for Motion Detection in Section Configuring Motion Detection.

  • Page 53: Configuring Video Loss Alarm

    DS-6700HFHI/V Series Network HD Encoder User Manual Check the relative checkbox to enable Preset Calling, Patrol Calling or Pattern Calling. You can copy your settings to other alarm inputs. Click Save to save the settings. 7.7.3 Configuring Video Loss Alarm Steps: Click Configuration>...

  • Page 54: Handling Exception

    DS-6700HFHI/V Series Network HD Encoder User Manual Figure 7. 15 Video Tampering Alarm Settings Click checkbox of Enable Video Tampering. Set the video tampering detection area. Please refer to Step 1 Set the Motion Detection Area in Chapter 8.3.1. Configure the arming schedule for video tampering detection. The arming schedule configuration is the same as the Setting of the Arming Schedule for Motion Detection.

  • Page 55: Configuring Privacy Mask

    DS-6700HFHI/V Series Network HD Encoder User Manual Figure 7. 16 Handling Exceptions Click Save to save the settings. 7.8 Configuring Privacy Mask Purpose: Privacy Mask enables you to cover certain areas on the video of the channel to prevent your privacy from live viewing and recording.
  • Page 56 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 7. 17 Privacy Mask Settings Click the Draw Area button. Draw the mask area by clicking and dragging the mouse in the live video image. Up to 4 privacy mask areas can be configured.

  • Page 57: Configuring Rs-485 Settings

    DS-6700HFHI/V Series Network HD Encoder User Manual 7.9 Configuring RS-485 Settings Purpose: The RS-485 serial port is used to control the PTZ of the camera. The configuring of the PTZ parameters should be done before you control the PTZ unit.

  • Page 58: Chapter 8 Storage Configuration

    DS-6700HFHI/V Series Network HD Encoder User Manual Chapter 8 Storage Configuration 8.1 Adding Network Disk You must configure the network disk before operating the recording, playback or log searching. Before you start: The network storage device is available within the network and is properly connected.
  • Page 59 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 8. 2 Search Network Disk Select and double click on the searched NAS or IP SAN disk from the list to add it, as shown in Figure 7.20. You can also manually add the NAS or IP SAN by entering the IP address of the server and file path in the text filed.
  • Page 60 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 8. 4 Initial Disk Set the property of the added network disk. Select the HDD No., and select the property from the drop-down menu to R/W, Read-only or Redundancy. Figure 8. 5 Set HDD Property ...

  • Page 61: Record Settings

    DS-6700HFHI/V Series Network HD Encoder User Manual Record Settings Before you start Make sure the Encoder is connected with network disk or micro SD card, and the disk or card has been initialized for the first time to use. Two recording types can be configured: Manual and Scheduled. The following section introduces the configuration of scheduled record/capture.
  • Page 62 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 8. 7 Holiday Settings Select an item from the list and click to edit the holiday. (1) Edit the holiday name. (2) Check the checkbox to enable holiday. (3) Select the holiday type from the dropdown list to by month, by week or by date.

  • Page 63: Configuring Scheduled Recording

    DS-6700HFHI/V Series Network HD Encoder User Manual The Holiday option is available in the Schedule dropdown list when you have enabled holiday schedule in Holiday settings. 8.2.3 Configuring Scheduled Recording Configuring Record Scheduled Steps: Click Configuration > Storage > Schedule Settings > Record Schedule to enter record schedule settings interface.
  • Page 64 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 8. 10 Configure Record Schedule Click and drag the mouse on the timeline of each day to set the period of the selected recording type. The time of each period can’t be overlapped. Up to 8 periods can be configured.
  • Page 65 DS-6700HFHI/V Series Network HD Encoder User Manual Figure 8. 12 Edit the Record Schedule Task 2: Deleting the Record Schedule Click a segment on the time line configured with record schedule, and click the Delete from the pop-up configuration box or click the to delete the selected record schedule of a day.

  • Page 66: Chapter 9 Playback

    User Manual of Network Audio/Video Encoder Chapter 9 Playback Purpose: The recorded video files can be remotely played back through the WEB browser. Steps: Click Playback on the menu bar to enter playback interface: Click the camera from the device list for playback. Select the date from the calendar and click Search.
  • Page 67 DS-6700HFHI/V Series Network HD Encoder User Manual Table 1-1 Description of the buttons Button Operation Button Operation Reversed Play Capture a picture Stop Start/Stop clipping video files Audio on and adjust Pause volume/Mute Speed down Download Speed up Playback by frame...

  • Page 68: Chapter 10 Managing User Accounts

    DS-6700HFHI/V Series Network HD Encoder User Manual Chapter 10 Managing User Accounts Click Configuration > System > User Management to enter the User Information interface: Figure 10. 1 User Information Interface The admin user is allowed to create normal users. And up to 31 users can be created.

  • Page 69: Modifying A User

    DS-6700HFHI/V Series Network HD Encoder User Manual Figure 10. 2 Add a User Configure the user permissions for the created user account, including the Basic Permission and Camera Operation. Click OK to finish the user addition. Figure 10. 3 User List 10.2 Modifying a User...

  • Page 70: Deleting A User

    DS-6700HFHI/V Series Network HD Encoder User Manual Figure 10. 4 Select a User Click Modify to enter the modification interface. Modify the User Name, Password and then select User type. You are highly recommended to use the strong password. Configure the user permission for the user, including the Basic Permission and Camera Operation.

  • Page 71: Chapter 11 Log Search And Maintenance

    DS-6700HFHI/V Series Network HD Encoder User Manual Chapter 11 Log Search and Maintenance 11.1 Log Search Purpose The operation, alarm, exception and information of the device can be stored in log files, which can be viewed and exported at any time.

  • Page 72: Viewing Device Information

    DS-6700HFHI/V Series Network HD Encoder User Manual 11.2 Viewing Device Information Click Configuration > System > System Settings > Basic Information to enter the Device Information interface of the encoder: You can edit the Device Name and Device No., and view the device information, including Model, Serial No., Firmware/Encode Version, Number of Channels, Number of HDDs, and Number of Alarm Input / Output.

  • Page 73: Importing/Exporting Configuration Files

    DS-6700HFHI/V Series Network HD Encoder User Manual Figure 11. 4 Restore Default Settings  By selecting the Restore button, the device restores the default settings for the parameters except the IP address, subnet mask, gateway and port.  By selecting the Default button, the device restores the default settings for all parameters.

  • Page 74: Upgrading The System

    DS-6700HFHI/V Series Network HD Encoder User Manual 11.3.4 Upgrading the System On the Maintenance> Remote Upgrade interface, click Browse to select the local update file and then click Upgrade to start remote upgrade. Figure 11. 7 Remote Upgrade...

  • Page 75: Chapter 12 Specifications

    DS-6700HFHI/V Series Network HD Encoder User Manual Chapter 12 Specifications Model DS-6701HFHI/V 1-ch, VGA Video input 1-ch, HDMI VGA: UXGA (1600 × 1200)p/60Hz, 1080p/60Hz, 1080p/50Hz, SXGA (1280 × 1024)p/60Hz, 1440 × 900p/60 Hz, 1366 × 768p/60 Hz, 720p/60Hz, XGA (1024 ×...

  • Page 76: Chapter 13 Faq

    DS-6700HFHI/V Series Network HD Encoder User Manual Chapter 13 FAQ  Why cannot ping the Encoder? Please refer to Chapter 3 to configure the device’s IP being in the same segment as your PC, and check the cable and switch.
