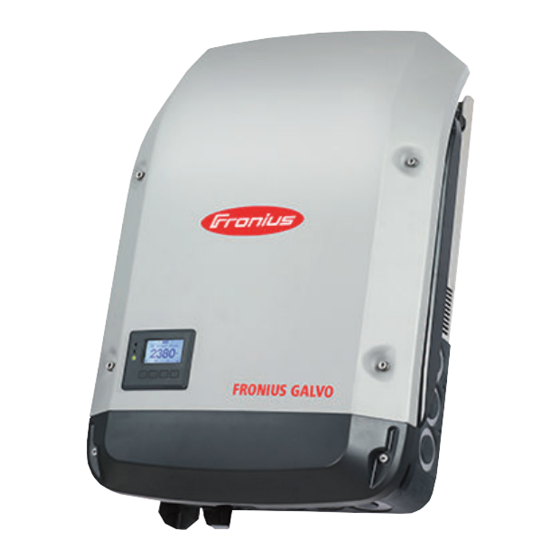

- Page 1 Installation Instructions Fronius Galvo 208-240: 1.5-1 / 2.0-1 2.5-1 / 3.1-1 10.0-1 / 11.4-1 12.5-1 / 15.0-1 EN-US Installation instructions 42,0426,0182,EA 017-10082022...
-
Page 3: Table Of Contents
Table of contents Safety Explanation of Safety Instructions General Electrical installations Safety Intended Use Installation location and position Selecting a location Installation position General location selection Example: Installation of several inverters Preparation Attaching the Mounting Bracket Safety Selecting Dowels and Screws Screw recommendation Opening the inverter Installing the mounting bracket on a brick or concrete wall... - Page 4 Data on the USB stick Data Amount and Memory Capacity Buffer Memory Suitable USB Thumb Drives USB Stick for Updating Inverter Software Removing the USB Stick Notes on Maintenance Maintenance Cleaning Serial Number Sticker for Customer Use Serial number sticker for customer use...
-
Page 5: Safety
Safety Explanation of DANGER! Safety Instruc- tions Indicates an immediate danger. ▶ Death or serious injury may result if appropriate precautions are not taken. WARNING! Indicates a possibly dangerous situation. ▶ Death or serious injury may result if appropriate precautions are not taken. CAUTION! Indicates a situation where damage or injury could occur. -
Page 6: Safety
Safety WARNING! Danger from incorrect operation and work that is not carried out properly. This can result in severe personal injury and damage to property. ▶ Only qualified personnel are authorized to commission your inverter and only within the scope of the respective technical regulations. ▶... -
Page 7: Intended Use
Fronius will not bear any costs for production downtimes, or for installations, etc., which may arise due to a detected electric arc and its consequences. Fronius accepts no liability for fires which may break out despite integrated arc detection/interruption (e.g., due to a parallel arc). -
Page 8: Installation Location And Position
Installation location and position Selecting a loca- Please observe the following criteria when choosing a location for the inverter: tion The inverter is suitable for indoor installation. The inverter is suitable for outdoor installation. Because of its NEMA4X protection class, the inverter is not sus- ceptible to hose water on any side and can also be operated in moist environments. -
Page 9: Installation Position
During certain operating phases the inverter may produce a slight noise. For this reason it should not be installed in an occupied liv- ing area. Do not install the inverter in: Areas where there is an increased risk of accidents from farm animals (horses, cattle, sheep, pigs, etc.) Stables or adjoining areas Storage areas for hay, straw, chaff, animal feed, fertilizers, etc. -
Page 10: General Location Selection
Do not install the inverter in a sloping position on a vertical wall or column. Do not install the inverter in a horizontal position on a vertical wall or column. Do not install the inverter with the connections upwards on a ver- tical wall or column. -
Page 11: Example: Installation Of Several Inverters
Max. ambient temperatures: -40°F to +122°F (-40°C to +50°C) Relative humidity: 0 - 100% The air flow direction within the inverter is from left to top (cold air intake on the left, hot air outflow at the top). The waste air can reach a temperature of 70°C. -
Page 13: Preparation
Preparation... -
Page 15: Attaching The Mounting Bracket
Attaching the Mounting Bracket Safety WARNING! Danger of residual voltage from capacitors. An electric shock can be fatal. ▶ Wait until the capacitors have discharged. Discharge takes 3 minutes. WARNING! Danger due to insufficient ground conductor connection. This can result in severe personal injury and damage to property. ▶... -
Page 16: Opening The Inverter
Opening the in- verter Installing the mounting brack- et on a brick or concrete wall... -
Page 17: Fitting The Mounting Bracket To A Timber Wall
Fitting the mounting brack- et to a timber wall Do not warp or When attaching the wall bracket to the wall or to a column, make sure that the deform the wall bracket is not warped or deformed. mounting brack-... -
Page 18: Attaching The Mounting Bracket To A Metal Carrier
The mounting bracket must be secured in at least four places. Installing the in- When mounting the inverter on a mast verter on a mast or a vertical carrier, Fronius recom- mends the use of a standard mast fix- ing kit. The kit can be used to mount the in- verter on round or rectangular masts with various cross-sections. -
Page 19: Notes On The Knockouts
Notes on the Knockouts Safety CAUTION! Danger of short circuit from loose metal parts from knockouts. Loose metal parts in the inverter may cause short circuits when the inverter is powered up. When removing knockouts, make sure that ▶ no loose metal parts fall into the connection area of the inverter, ▶... -
Page 20: Knocking Or Drilling Out Knockouts
Knocking or IMPORTANT! The side knockouts and the knockouts on the underside of the drilling out wall bracket may be knocked out using a hammer or screwdriver, or drilled out knockouts using a step drill. The knockouts at the back may only be drilled out using a step drill. Use suitable eye protection when knocking/drilling out the knockouts. -
Page 23: Suitable Grids
Suitable Grids Suitable Grids Inverters can be operated on the following grids: 208 V Delta, without neutral conductor 208 V Delta: 120 V WYE, with neutral conductor 220 V Delta, without neutral conductor 220 V Delta: 127 V WYE, with neutral conductor 240 V Delta, without neutral conductor 240 V: 120 V WYE, with neutral conductor 240 V: 120 V split phase, with neutral conductor... - Page 24 240 V Delta Setup: 240 240 V: 120 V Stinger Setup: 240N No neutral conductor Neutral conductor available 240 V: 120 V Split phase Setup: 240N Neutral conductor available...
-
Page 25: Connecting The Inverter To The Public Grid (Ac Side)
When the DC main switch is turned off, the connection area is still energized. ▶ Maintenance and service work on the inverter power stage set should only be carried out by Fronius-trained service technicians. ▶ All maintenance and service work should only be carried out when the invert- er and the mounting bracket have been disconnected from each other. -
Page 26: Permitted Cables
CAUTION! Danger due to improperly connected terminals. This can result in thermal damage to the inverter, which can lead to fires. ▶ When connecting the AC and DC cables, make sure that all terminals are tightened securely using the proper torque. CAUTION! Fire hazard due to incorrectly designed AC fuse. -
Page 27: Preparing Aluminum Cables For Connection
Preparing Alu- The AC-side terminals are designed for connecting single-wire, round aluminum minum Cables cables. Due to the reaction of aluminum with air that creates a tough, non-con- for Connection ductive oxide layer the following points must be considered when connecting alu- minum cables: Reduced rated currents for aluminum cables The connection requirements listed below... -
Page 28: Notes On Grid Connection
Notes on grid connection Grid Connection NOTE! In order to ensure a proper ground connection, all three GND ground terminals must be tightened with the specified torque during installation. NOTE! When connecting the AC cable to the AC terminal, create loops of min. 4 in. -
Page 29: Maximum Ac-Side Overcurrent Protection
Maximum AC- AC ~ side Overcurrent Protection max. 20 A Inverter Number Max. output Max. protection phases Fronius Galvo 208-240 1 / 2 1500 W 20 A 1.5-1 Fronius Galvo 208-240 1 / 2 2000 W 20 A 2.0-1 Fronius Galvo 208-240... -
Page 33: Notes On Solar Module Grounding In The Inverter
Notes on Solar Module Grounding in the Inverter Notes on solar The inverter comes with a GFDI fuse module ground for negatively grounded solar modules in the inverter as standard. CAUTION when using ungrounded sol- ar modules! For ungrounded solar modules: Remove the GFDI fuse DC = (+) Adjust the grounding settings in... - Page 34 For solar modules grounded on the DC = (+) positive pole: Remove the GFDI fuse in the in- verter Install GFDI fuse outside of the inverter Adjust the grounding settings in DC = (-) the BASIC menu DC = (+) DC = (-) Solar module ground at positive pole Solar modules grounded on the neg-...
-
Page 35: Notes On Dc Connection
When the DC main switch is turned off, the connection area is still energized. ▶ Maintenance and service work on the inverter power stage set should only be carried out by Fronius-trained service technicians. ▶ All maintenance and service work should only be carried out when the invert- er and the mounting bracket have been disconnected from each other. - Page 36 WARNING! Danger due to incorrect or insufficient solar module grounding. An electric shock can be fatal. ▶ The inverter is designed for solar module grounding at the negative pole as standard. Solar module grounding is carried out via a GFDI fuse in the invert- ▶...
-
Page 37: General Information About Solar Modules
Note the temperature coefficients in the solar module data sheet. More exact data for sizing the solar modules can be obtained using calcula- tion tools such as the Fronius Configuration Tool (available at http:// www.solarweb.com). See NEC table 690.7 for the appropriate code-related voltage adjustment factor for crystalline silicon modules, or use the manufacturer’s specified... -
Page 38: Notes On Laying Data Communication Cables
Cables In this case, a corresponding blanking cover (42,0405,2020) is optionally avail- able from Fronius. IMPORTANT! If data communication cables are to be used in the inverter, please note the following points: provide your own conduits for the data communication cables... -
Page 39: Notes On Clipping The Inverter Into The Wall Bracket
Notes on Clipping the Inverter into the Wall Bracket Clipping the In- The side areas of the housing lid are verter into the designed to function as carrying grips Wall Bracket and/or handles. NOTE! Lock For safety reasons, the inverter is fit- ted with a locking mechanism, which 2 x TX25 only allows the inverter to be swiveled... -
Page 40: Notes On Anti-Theft Device
Notes on Anti-theft device Anti-Theft An optional anti-theft device is included in the scope of delivery. Device If required, the anti-theft device is installed before the inverter is screwed to the wall bracket. To ensure that the fixing screws cannot fall out in the inverter's data communica- tions area, these are fitted with a screw release. - Page 41 Fit the padlock to the anti-theft device max 0.28 in. (7 mm)
-
Page 42: Notes On Software Updates
Notes on Software Updates Notes on Soft- Insert the USB stick in the inverter ware Updates data communication area Access the Setup menu Select the "USB" menu item Select "Update Software" Install the update... -
Page 43: Usb Stick As A Data Logger And For Updating Inverter Software
(sys, fld, csv). DALO.fld log file: Log file for reading out data in Fronius Solar.access. You can find additional information on the Fronius Solar.access Software in the "DATCOM Detail" operating instructions at http://www.fronius.com DATA.csv log file: A log file for reading out data in a spreadsheet program (e.g., Microsoft® Ex-... -
Page 44: Data Amount And Memory Capacity
Structure of the CSV file: Inverter no. Inverter type (DATCOM code) Logging interval in seconds Energy in watt-seconds with reference to the logging interval Inductive reactive power Capacitive reactive power Averages over the logging interval (AC voltage, AC current, DC voltage, DC current) Additional information Data Amount... -
Page 45: Buffer Memory
Datamanager 2.0 and the sections “Setting and Displaying Menu Items,” “Displaying and Setting Parameters in the ‘DATcom’ Menu Item”). For Fronius Eco or Fronius Symo 15.0-3 208, the buffer memory also works with pure DC voltage. Suitable USB... -
Page 46: Usb Stick For Updating Inverter Software
USB symbol on the inverter display, e.g., in the 'NOW' display mode: When the inverter recognizes a USB thumb drive, the USB symbol will ap- pear at the top right of the display. When inserting the USB thumb drive, make sure that the USB symbol is dis- played (it may also be flashing). -
Page 47: Notes On Maintenance
Maintenance Notice! For a horizontal installation position and installation outside: perform an annual check to ensure that all screw connections are tightly fastened. Maintenance and service work may only be carried out by Fronius-trained service technicians. Cleaning Wipe the inverter, if necessary, with a damp cloth. -
Page 48: Serial Number Sticker For Customer Use
Serial Number Sticker for Customer Use Serial number The inverter's serial number can be sticker for cus- found on the rating plate on the bot- tomer use tom of the inverter. The installation position may make it difficult to access or read the serial number, e.g.
