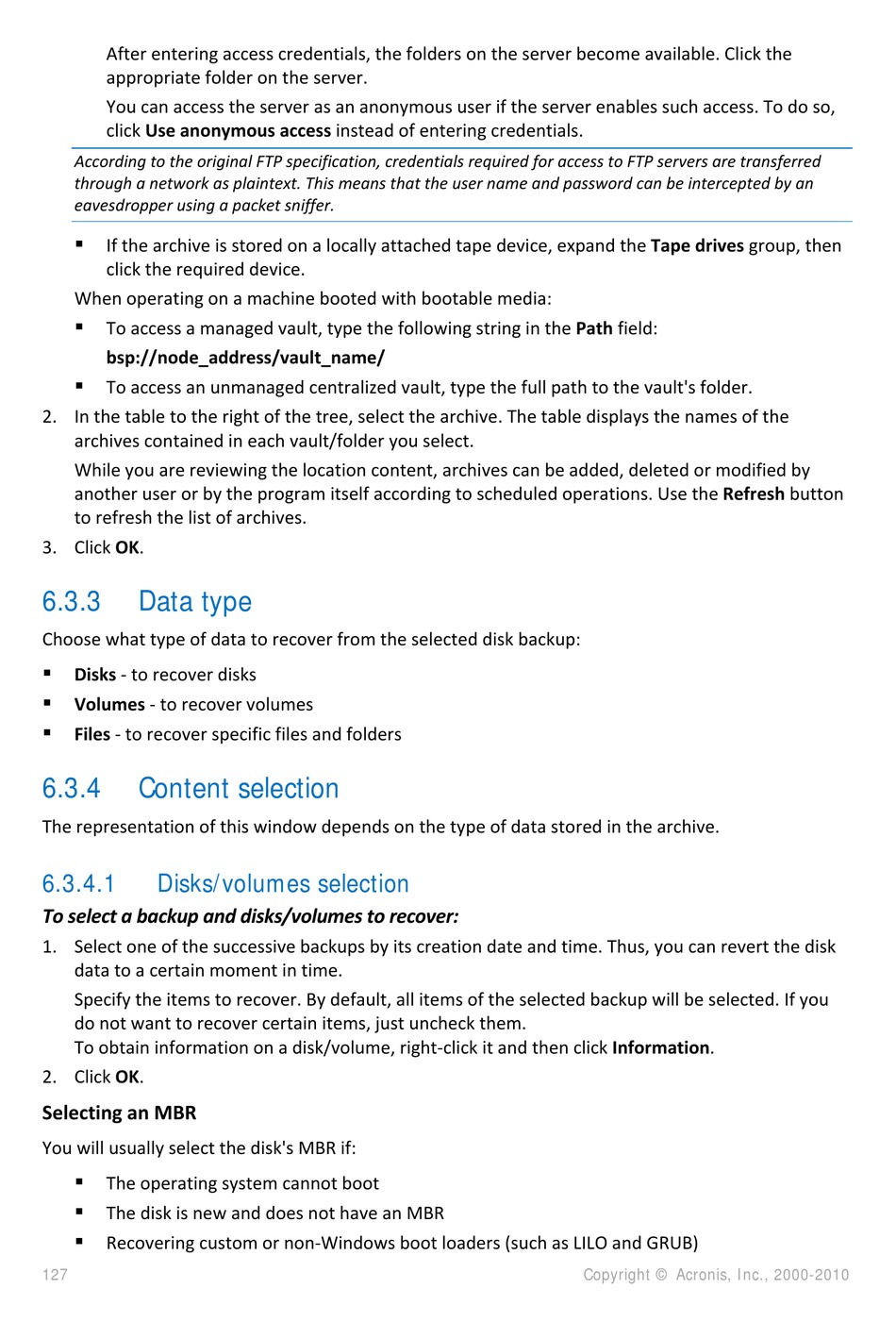

Data Type; Content Selection - ACRONIS BACKUP AND RECOVERY 10 SERVER FOR LINUX - UPDATE 3 User Manual

After entering access credentials, the folders on the server become available. Click the
appropriate folder on the server.
You can access the server as an anonymous user if the server enables such access. To do so,
click Use anonymous access instead of entering credentials.
According to the original FTP specification, credentials required for access to FTP servers are transferred
through a network as plaintext. This means that the user name and password can be intercepted by an
eavesdropper using a packet sniffer.

If the archive is stored on a locally attached tape device, expand the Tape drives group, then
click the required device.
When operating on a machine booted with bootable media:
 To access a managed vault, type the following string in the Path field:
bsp://node_address/vault_name/
 To access an unmanaged centralized vault, type the full path to the vault's folder.
2. In the table to the right of the tree, select the archive. The table displays the names of the
archives contained in each vault/folder you select.
While you are reviewing the location content, archives can be added, deleted or modified by
another user or by the program itself according to scheduled operations. Use the Refresh button
to refresh the list of archives.
3. Click OK.
6.3.3

Data type

Choose what type of data to recover from the selected disk backup:
 Disks - to recover disks
 Volumes - to recover volumes

Files - to recover specific files and folders
6.3.4

Content selection

The representation of this window depends on the type of data stored in the archive.
6.3.4.1 Disks/volumes selection
To select a backup and disks/volumes to recover:
1. Select one of the successive backups by its creation date and time. Thus, you can revert the disk
data to a certain moment in time.
Specify the items to recover. By default, all items of the selected backup will be selected. If you
do not want to recover certain items, just uncheck them.
To obtain information on a disk/volume, right-click it and then click Information.
2. Click OK.
Selecting an MBR
You will usually select the disk's MBR if:

The operating system cannot boot
 The disk is new and does not have an MBR
 Recovering custom or non-Windows boot loaders (such as LILO and GRUB)
127 Copyright © Acronis, Inc., 2000-2010
