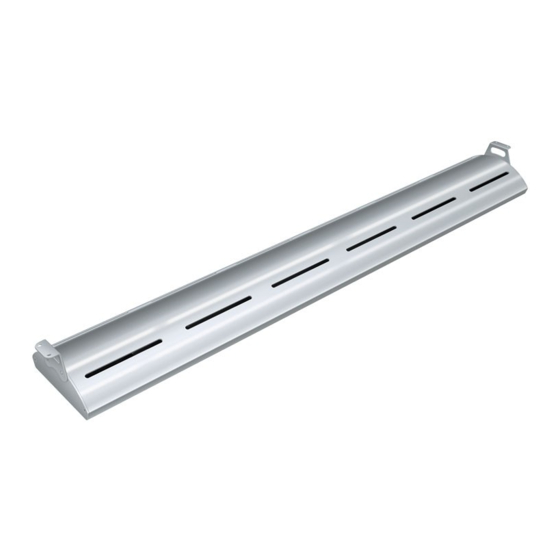

Curved Infrared Strip Heaters
GM5AH and GM5AHL Series/系列
Installation and Operating Manual
Do not operate this equipment unless you have read
and understood the contents of this manual! Failure
to follow the instructions contained in this manual
may result in serious injury or death. This manual
contains important safety information concerning
the maintenance, use, and operation of this product.
If you're unable to understand the contents of this
manual, please bring it to the attention of your
supervisor. Keep this manual in a safe location for
future reference.
English = p 2
P/N 07.04.939.00
GLOMAX
弧形长条形保温灯
安装及操作手册
WARNING
®
请在认真阅读并理解本手册的内容后再操作本设
备！不按照本手册中的说明操作可能会导致严重
的人身伤亡事故。本手册中包含了有关本产品维
护、使用和操作的重要安全事项。如果您不理解
本手册的内容，请将本手册交给主管人员，以提
请其注意。请将本手册妥善放置，以便参照。
中文 = 第 14 页
© 2020 Hatco Corporation
