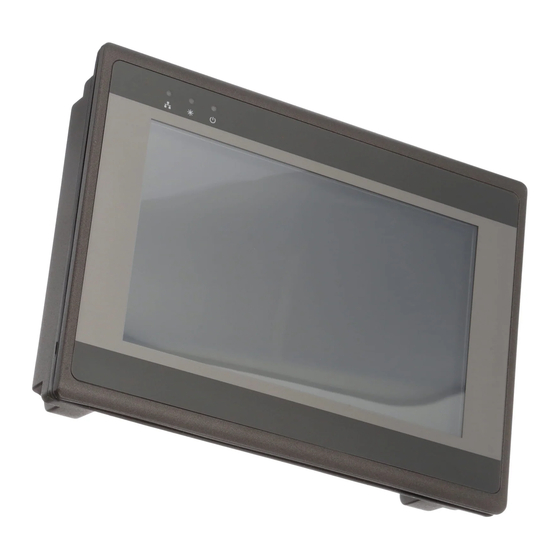

HMI5000P Series
Installation Guide
Introduction
Thank you for purchasing a Maple Systems HMI5000P Series graphic
industrial operator interface terminal. This booklet describes the steps
necessary for installing the following models:
HMI5070P
HMI5121P
HMI5150P
The HMI5000P Series touchscreens are configured using the
EasyBuilder Pro Software.
For information on programming and configuring the HMI, please refer to
the EasyBuilder Pro Programming Manual available for free download
on the Maple Systems website in the Support Center.
For additional information, please refer to the Support Center section of
the Maple Systems website, www.maplesystems.com.
The Support Center provides links to information such as Software
Downloads, Manuals, FAQs, Technical Notes, Training Videos, Sample
Projects, Controller Information Sheets, Controller Cables, and more.
