Summary of Contents for AUDAC HS208TMK2

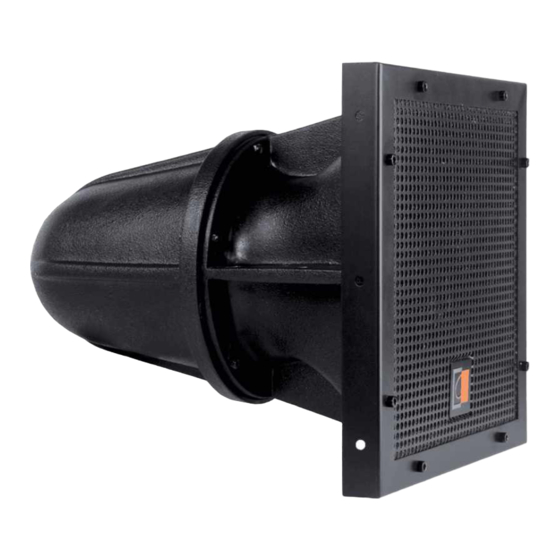

- Page 1 HS208(T)MK2 User & Installation Manual www.audac.eu...
- Page 3 The HS208MK2 is the 8” model of the HS2xx family consisting of a 8” high-output woofer and a compression driver with 1.3” voice coil. The compression driver is equipped with an overload protection and is fitted with a 40°...
- Page 4 Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY • ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY • ALWAYS HANDLE THIS UNIT WITH CARE • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS • DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS OR OTHER APPARATUS THAT PRODUCE HEAT •...
-
Page 5: Caution - Servicing
CAUTION • USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER • USE CABLES WITH CLEAR COLOUR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM. • ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES. - Page 6 Installing the HS208(T)MK2 Mounting An optionally available U-shaped mounting bracket (MBK208Z) allows safe and secure installation for the HS208(T)MK2 speakers. It is recommended to use this mounting bracket for installation of the loudspeakers. If the application requires any other specific mounting method which is not possible using this accessory, make sure the used installation method is sufficient strong and the surface whereto the speaker is installed can support the speakers weight.
- Page 7 The mounting bracket includes all parts as listed below. Make sure all these parts are included with the delivery to ensure a safe and secure mounting of the loudspeaker. - 1 x U-shaped metal bracket - 1 x Left side L-shaped mounting ear - 1 x Right side L-shaped mounting ear - 1 x 75 cm steel drop safety wire with U-shackle - 10 x M10x35 mm bolts with nuts + washer...
- Page 8 Connecting Connection of low impedance version (HS208MK2): The connection of the low impedance version (HS208MK2) is made using SpeakON connectors. Two connectors are provided on the bottom side of the speakers’ enclosure. The used models are 4-pin types, whereto the signal coming from the amplifier shall be applied on the +1 and -1 terminals.
- Page 9 Once the connection has been made to the required power taps, the cable gland should be tightened to avoid any moisture entering the waterproof connection box. Then the cover of the waterproof connection box shall be re-assembled using the four screws. Mind the polarity markings when wiring the loudspeaker cables.
-
Page 10: Additional Information
Additional Information Technical specifications HS208MK2 HS208TMK2 Max Power 300 Watt 300 Watt RMS Power 150 Watt 150 Watt Nominal impedance 8 Ohm 8 Ohm Line Transformer Taps 120 Watt / 83 Ohm 60 Watt / 167 Ohm 30 Watt / 333 Ohm... - Page 11 Notes...
