ROLLS CORPORATION
SALT LAKE CITY, UTAH
02/10
RA63b

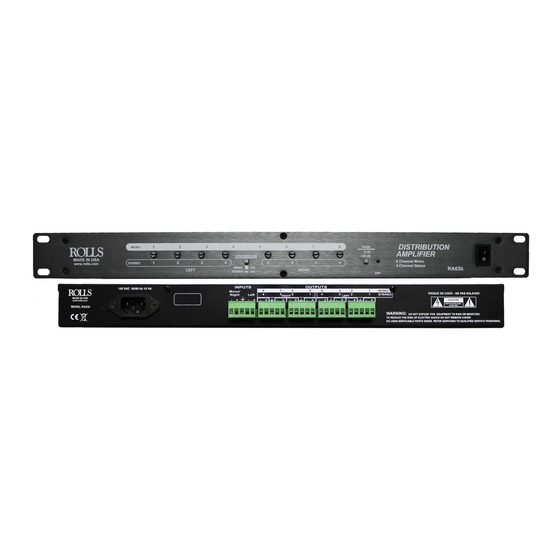

DISTRIBUTION AMPLIFIER
MADE IN USA
STEREO
www.rolls.com
GAIN
6
7
8
0 dB
+20 dB
2
3
4
RIGHT
pwr
FEATURES
• Stereo 4 channel, Mono 8 channel audio distribution
• Screw driver adjustable front panel volume controls
• Balanced inputs and outputs
SPECIFICATIONS
Input Impedance:
Max Input Level:
I/O Connectors:
Output Impedance:
Max Output Level:
Max Gain:
S/N Ratio:
Frequency Response:
THD:
Power:
Size:
Weight:
1
2
3
4
MONO
1
2
3
4
LEFT
STEREO:
DISTRIBUTION
AMPLIFIER
8 Channel Mono
4 Channel Stereo
RA63b
100 KΩ balanced
+22 dBV
Screw terminal; + -, and ground
50 Ω balanced
+24 dB
20 dB
>90 dB
10 Hz - 40 kHz, +/- 1 dB
<.008%
120 VAC 50-60 Hz, 15VA
19" x 1.75" x 6.5"
(48 x 4.5 x 17 cm)
7 lbs. (3 kg)
Quick Start Guide
5
CONFIGURATION
1
1X8
MONO:
2X4
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rolls RA63B
Summary of Contents for Rolls RA63B
-
Page 1: Quick Start Guide
10 Hz - 40 kHz, +/- 1 dB THD: <.008% Power: 120 VAC 50-60 Hz, 15VA Size: 19” x 1.75” x 6.5” (48 x 4.5 x 17 cm) Weight: 7 lbs. (3 kg) ROLLS CORPORATION SALT LAKE CITY, UTAH Quick Start Guide 02/10... - Page 2 INTRODUCTION INSTALLATION Thank you for your purchase of the ROLLS RA63b Distribution Amplifi er. This Install the RA63b in a standard 19” rack. The unit is intended for installations unit will distribute a mono signal to eight outputs, or a stereo signal to four right where several zones or areas need to be controlled and a high level balanced and four left outputs.
