Rolls PM55P Quick Start Manual

The PM55P is a unique device for monitoring one's self and
program material at the same time. It has a monitor level control
and a mic level control, a mic pass-through XLR jack, headphone
output jacks and a switchable stereo/mono 1/4" monitor input
jack.
The PM55P is designed for performers who need to monitor
their own signal, such as their vocals, with the main mix. It is
very popular with drummers who need to mix a click track with
a monitor signal. Church choir singers use the PM55P to moni-
tor their voices over the musicians. Many sound technicians
also use the PM55P as a quick line tester to troubleshoot audio
systems.
The PM55P features all these benefits in a convenient, battery-
powered, package.
What's in the box?
1 - Made in USA PM55P
1 - 15V power supply PN PS27s
1 - This owners manual
Rolls Corporation
Salt Lake City, UT
9/18
Made in USA ww.rolls.com

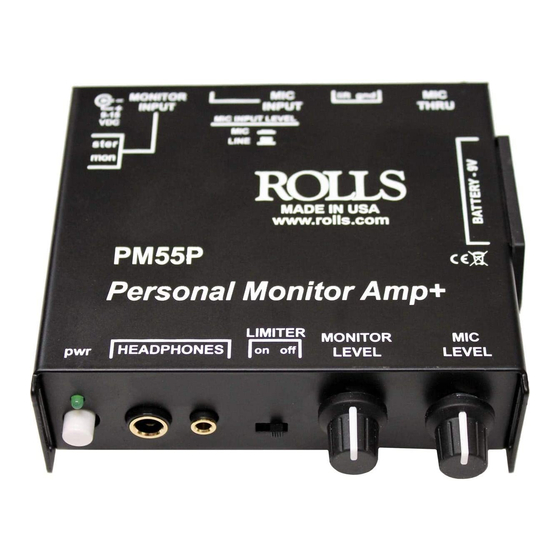

PM55P
Personal Monitor with Limiter
- Studio
- Live
- Broadcast
... Anywhere you need versatile, clear and loud
personal monitoring.
SPECIFICATIONS
Max Input Level:
Input Impedance:
Output Impedance:
Gain:
Bandwidth:
S/N Ratio:
Limit Threshold:
Current Draw:
Max Output Level:
Power:
Size:
Weight:
-20 dB XLR, 40 dB monitor
600 Ohm Mic,
22k Ohm Monitor
10 Ohms
20 dB 1/4", 50 dB XLR
50 - 20 kHz
90 dB
0 dB
70 Mils Nominal
100 Mil Watts @ 16 Ohm.
9 - 15 VDC
4.5" x 4" x 1.375"
1 lb (.45 Kg)

Quick Start Guide
