PM50s
Personal Monitor
Amplifier
MIC
THRU
gnd
lift

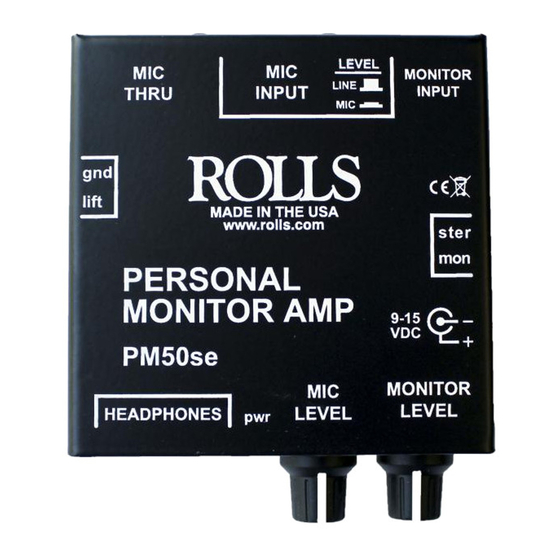

PERSONAL
MONITOR AMP
PM50s
PHONES
SPECIFICATIONS
Max Input Level:
-20 dB XLR, 40 dB monitor
Output Impedance:
10 Ohms
Gain:
15 dB 1/4", 50 dB XLR
Bandwidth:
20 - 20 kHz
S/N Ratio:
90 dB
Power:
9 - 18 VAC/DC
Size:
3" x 2.5" x 1.25" (7.6 x 6 x 3.2 cm)
Weight:
1 lb (.45 Kg)
MIC
MONITOR
INPUT
INPUT
ster
mon
9 - 15
VDC
MONITOR
MIC
LEVEL
LEVEL
pwr
Owners Manual
Advertisement
Table of Contents
Related Manuals for Rolls PM50SE
Summary of Contents for Rolls PM50SE
- Page 1 PM50s Personal Monitor Amplifier MONITOR THRU INPUT INPUT ster lift PERSONAL MONITOR AMP 9 - 15 PM50s MONITOR LEVEL LEVEL PHONES SPECIFICATIONS Max Input Level: -20 dB XLR, 40 dB monitor Output Impedance: 10 Ohms Gain: 15 dB 1/4", 50 dB XLR Bandwidth: 20 - 20 kHz S/N Ratio:...
- Page 2 WARNING INTRODUCTION Thank you for your purchase of the PM50s Stereo Personal Monitor USING THIS SYSTEM AT EXCESSIVE VOLUMES CAN CAUSE Amplifier. This unit is a unique device for monitoring ones self and pro- PERMANENT HEARING DAMAGE. gram material at the same time. It has a monitor level control and a mic USE AS LOW A VOLUME AS POSSIBLE level control, a mic pass-through XLR jack, 1/4"...
