Rolls RA62c Specifications

RA62c Six Channel Headphone RA62c Six Channel Headphone RA62c Six Channel Headphone
Mixer/Amplifier Mixer/Amplifier

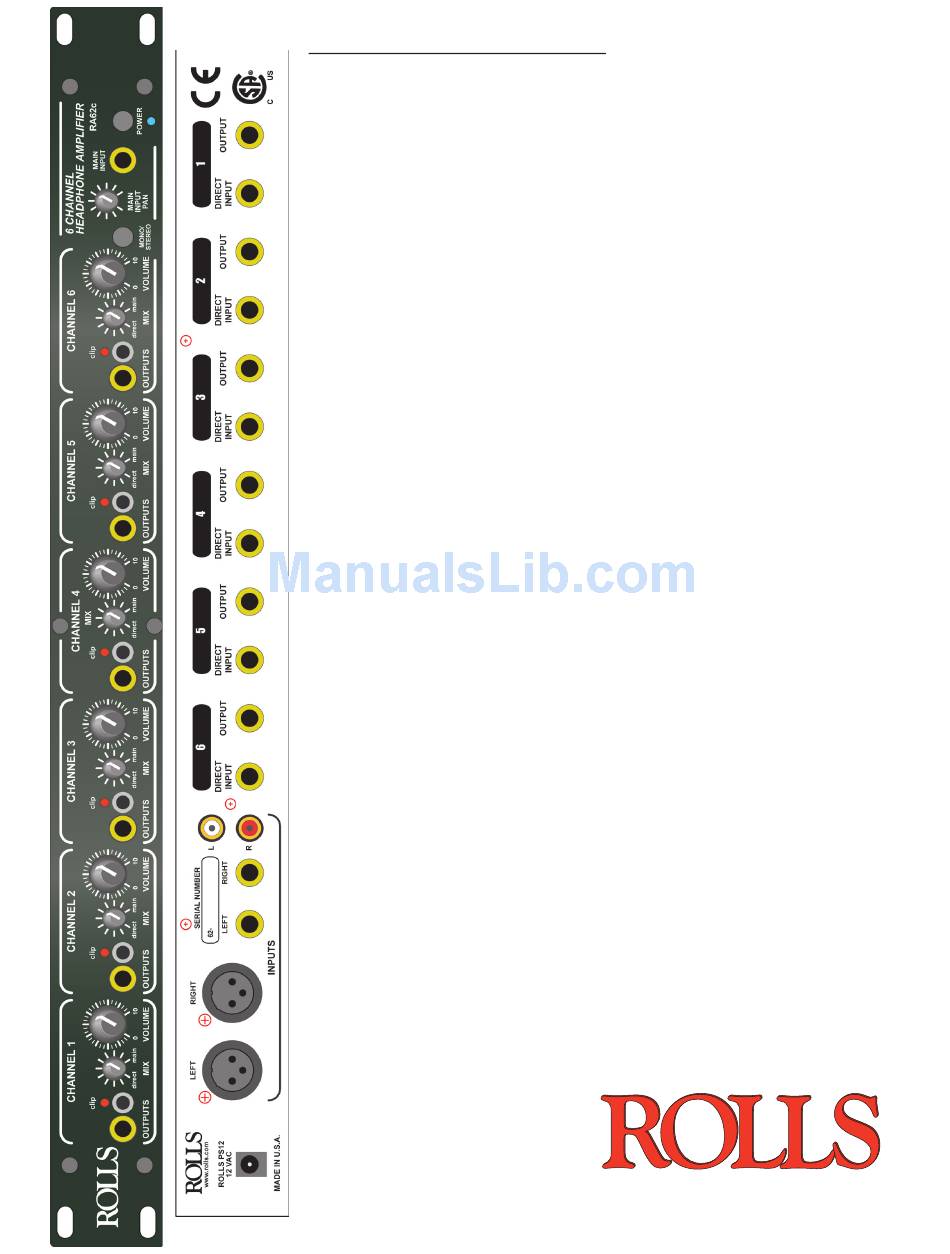

The ROLLS RA62c is a six-channel headphone/earphone amplifier for professional audio moni-
toring. A variety of input options are available including 1/4", RCA, and balanced XLR. Since the
MONO/STEREO switch is after the pan control, it will mix 2 MONO signals and their balance can
be adjusted with the Pan control. With the addition of rear panel Direct Input connectors, each
channel may mix a second stereo signal.

FEATURES:

• Six Channels of clean, quiet headphone/earphone amplification
• Individual Direct Inputs to mix separate stereo signal with Main Input signals
• 1/4" and 3.5mm Headphone/Earphone Outputs
• LED Clip indication
• Stereo/Mono operation

SPECIFICATIONS

Input Impedance:
Max Input Level:
Input Connectors:
Outputs:
Max Gain:
Max Output Power:
Frequency Response:
S/N Ratio:
THD:
IMD:
Phase Shift (In to Out):
Slew Rate:
Crosstalk:
Power
Weight:
Size:
10K Ohms unbalanced
+18 dBV
1/4" TRS stereo, R & L bal. / unbal. 1/4"
RCA, R & L balanced XLR
6: 1/4" TRS Direct Input jacks
12: 1/4" TRS Stereo jacks
6: 1/8" (3.5 mm) TRS Stereo jacks
20 dB/Channel
up to 300 mW/side, 600 mW/Channel ( @ 16 Ohms )
DC - 30 kHz
90 dB
<.008%
<.008%
0 deg.
25 V per microsecond Second
- 65 dB
12 VAC (Rolls Model PS12)
7 lbs (3KG)
19" x 1.75" x 6.5" (48cm x 4.5cm x 17cm)
5968 South 350 West, Salt Lake City, UT 84107
(801) 263-9053 FAX (801) 263-9068
info@rolls.com • www.rolls.com
ROLLS Coporation
