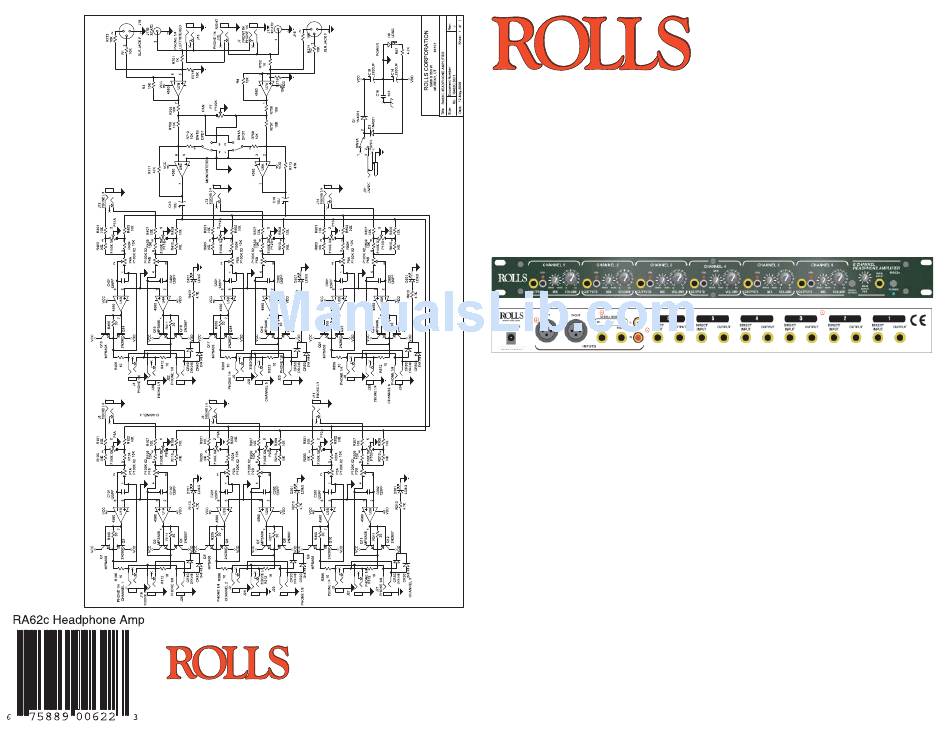

SCHEMATIC
ROLLS CORPORATION
SALT LAKE CITY, UTAH
6/11

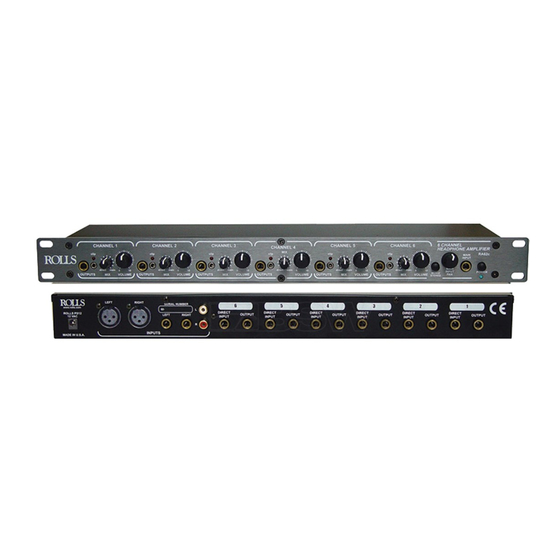

RA62c
Six Channel
Headphone Mixer/Amplifi er
SPECIFICATIONS
Input Impedance:
10K Ohms unbalanced
Max Input Level:
+18 dBV
Input Connectors:
1/4" TRS stereo, R & L bal. / unbal. 1/4"
RCA, R & L balanced XLR
6: 1/4" TRS Direct Input jacks
Outputs:
12: 1/4" TRS Stereo jacks
6: 1/8" (3.5 mm) TRS Stereo jacks
Max Gain:
20 dB/Channel
Output Power:
972 mW/side, 1944 mW/Channel ( @ 32 Ohms )
Frequency Response:
DC - 30 kHz
S/N Ratio:
90 dB
THD:
<.008%
IMD:
<.008%
Phase Shift (In to Out):
0 deg.
Slew Rate:
25 V per microsecond Second
Crosstalk:
- 65 dB
Power
12 VAC (Rolls Model PS12)
Weight:
7 lbs (3KG)
Size:
19" x 1.75" x 6.5" (48cm x 4.5cm x 17cm)
Quick Start Guide
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Rolls RA62C
Summary of Contents for Rolls RA62C
-
Page 1: Quick Start Guide
Phase Shift (In to Out): 0 deg. Slew Rate: 25 V per microsecond Second Crosstalk: - 65 dB Power 12 VAC (Rolls Model PS12) Weight: 7 lbs (3KG) Size: 19” x 1.75” x 6.5” (48cm x 4.5cm x 17cm) Quick Start Guide... - Page 2 STEREO IN Input, or the rear panel LEFT Input. This cable may come from a mixer’s headphone output for example. To send a mono signal to the RA62c, connect an XLR jack to either Main Input, or a single 1/4” Tip-Sleeve plug into rear panel Right Input and press in the front panel MONO/STEREO switch.
