Rolls PM50s Owner's Manual

Rolls PM50s Owner's Manual

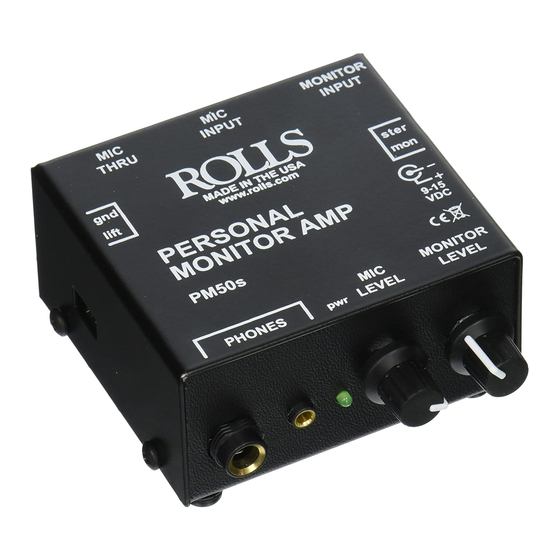

Personal monitor amplifier

Advertisement

PM50s
Personal Monitor
Amplifier
MIC
THRU
INPUT
gnd
lift
PERSONAL
MONITOR AMP
PM50s
PHONES
pwr

SPECIFICATIONS

Max Input Level:
-20 dB XLR, 40 dB monitor
Output Impedance:
10 Ohms
Gain:
15 dB 1/4", 50 dB XLR
Bandwidth:
20 - 20 kHz
S/N Ratio:
90 dB
Power:
9 - 18 VAC/DC
Size:
3" x 2.5" x 1.25" (7.6 x 6 x 3.2 cm)
Weight:
1 lb (.45 Kg)
MIC
MONITOR
INPUT
ster
mon
9 - 17
VDC
MONITOR
MIC
LEVEL
LEVEL

Owners Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PM50s and is the answer not in the manual?

Questions and answers

Summary of Contents for Rolls PM50s

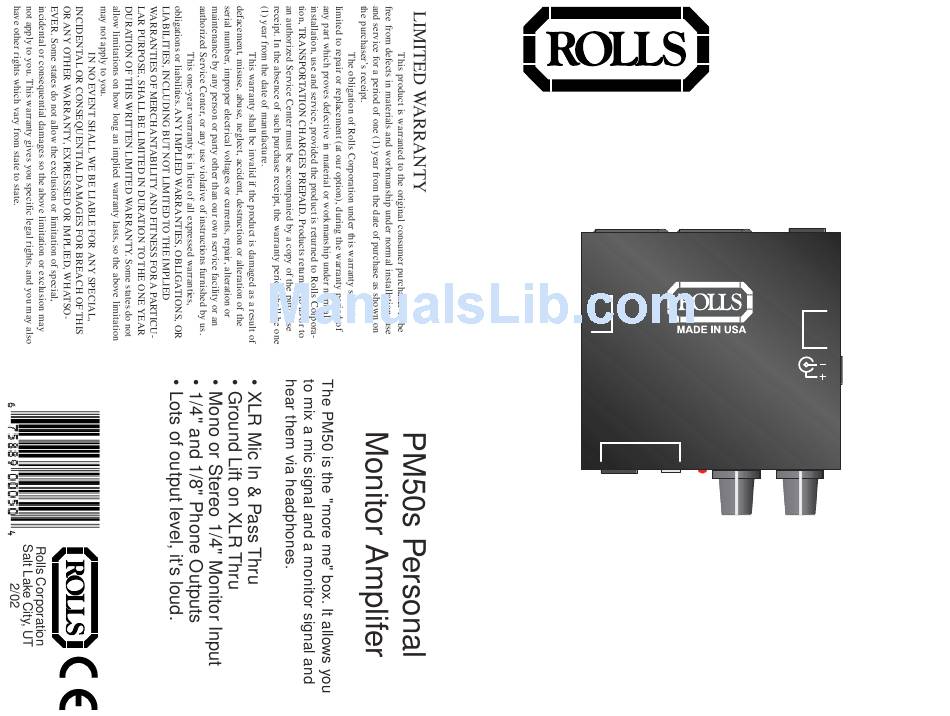

  • Page 1: Owners Manual

    PM50s Personal Monitor Amplifier MONITOR THRU INPUT INPUT ster lift PERSONAL MONITOR AMP 9 - 17 PM50s MONITOR LEVEL LEVEL PHONES SPECIFICATIONS Max Input Level: -20 dB XLR, 40 dB monitor Output Impedance: 10 Ohms Gain: 15 dB 1/4", 50 dB XLR...
  • Page 2 Follow these guidelines in the use of this product to protect your ears from damage: cassis ground. The PM50s is configured at the factory with pin 1 connected to 1. Turn up the volume only to the point where hearing is comfortable.
