Summarization of Contents
1 INTRODUCTION

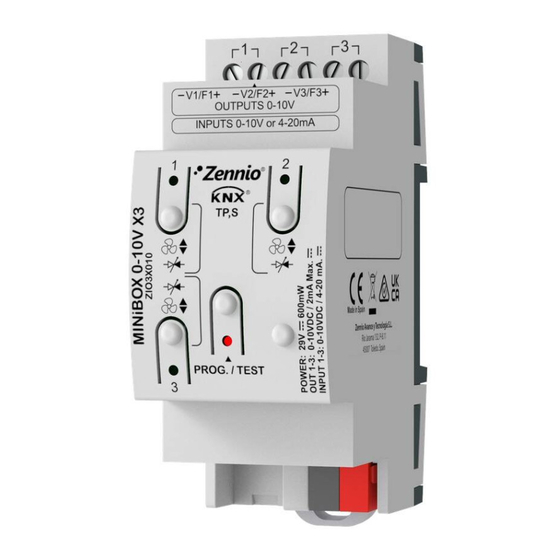

1.1 MINIBOX 0-10V X3/X2/X1
Overview of the three device versions and their capabilities.
1.2 Installation
How to connect MINIBOX 0-10V devices to the KNX bus.
1.3 Start-Up and Power Loss
Device behavior during startup and after power failures.
2 CONFIGURATION
2.1 General
Activate/deactivate device functionalities via ETS parameters.
Heartbeat (Periodic Alive Notification)
Configure periodic status updates for device health monitoring.
Device Recovery Objects
Define communication objects for device status after bus failure.
2.2 Analog Input
Connect sensors for measuring voltage or current signals.
2.3 Analog Voltage Output
Control loads like fans and valves with 0-10V analog outputs.
2.3.1 Operating Time Counter
Record the operational time of an analog output.
2.4 Fan Coil
Control fan and valves for 2 or 4 pipes fan coil units.
2.5 Thermostats
Enable and configure independent Zennio thermostats.
2.6 Logic Functions
Perform numeric/binary operations and send results via objects.
2.7 Manual Control
Control device outputs using on-board pushbuttons.
