- Page 1 SB & SR Series Centrifugal Pump Installation and Operation Manual USER MANUAL SASO geprüfte Sicherheit Model: SB & SR Series EMPU21061901...
-
Page 2: Table Of Contents
TABLE OF CONTENT ..WARNINGS AND SAFETY INSTRUCTIONS ..1. SB AND SR SERIES CENTRIFUGAL PUMP OVERVIEW 2. PRODUCT INFORMATION (SB SERIES) ..3. PRODUCT INFORMATION (SR SERIES) ..4. IMPORTANT SAFETY INSTRUCTIONS ..5. INSTALLATION 5.1 PIPING 5.2 ELECTRICAL WIRING 5.3 ELECTRICAL WIRING–... -
Page 3: Warnings And Safety Instructions
WARNINGS AND SAFETY INSTRUCTIONS GENERAL WARNING This instruction contain general caution information for use in Pool and SPA pump installation application. Specified Pump model function should be refer to particular manual. Components such as the filtration system, pumps and heater must be positioned so as to prevent their being used as means of access to the pool by young children. - Page 4 SUCTION ENTRAPMENT HAZARD This pump produces high levels of suction and creates a strong vacuum at the main drain at the bottom of your pool and spa. This suction is so strong that it can trap adults or children under water if they come in close proximity to a pool or spa drain or a loose or broken drain cover or grate.
-
Page 5: Sb And Sr Series Centrifugal Pump Overview

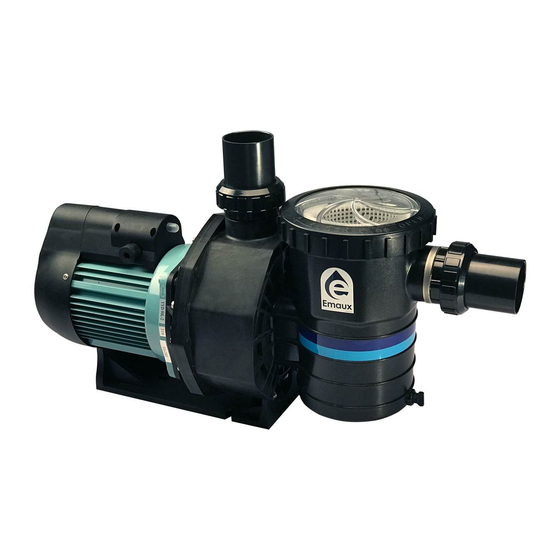

1. SB AND SR SERIES CENTRIFUGAL PUMP OVERVIEW It is a mediumpower, low noise and easy to maintenance self-priming pump for medium residential in ground pool installation. SB series Pre-filter with transparent Lid cover easy to observe the basket need to be clean or not. IPX5 aluminum motor enclosure design is good for outdoor deployment and heat dissipation. -
Page 6: Product Information (Sr Series)
PERFORMANCE CURVE U.S.g.p.m H(ft) η% SB30 SB20 SB15 SB10 Q(m³/h) Q(LPM) 3. PRODUCT INFORMATION (SR SERIES) Head(m) Model Input Current Noise 50Hz (kW) (AMP) (dB) FlowRate(m³/h) SR10 0.97 – 18.8 14.8 11.6 SR15 1.30 SR20 1.80 20.5 29.2 SR30 2.18 10.5 30.5 Connection... -
Page 7: Important Safety Instructions
DIMENSIONS PERFORMANCE CURVE U.S.g.p.m H(ft) SR30 SR20 SR15 SR10 10 12 Q(m³/h) Q(LPM) 4. IMPORTANT SAFETY INSTRUCTIONS The user guide you are holding includes essential information on the safety measures to be implemented for installation and start-up. Therefore, the installer as well as the user must read the instructions before beginning installation and start-up. -
Page 8: Installation
1. A protective device is to be installed in the fixed wiring. 2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 9: Electrical Wiring
MIN 5 X SUCTION PIPE DIAMETER ELBOW Veritcal lift no more than 3m(10ft) Recommended Piping Note: The pump suction and discharge connections are mounded in thread stops, DO NOT try to screw the pipe beyond these stops. SB and SR series pump has 2 sets 2” union adaptor in internal and external thread and universal design for metric and imperial PVC pipe connection. - Page 10 3 phase Cable 3 phase Cable New Wire Color Code Old Wire Color Code Brown L/L1 L/L1 Black Yellow Grey Blue Blue Black Earth Green & Yellow Earth Green & Yellow DOL starting is the simplest, cheapest and most common starting method. It actually gives the lowest temperature rise within the motor during startup of all the starting methods.
-
Page 11: Start Up
Wiring Box Diagram: SB10, SB15,SB20, SB30, SR10, SR15, SR20. SR30 all model 220Vac 50/60Hz. Circuit Breaker Capacitor Holder Ground Capacitor 6. START UP 1. Verify the pump shaft turn freely. 2. Check the mains voltage, current and frequency are accordingly to the name plate. 3. -
Page 12: Routine Maintenance
7. ROUTINE MAINTENANCE The pump mechanical seal requires no lubrication and service. The only routine maintenance needed is the inspection and cleaning of the pre-filter basket. Debris or trash collected in the basket will choke off the water flow through the pump. Follow the instructions below in order to clean the pre-filter basket: 1. -
Page 13: Trouble Shooting
9. TROUBLE SHOOTING Problem description Possible causes 1. Disconnect switch or circuit breaker in off position 2. Fuses blow nor thermal over load open 3. Locked motor shaft Motor does not start 4. Motor windings burned out 5. Defective starting switch inside single phase motor 6. -
Page 14: Replacement Parts
10. REPLACEMENT PARTS 10.1 SB SERIES 18 19 220V/50Hz 110V/60Hz Key No. Part No. Description 01021008 Nut for lid 01041022 Transparent Lid 02010248 O-Ring for Lid 01111030 Basket 89021305 Pre-Filter Body 89280103 2.0" Union (Black/ White Colour) 89021307 Drain Plug with O-ring 02011115 Square Gasket 03011083... - Page 15 Key No. Part No. Description 89021303A Motor SB/ SR20 (220V/50Hz) 89021304 Motor SB/ SR30 (220V/50Hz) 89021401 Motor SB/ SR10 (220V/60Hz) 89021402 Motor SB/ SR15 (220V/60Hz) 89021403 Motor SB/ SR20 (220V/60Hz) 89021404 Motor SB/ SR30 (220V/60Hz) 89021601 Motor SB/ SR10 (380V/50Hz) 89021602 Motor SB/ SR15 (380V/50Hz) 89021603...
-
Page 16: Sr Series
10.2 SR SERIES 11 12 13 (110V/60Hz) (220V/50Hz) Key No. Part No. Description 89280103 2.0" Union (Black/ White Colour) 89023601 Connecting Fitting 89021308 Pump body for SB,SR 89021309 Screw for Impeller with O-Ring 02011108 O-Ring for Diffuser 01111015 Diffuser 01311001 Impeller SR10 (110V/60Hz)/ (220V/60Hz) 01311002 Impeller SR20 (110V/60Hz)/ (220V/60Hz) -
Page 17: Terms Of The Warranty
It excludes all expendable parts. During the warranty period, Emaux authorized reseller will repair or replace defective parts with new parts or, at the option of Emaux, serviceable used parts that are equivalent or superior to new parts in performance. - Page 18 EMAUX WATER TECHNOLOGY CO., LTD STRIVE FOR CLEAR WATER www.emauxgroup.com...
