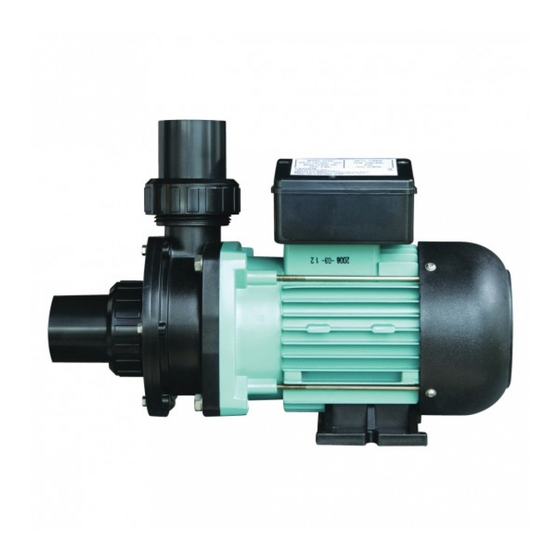

emaux ST Series Instructions

10
10
18
5
4
1 2 3 6 7 8 9 11

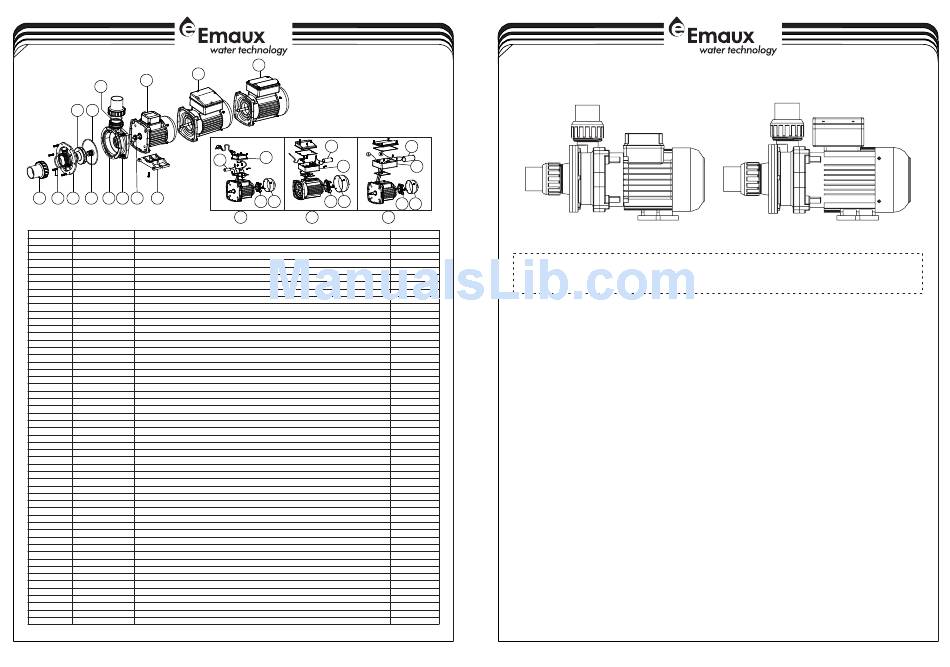

PUMP PARTS FOR ST
Key No. Part No.
1* 89280105 1.5"union (Black/ White Colour)
2 89022103 M5*16 Screw for pump front with Washer
3 01021046 ST SD Pump Body Cover
4 02011076 O-Ring for Pump Body
5 01311015 Impeller SD020/SD50/SQ20/SQ50/SS20/SS50/ST20/ST50
5 01311016 Impeller SD33/SD75/SQ33/SQ75/SS33/SS75/ST33/ST75
5 01311017 Impeller SD050/SD100/SQ050/SQ100/SS050/SS100/ST050
5 01311018 Impeller SD075/SD120/SQ075/SQ120/SS075/SS120/ST075
5 01311019 Impeller SD100/SQ100/SS100/ST100(220V/50HZ)
5 01311014 Impeller SS120(220V/50HZ)
5 01311023 Impeller SD020/SQ020/SS020/ST020(220V,110V/60HZ)
5 01311024 Impeller SD033/SQ033/SS033/ST033(220V,110V/60HZ)
6 04015033 1/2" Mechanical Seal
7 01021024 SD SQ ST Pump Body
8 89022104 M8 x 25 Screw with Washer for Motor
9 02011156 Motor Slinger
10 89022109 Motor SD020/SQ020/SS020/ST020(220V/50HZ)
10 89022110 Motor SD033 (220V/50Hz)
10 89022105 Motor SD050/SQ050/SS050/ST050(220V/50HZ)
10 89022106 Motor SD075/SQ075/SS075/ST075(220V/50HZ)
10 89022107 Motor SD100/SQ100/SS100/ST100(220V/50HZ)
10 89022108 Motor SD120/SQ120/SS120/ST120(220V/50HZ)
10 89022201 Motor SD/SQ/SS/ST020(220V/60HZ)
10 89022202 Motor SD/SQ/SS/ST033(220V/60HZ)
10 89022203 Motor SD/SQ/SS/ST050(220V/60HZ)
10 89022204 Motor SD/SQ/SS/ST075(220V/60HZ)
10 89022205 Motor SD/SQ/SS/ST100(220V/60HZ)
10 89022206 Motor SD/SQ/SS/ST120(220V/60HZ)
10 89022305 Motor SD/SQ/SS/ST020(110V/60HZ)
10 89022306 Motor SD/SQ/SS/ST033(110V/60HZ)
10 89022301 Motor SD/SQ/SS/ST050(110V/60HZ)
10 89022302 Motor SD/SQ/SS/ST075(110V/60HZ)
10 89022303 Motor SD/SQ/SS/ST100(110V/60HZ)
10 89022304 Motor SD/SQ/SS/ST120(110V/60HZ)
11 89022101 Base with M5 x 20 Screw
12 04016028 Capacitor for SS/SD/SQ/ST050 Pump 110V
12 04016019 Capacitor for SC050 & SS/SD/SQ/ST075 Pump 110V
12 04016021 Capacitor for SC075 & SS/SD/SQ/ST100-124 Pump 110V
12 04016009 Capacitor for SS/SD/SQ/SP/ST050 Pump
12 04016010 Capacitor for SS/SD/SQ/SP/ST075 & SC050 Pump
12 04016012 Capacitor for SS/SD/SQ/SP/ST100-120
12 04016032 Capacitor for SS/SD/SQ/ST020 Pump 110V
12 04016033 Capacitor for SS/SD/SQ/ST033 Pump 110V
12 04016030 Capacitor for SS/SD/SQ/ST020 AMU020P/TP(50/60Hz)
12 04016031 Capacitor for SS/SD/SQ/ST033 Pump
13 89022111 Cable Box for SQ/ST/SD020-033, SS020-SS030 Pump
14 89022112 Cable Box for SD,SQ,SP,ST050-120 Pump
15 89021505 Cable Box for ST050-ST075 Pump (110V/60HZ)
16 01031027 Cooling fan for SS/SD/SQ/ST050-SS/SD/SQ/ST120 Pump
16 01031026 Cooling fan for SS/SD/SQ/ST020-SS/SD/SQ/ST030 Pump
17 01031011 Fan Cover for SS/SD/SQ/ST020-SS/SD/SQ/ST030 Pump
17 01031010 Fan Cover for SQ/SP/SS/SD/ST050-SQ/SP/SS/SD/ST120
18 02011104 O-Ring for 1.5" Union
Notes:1* 89280105B is 1.5"union in Black Colour
1* 89280105W is 1.5"union in White Colour
10
12
13
12
14
16 17 16 17
10 10 10
220V 50HZ 220V 50HZ
Description
4
ST & ST Series Pump A
12
15
16 17
110V 60HZ
Qty
2
6
1
1
Before installation, be sure to read all instructions and warnings carefully.
1
Refer to product data plate(s) for additional operating instruction and specifications.
1
1
1
1
1
1
INSPECTION
1
1
1
Examine the equipment when received. Notify your dealer or carrier of any damage or
4
1
missing parts. Verify that equipment is of size and model specified.
1
1
1
1
IMPORTANT SAFETY INSTRUCTIONS
1
1
1
When installing and using this electrical equipment, basic safety precautions should
1
1
always be followed, including the following:
1
1
1) READ AND FOLLOW ALL INSTRUCTIONS.
1
2) WARNING - To reduce risk of injury, do not permit children to use this product unless they
1
1
are closely supervised at all times.
1
1
3) WARNING - (For cord & plug connected units) risk of electric shock. Connect only to a
1
1
grounding type receptacle protected by a ground-fault circuit-interrupter(GFCI).
1
1 Contact a qualified electrician if you cannot verify that the receptacle is protected by a
1
GFCI.
1
1
4) WARNING - (For cord & plug connected units). To reduce the risk of electric shock,
1
1
replace damaged cord immediately.
1
5) WARNING - (For cord & plug connected units). To reduce the risk of electric shock do not
1
1
use an extension cord to connect unit to electric supply; Provide a properly located
1
1
outlet.
1
1
6) WARNING - (For hot tub and spa pumps). Do not install within an outer enclosure or
1
1 beneath the skirt of the hot tub or spa, unless so marked.
1
7) SAVE THESE INSTRUCTIONS
1
2
1
EMPU16022755
