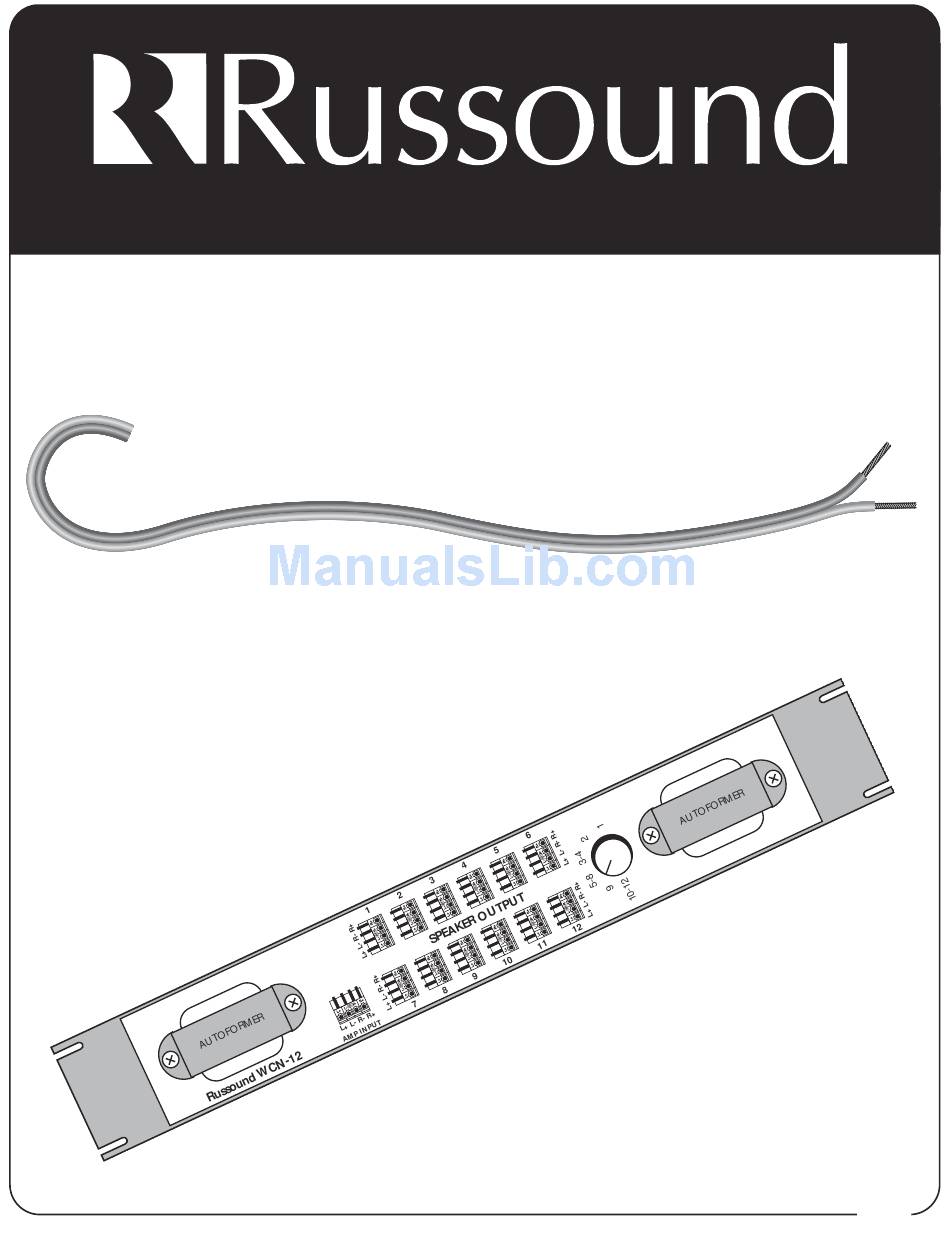

Page 1: Instruction Manual

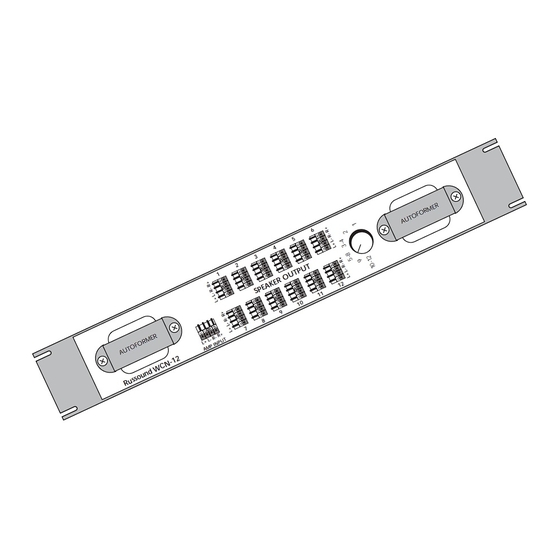

S Y S T E M S A / V D I S T R I B U T I O N & C O N T R O L S Y S T E M S WCN-12 Instruction Manual Impedance-Matching Audio Distribution System REV. 2... - Page 2 WCN-12. The switch must be set based on the following conditions: • If the amplifier and the speakers are both 4 ohms, set the rotary switch to the number of pairs of speakers connected to the WCN-12.
- Page 3 BLACK -- R- (right channel negative) — O N E H A N N E L M P L I F I E R RED -- R+ (right channel positive) OWER OWER DPA-4.8 Connection Diagram for Russound WCN-12 Audio Distribution Board (not to scale)
- Page 4 Russound. Damage to or destruction of components due to improper use voids the warranty. In these cases, the repair will be made at the owner’s expense. To return for repairs, the unit must be shipped to Russound at the owner’s expense, along with a note explaining the nature of the service required.
