Summary of Contents for Russound R290DS

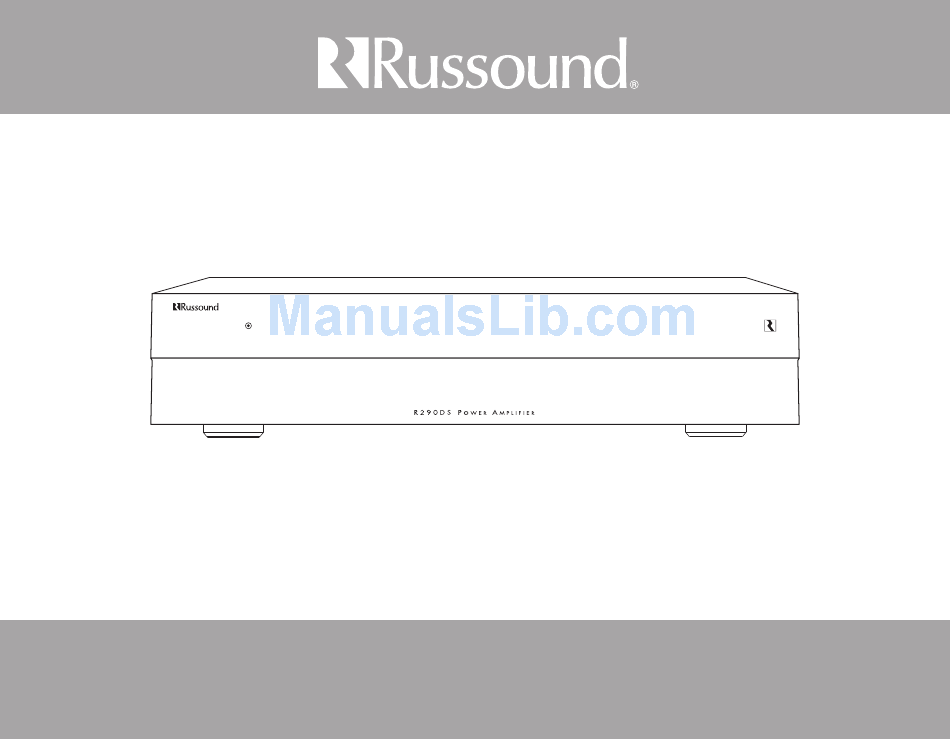

- Page 1 R290DS Dual Source Power Amplifier Installation Manual...
-
Page 2: Safety Instructions
The apparatus receptacles, and the point where they exit from the shall not be exposed to dripping or splashing liquids appliance. and no objects filled with liquids, such as vases, shall be placed on the apparatus. Russound R290DS Installation Manual... -
Page 3: Table Of Contents
Front and Rear Panels ......................5 System Configuration - Stereo Mode ................6 System Diagram - Stereo Mode..................7 System Configuration - Bridged Mode ................8 System Configuration - External Volume Control ............9 Technical specifications ......................10 Warranty ...........................11 Russound R290DS Installation Manual... -
Page 4: Product Overview
(e.g., large outdoor zones). Rack Mounting The R290DS is rated at 90 watts per channel into 8 ohms, and 110 watts into 4 The R290DS amplifier can be rack mounted using the included rack-mount ohms. With the Stereo/Bridge Mono switch in the Bridge Mono position, both ears and hardware to attach the ears to the amplifier. -
Page 5: Front And Rear Panels
Stereo / Bridge Switch Power Switch Left and Right Channel Controls 12V Trigger In / Out Delay Time Speaker Output Power Inlet & Fuseholder Speaker Level Line Input Switch Voltage Selector Speaker Level Input (Screw Down Connector) Russound R290DS Installation Manual... -
Page 6: System Configuration - Stereo Mode
Connect the audio line output from a stereo preamplifier or source to Speaker Input Line Input Audible Output the left and right Primary input jacks of the R290DS. If the output is only / Switch Position available as speaker level see Speaker Level Signal at right. Primary /... -
Page 7: System Diagram - Stereo Mode
SYSTEm DIAGRAm - STEREO mODE CAA66 Multizone Controller Line Out RCA Cable R290DS Ampli er Line Out RCA Cable Speaker Cables Source 8 Ohm Speakers Stereo Mode Configuration with Dual Sources (CD player signal takes precedence) Russound R290DS Installation Manual... -
Page 8: System Configuration - Bridged Mode
Set the Stereo/Bridge switch to Bridge Mono. Connect the line out from a preamplifier or source to the Left Primary input jack of the R290DS. Do not connect any input to the right side, it will be ignored. Connect the negative lead (-) of the speaker cable to the R(+) terminal. -
Page 9: System Configuration - External Volume Control
SYSTEm CONFIGURATION - ExTERNAL VOLUmE CONTROL System Configuration with External Volume Control The R290DS can be configured for large autoformer-based volume control systems/speaker selectors. R290DS Ampli er Line out from Source Autoformer-based SPEAKERS SPEAKERS SPEAKERS SPEAKERS RUSSOUND RUSSOUND Volume Control... -
Page 10: Technical Specifications
IEC 320 type connector with 3 terminal detachable power cord. Power Requirements: European Model: 230VAC 50Hz 1.2A IEC 320 type connector with 3 terminal detachable power cord. Dimensions: 17” W x 14”D x 4.125”H (43 x 35.5 x 10.5 cm) Weight: 17.2 lbs. (7.8 kg) Russound R290DS Installation Manual... -
Page 11: Warranty
WARRANTY Warranty Before returning a unit for repair, call Russound at (603) 659-5170 for a Return The Russound R290DS Power Amplifier is fully guaranteed against all defects Authorization number. Write this number on the shipping label and ship to: in materials and workmanship for two (2) years from the date of purchase. - Page 12 ©2008 Russound. All rights reserved. Russound, Inc. All trademarks are the property of their respective owners. 5 Forbes Road, Newmarket, NH 03857 Specifications are subject to change without notice. tel 603.659.5170 • fax 603.659.5388 Russound is not responsible for typographical errors or omissions. email: tech@russound.com www.russound.com 28-1318 07/08/08...
