R-Series
R235LS

2-Channel Power Amplifier

with Local Source Switching
User's Manual
On
Off
R
R 2 3 5 L S P
A
U S S O U N D
O W E R
M P L I F I E R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R-Series and is the answer not in the manual?

Questions and answers

Related Manuals for Russound R-Series

Summary of Contents for Russound R-Series

  • Page 1: Channel Power Amplifier

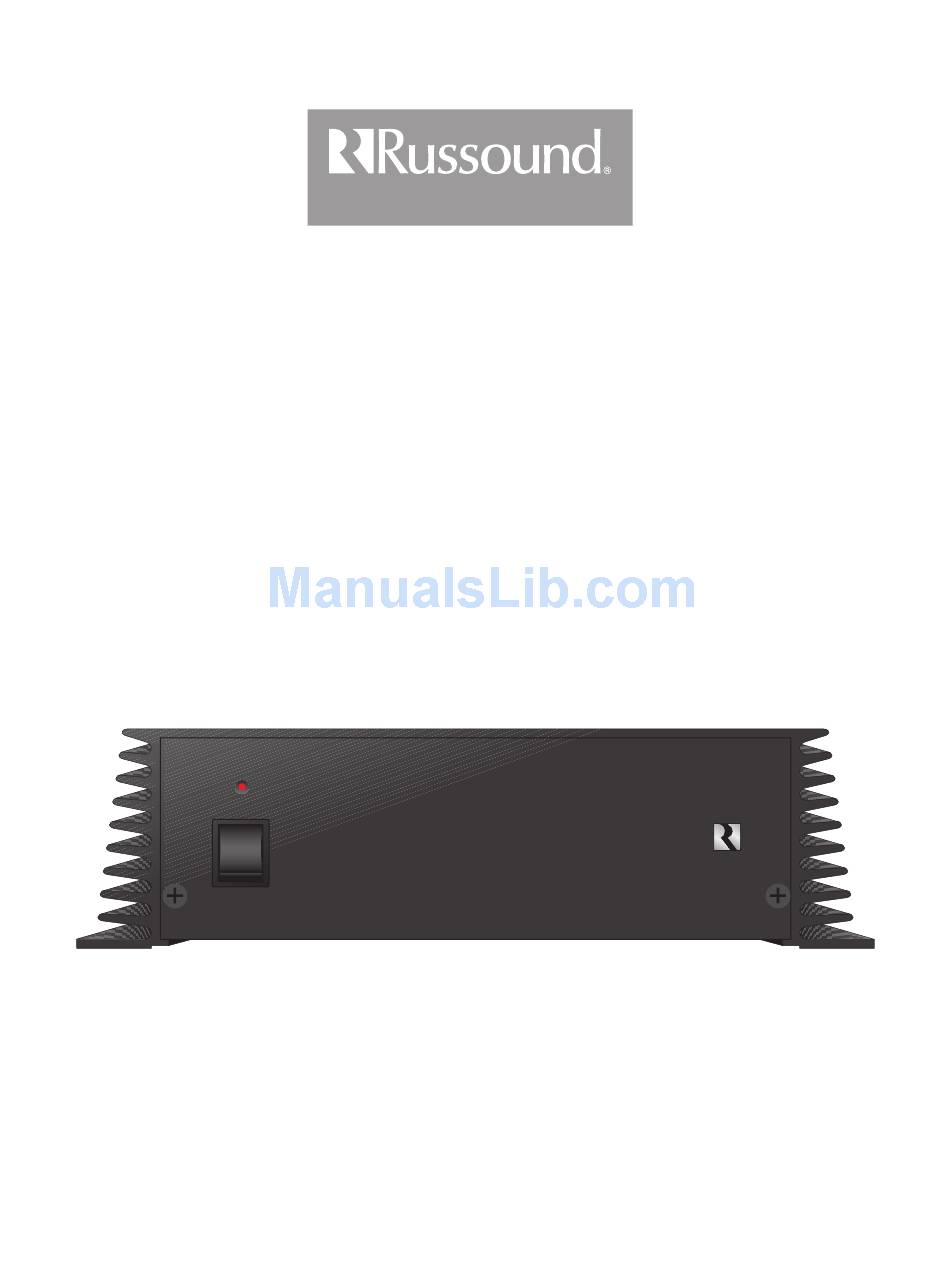

    R-Series R235LS 2-Channel Power Amplifier with Local Source Switching User’s Manual R 2 3 5 L S P U S S O U N D O W E R M P L I F I E R...

  • Page 2: Important Safeguards

    IMPORTANT SAFEGUARDS “WARNING” “ TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.” “CAUTION” “ TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER - SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALI- FIED SERVICE PERSONNEL.

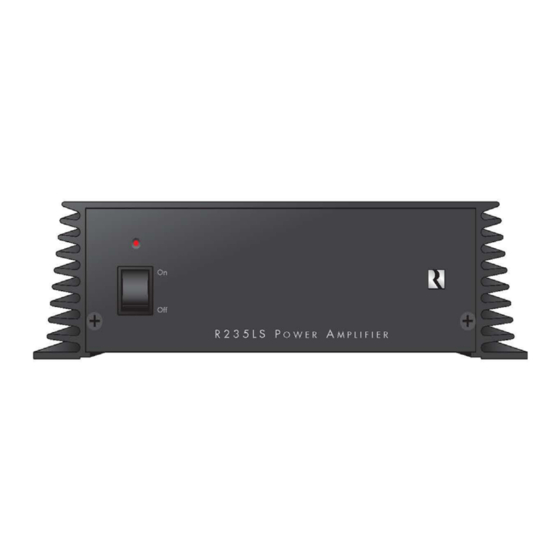

  • Page 3: Front Panel

    INTRODUCTION The Russound R235LS is a 2-channel power amplifier with automatic local source switching capability. The R235LS allows a local source (e.g., PC or TV in the bedroom) to automatically override the speakers in that particular zone of a distributed audio system. This can be accomplished with a variety of input/trigger options for versatility in many different applications.
  • Page 4 R235LS AMPLIFIER Line Input: The line audio input is a sensing input that will activate the amplifier when an audio signal from a source is present. Only the Left input is used for bridged mode operation. Gain Controls: Left and Right gain controls inde- pendently adjust the sound level for each channel.

  • Page 5: Bridged Operation

    8-ohm Speaker THERMAL PROTECTION All Russound amplifiers are designed with special circuit- ry to safeguard the amplifier under a thermal overload condition. Thermal protection mode can only engage when the unit has been run at high volume for extended...

  • Page 6: Possible System Configuration

    R235LS AMPLIFIER POSSIBLE SYSTEM CONFIGURATION The R235LS can be used as a single-source two-channel zone amplifier, or as a local-source amplifier that auto- matically switches between a default source (e.g., a Line Outputs Video Right Left A/V RCA Cables Optional video sensing whole-house audio distribution system) and a local source (e.g., a television set in the bedroom or a PC in the office).

  • Page 7: Specifications

    Dimensions: WARRANTY The Russound R235LS is fully guaranteed for two (2) years from the date of purchase against all defects in materials and workmanship. During this period Russound will replace any defective parts and correct any defect in workman- ship without charge for either parts or labor. For this warranty to apply, the unit must be installed and used according to its written instructions.
  • Page 8 R-Series R235LS 2-Channel Power Amplifier with Local Source Switching User’s Manual 5 Forbes Rd. Newmarket, NH 03857, USA Tel 603.659.5170 • Fax 603.659.5388 e-mail: tech@russound.com 28-1166 03/22/05...
